Blaze Audio PowerZone Connect 254 EU
4x60W 4-8 Ohm | 2x125W 100V 16 Ohm

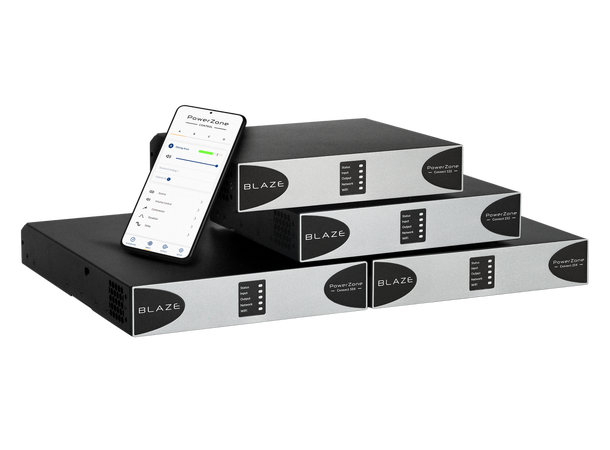

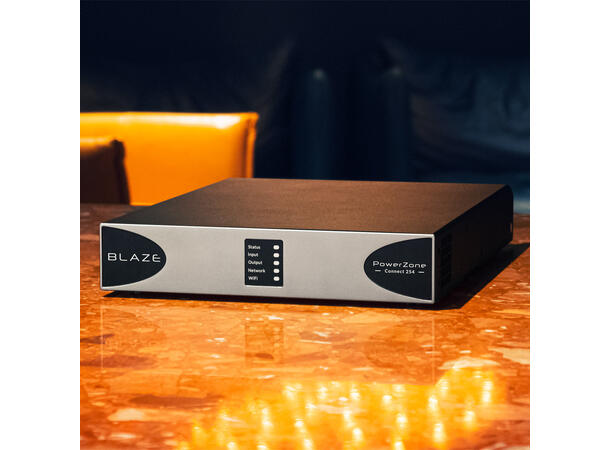

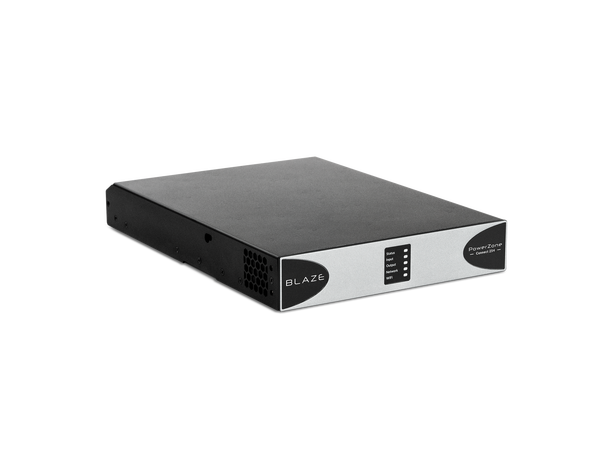

The PowerZone Connect 254 is a compact DSP amplifier in a half rack, 1U format. It’s network-connected, giving wired or wireless access to the PowerZone Control web app’s system setup and audio configuration menu. From here you can manage inputs/outputs, control sound zones and access professional tuning settings – all helping achieve impressive sound in the shortest time possible.

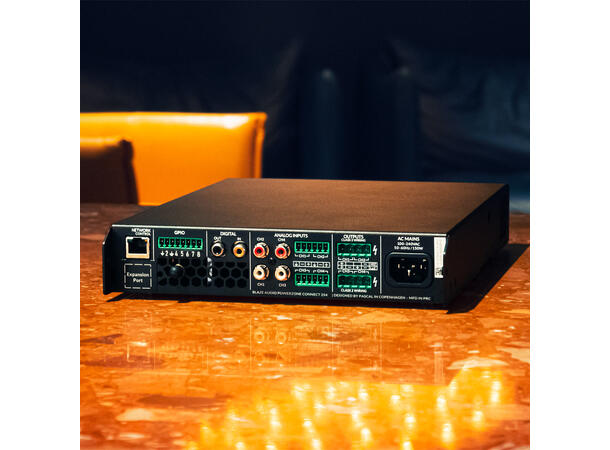

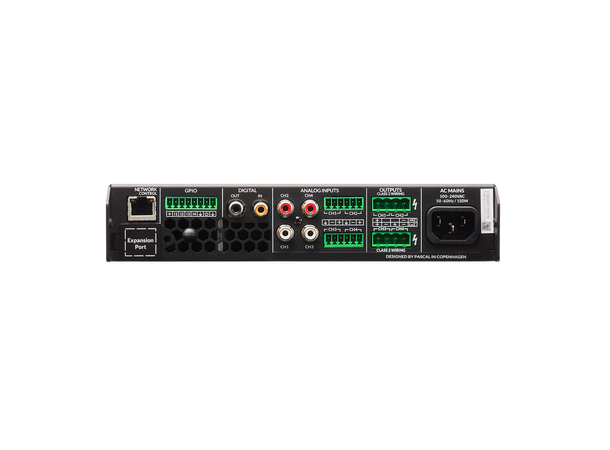

It can drive both conventional low impedance (4O to 16O) loudspeakers and constant voltage (70V/100V) transformer coupled loudspeakers. With four analogue inputs, and one stereo digital input, it has flexible output options – 4 x 60W in Lo-Z mode and 2 x 125W in Hi-Z mode. Automatic power sharing technology enables total available power to be shared proportionately between the outputs.
- Full matrix DSP amplifier with configuration and control via the simple WebApp
- Flexible power output with 4 x 60W / 2 x 125W and power sharing technology
- Route any input to any output channel – create sound Zones in minutes
- Ultra-compact form factor means it can be installed in spaces where others cannot
- Powered by Pascal UMAC™ Class-D technology

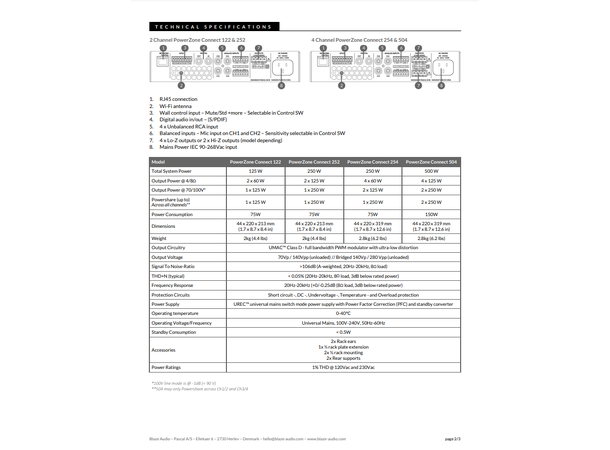

| Total
System Power |
250 W |
| Output Power @ 4/8O |
4 x 60 W |
| Output Power @ 70/100V |
2 x 125 W |
| Powershare (up to) |
Across all channels** 1 x 250 W |
| Power Consumption |
75 W |
| Dimensions |
44 x 220 x 319 mm |
| Weight |
2.8 kg |
| Output Circuitry |
UMAC™ Class D - full bandwidth PWM modulator with ultra-low
distortion |
| Output Voltage |
70Vp / 140Vpp (unloaded) |
|
Bridged: 140Vp / 280 Vpp (unloaded) |
| Signal To Noise Ratio |
> 106 dB (A-weighted, 20Hz-20kHz, 8O load) |
| THD+N (typical) |
< 0.05% (20Hz-20kHz, 8O load, 3dB below rated power) |
| Frequency Response |
20Hz-20kHz (+0/-0.25dB, 8O load, 3dB below rated power) |
| Protection Circuits |
Short circuit, DC, undervoltage, temperature, and overload
protection |
| Power Supply |
UREC™ universal mains switch mode power supply with Power
Factor Correction (PFC) and standby converter |
| Operating Temperature |
0-40°C |
| Operating Voltage/Frequency |
Universal Mains, 100V-240V, 50Hz-60Hz |
| Standby Consumption |
< 0.5 W |
| Power Ratings |
1% THD @ 120Vac and 230Vac |
Accessories
- 2x Rack ears
- 1x ½ rack plate extension
- 2x ½ rack mounting
- 2x Rear supports
