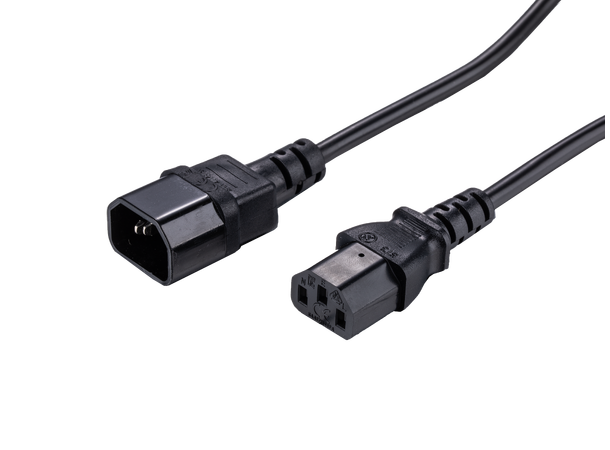

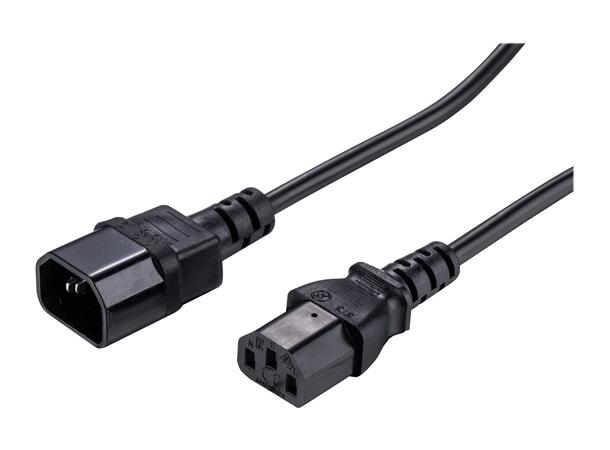

LinkIT Power C13/C14 10m
LSZH | 1,5 mm² | Black
Halogenfree power cable H05VV F3G (250V / 10A), VDE-tested, with double secured contact, plug according to EN 320-C14, connector according to EN 320-C14, straight contact at both sides. Sertifications: RoHs, CE, VDE
- Straight contact at both ends
- Connector according to IEC 60320
- Sertifications: CE, RoHs, VDE
- VDE-tested
Main Specifications
| Length (m) | 10 |
|---|
| Color | Black |
|---|
| Brand | LinkIT |
|---|
| Conductor material | 3 Wire |
|---|
| Connector type 1 | C13 (F) |
|---|
| Connector type 2 | C14 (M) |
|---|
| Number of conductors | 3 |
|---|
Extended Specifications
| NVP value | 69% |
|---|
| Jacket material | LSZH |
|---|
| Angle contact 1 | Straight |
|---|
| Angle Contact 2 | Straight |
|---|
| Voltage | AC 110-250V |
|---|
| Amperage | 10A |
|---|
| Conductor colour code | Blue, Brown, Green, Yellow |
|---|
| Gauge | 3 x 1.5 mm² |
|---|
| Operating Temperature | -20 - 70 °C |
|---|
| Halogenfree | Yes |
|---|
| With Earthing | Yes |
|---|
| EAN | 7072662003340 |
|---|
| Certifications | CE, REACH, RoHS, VDE |
|---|
