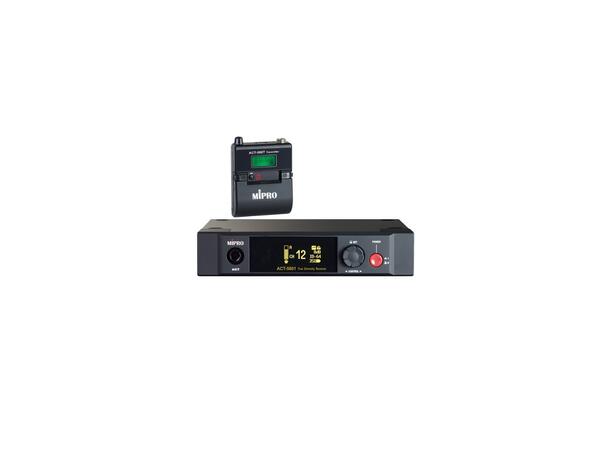

ACT-5801 5 GHz Digital Single-Channel Receiver

The receiver in full-rack metal chassis has antenna connectors on the rear panel for connecting the external antenna system. The receiver in half-rack metal chassis has a built-in high efficiency antenna on the front panel.

• MIPRO’s unique control panel equips a graphic OLED, providing a larger field of view without a blind angle.
• Stable digital modulation circuitry. All frequencies are located in one frequency band.
• Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.
• ACT-5814A / 5812A are equipped with TNC connectors for daisy chain output which can be daisy-chained up to three receivers.
• MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
• Effectively avoids RF interference from UHF, Bluetooth, Wi-Fi and all 2.4 GHz communication products.
• Presets Group A and B. There are 12 interference-free channels in Group A and total of 24 interference-free channels in Group B1 & B2.
• Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
• External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
• Pairs with ACT-580H handheld and ACT-580T bodypack transmitter.
• All are designed and made in Taiwan to ensure high quality and value.


Presets Group A and B. There are 12 interference-free channels in Group A and a total of 24 interference-free channels in Group B1 & B2. 64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel being interfered on the same occasion.

ACT-580T 5 GHz Digital Bodypack Transmitter

• Newly designed compact and lightweight housing for easy wearing.
• The panel integrates a power switch and a backlit LCD for easy operation and clear view of all operating information.
• The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
• The high dynamic range audio input prevents saturation distortion and matches up low and high input impedance.
• Mute button and remote-control jack allow quick setting of MUTE function.
• The patented battery compartment can be inserted with two AA-type batteries or one Li-ion rechargeable battery, charging via USB Type-C with the foolproof and safe charging circuit.
• A belt clip for easy wearing.
