Audac Basemikrofon APM101mkII Paging Bord Electret 1 sone RJ45 Bus

Audac Basemikrofon APM101mkII

Paging Bord Electret 1 sone RJ45 Bus

Varenr: 112919
Alt. varenr: APM101MK2
BeskrivelseEkstern InfoTeknisk infoAlternativer
Beskrivelse

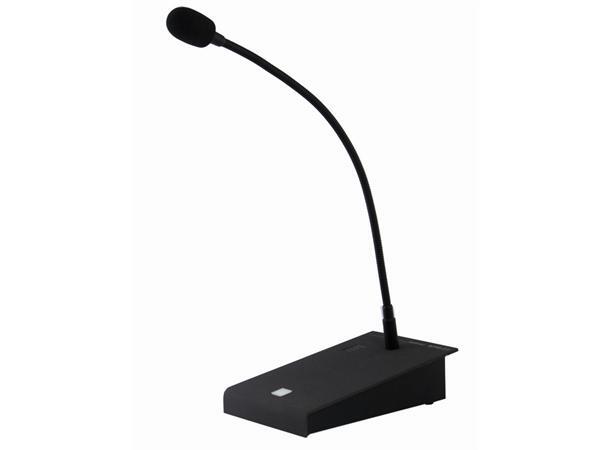

Audac Desktop Microphone APM101mkII



The APM101 is a digital paging microphone for 1 zone which is equipped with a condenser element with cardioid characteristic, mounted on a 30 cm gooseneck. By means of a built-in compressor / limiter, the output level of the microphone signal is constantly maintained. The status of the reproduced signal is indicated on the front panel to ensure the speaker that the message is clear and audible in all situations. The console has a Push To Talk button.



SYSTEM SPECIFICATIONS
Polar PatternCardioid (unidirectional)
Sensitivity (1W/1m)-42 dB
Buttons1 x programmable PTT (push-to-talk)
Indicators3 Colours illuminated push button
Level & status indication LED’s
Internal storage10 minutes audio or messages spread over max 30 files
ConnectorsRJ45 (data + Power)
Connection standardTIA/EIA T568B
MicrophoneTypeBack electret condenser
Gooseneck length350 mm
FrequencyResponse (± 3 dB)100 Hz - 20 kHz
PowerConsumption4.8 W (max.)
Supply24 V DC (min. 16V DC)
Max. cable lengthWithout external PSU113 m
With external PSU300 m



PRODUCT FEATURES
Dimensions120 x 55 x 190 mm (W x H x D)
Weight1.350 kg
Data protocolRS-485
Audio protocolAnalogue
Digital (configurable)
ColoursGrey metallic front panel
ConstructionSteel
Required cablingAnalogUTP CAT5E
DigitalUTP CAT6
AccessoriesIncludedWindscreen (MWS05/B)
OptionalARJ03P junction box
CP45ARJ RJ45 junction plate
PSD24x external Power supply
