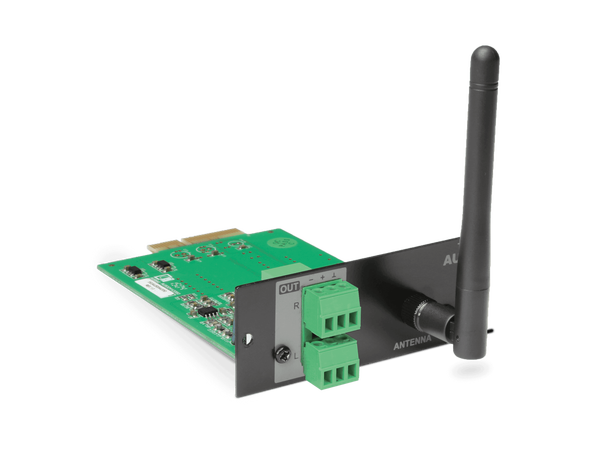

Audac Audio Sourcecon BMP40

The BMP40 receiver offers wireless connection possibilities for audio playback from any Bluetooth compatible portable device including laptops, smartphones, tablets or any other. A long range transmission distance (up to 30 meters) is possible depending on the installed environment.

Device discovery and pairing protection with a storage up to 8 authorized devices shall prevent playback from unauthorized users in public area’s. All media information such as track and artist information can be retrieved from the BMP40 (if supported by the connected device), while playback control is possible from the connected device or remote control.

SYSTEM SPECIFICATIONS

Connection: SourceCon™ interface card slot

Inputs: Bluetooth receiver

Outputs Type: Balanced stereo line outputs (3-pin Euro Terminal Block (Pitch - 3.81 mm))

Level: 8 dB ~ 82 dB

Bluetooth specification: V4.1

Class 2 output power

THD+N (@ 1 kHz)  < 0.07%

Crosstalk (@ 1 kHz) 80 dB

Power Consumption: 0.5 W

PRODUCT FEATURES

Dimensions: 87 x 34.5 x 114 mm (W x H x D)

Weight: 0.075 kg

Mounting: SourceCon™ interface card slot

Accessories: Included 2.4 GHz bluetooth antenna (SMA)

Optional: BAE100 Antenna extender kit
