Audac Wallpanel WP225/B Black Universal

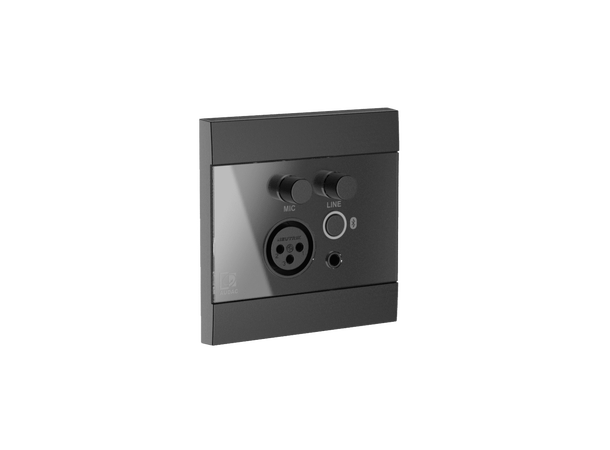

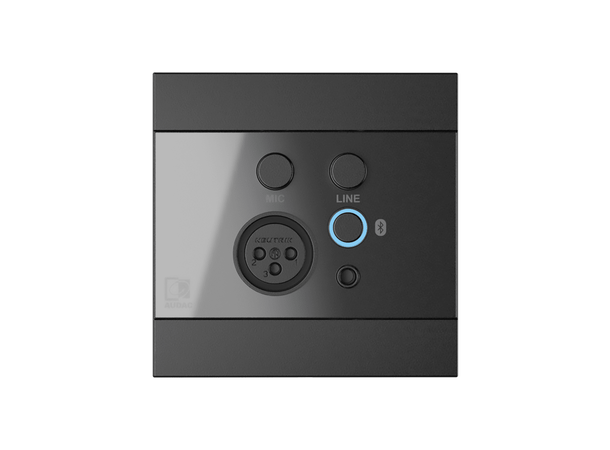

The WP225 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

It also features a Bluetooth receiver and pair button with a handy LED indicator to check if its in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc...

The WP225 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.

SYSTEM SPECIFICATIONS

Control Individual input level control for Mic & Line

Bluetooth pairing button with LED

Phantom power (DIP switch on rear)

Low-cut (Mic) enable / disable (DIP switch on rear)

Output level +12 dBV enable / disable (DIP switch on rear)

Bluetooth enable / disable (DIP switch on rear)

Mono / Stereo (DIP switch on rear)

Connection 3.5 mm jack input (Stereo line input)

Female XLR input connector (Microphone input)

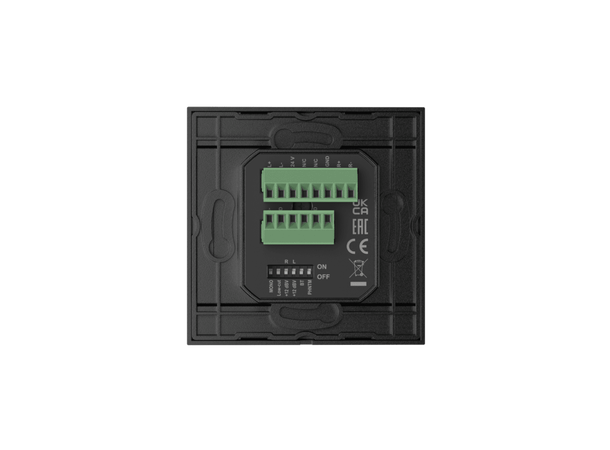

6-pin terminal block (3.81 mm pitch) input connection on rear (duplicated line & mic inputs)

8-pin terminal block (3.81 mm pitch) output connection

Outputs Level +12 dB

Inputs Wall Panel Type 3.5 mm jack stereo line input connection

XLR microphone input connection

Mic & Line inputs on rear for permanent connections

PRODUCT FEATURES

Dimensions 80 x 80 mm (W x H) (Remote wall panel)

Colours Black (RAL9005) (WP225/B)

White (RAL9003) (WP225/W)

Front finish Elegant ABS front panel with glass

Accessories Optional Flush mount Installation boxes Flush mount box for 45 x 45 mm wall panel - Solid wall - WB45S/FS

Flush mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG
