Audac Høyttaler WX802MK2/OB Sort Par Toveis 8" 100V 60W 16Ohm 70W IP55

Audac Høyttaler WX802MK2/OB Sort Par

Toveis 8" 100V 60W 16Ohm 70W IP55

Varenr: 128685
Alt. varenr: WX802MK2/OB Par
✉ Send meg mail når varen er på lager
BeskrivelseEkstern InfoTeknisk infoTilbehørAlternativer
Beskrivelse

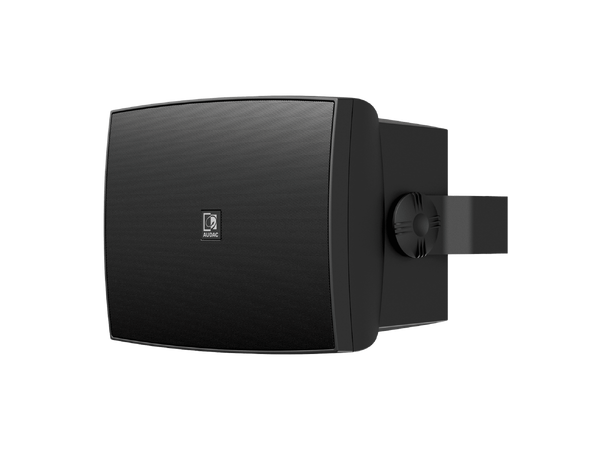

The WX802/O is a powerful 2-way performance speaker which is specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It lends itself to a wide variation of outdoor applications, ensuring a clear and powerful sound reproduction. Hereby, the WX802/O is the perfect companion for outdoor applications where clear background music is desirable throughout the day and a more powerful sound with deeper bass is necessary when the party erupts after sunset. The sound is coming from a weatherproof treated 8” low-frequency loudspeaker in combination with a 1” dome tweeter which is built in an aesthetical and solid synthetic enclosure.

The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX802/O vertically as well as horizontally.

Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum front grill allows letting the moisture flow out when condensation occurs. The waterproof AWX-5 connector at the backside makes sure that this speaker meets the IP55 standards.

VARIANTS
WX802MK2/OB - Outdoor black version
WX802MK2/OW - Outdoor white version

SYSTEM SPECIFICATIONS
Speaker type 2-way
Max. Power 140 W
RMS Power 70 W
Impedance 16 ?
Sensitivity (1W/1m) 89 dB
Ingress Protection rating IP55
Connectors Waterproof AWX-5 connector
Sound Pressure (Max. W/1m) @ 16 ? 108 dB
@ 100 V 106 dB
Frequency Response (± 3 dB) 60 Hz - 17 kHz
Range (-10 dB) 50 Hz - 20 kHz
Crossover Frequency 2.4 kHz
Type Passive built-in
Dispersion Horizontal 110°
Vertical 110°
Drivers HF 1”
LF 8”
Line Transformer Tappings 1 83 ? - 100 V / Not used - 70 V / 60 W
2 167 ? - 100 V / 60 W - 70 V / 30 W
3 333 ? - 100 V / 30 W - 70 V / 15 W

PRODUCT FEATURES
Dimensions 270 x 360 x 215 mm (W x H x D)
Weight 7.500 kg
Operating temperature -25 °C ~ 70 °C
Construction ABS
Mounting & handling Mounting bracket
Front finish Aluminium grill
Colours Black (RAL9005) (WX802MK2/OB)
White (RAL9003) (WX802MK2/OW)
Accessories Included Mounting bracket
5-pin connection cable (70 cm)
Optional AU570120005 - 5-pin cable 0.5 m
AU570120025 - 5-pin cable 2.5 m
AU570120050 - 5-pin cable 5 m
