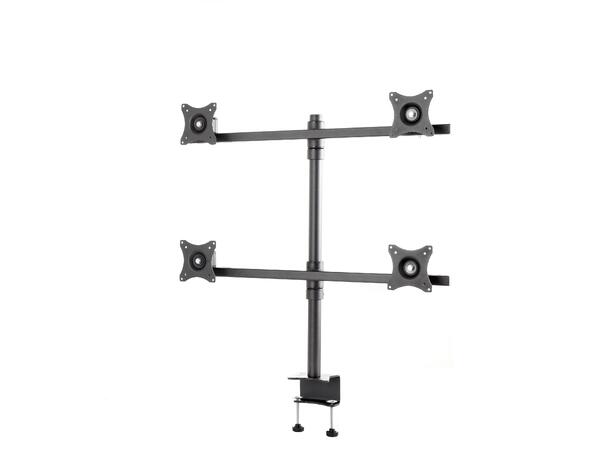

Edbak Desktop Mount SV07 Quad 2x2 19-27"
100x100 | 40kg | 750 x 157 x 800 mm
The SV07 desk mount for four 19"-27" screens is designed for users who perform work related to all-day screen operation. Screen tilting adjustment by -50°/+50° and 360° right-left screen rotation allow you to position the screens to suit the user’s individual needs and ensure excellent comfort during office work. Two types of desk fastenings of the mount are suitable for any installation, increasing its functionality. SV07 is a perfect choice for those who value ergonomics when working with a computer and spending many hours at the desk, including the industry, transport and monitoring centres.

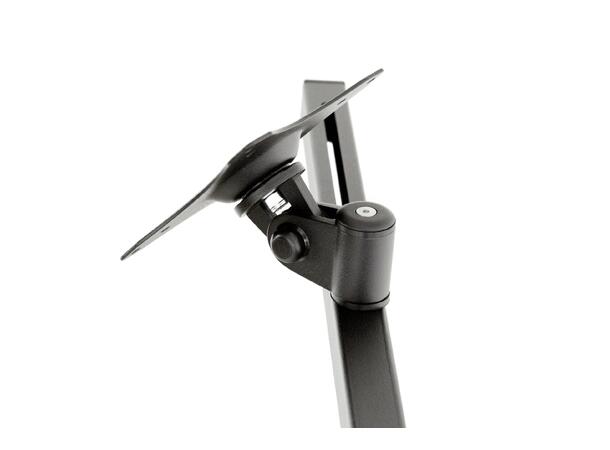

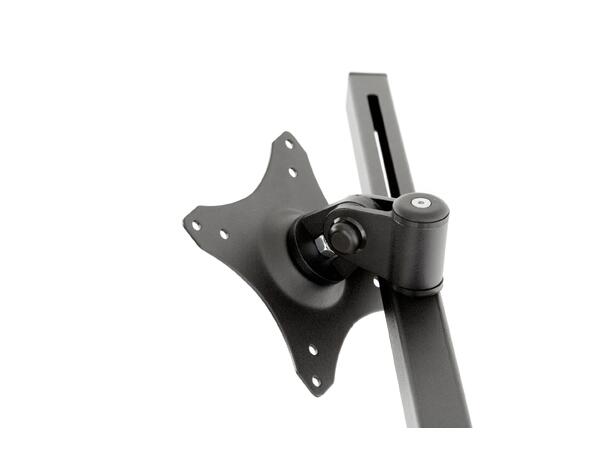

- Screen tilting adjustment by -50° to +50°
- 360° right-left screen position adjustment

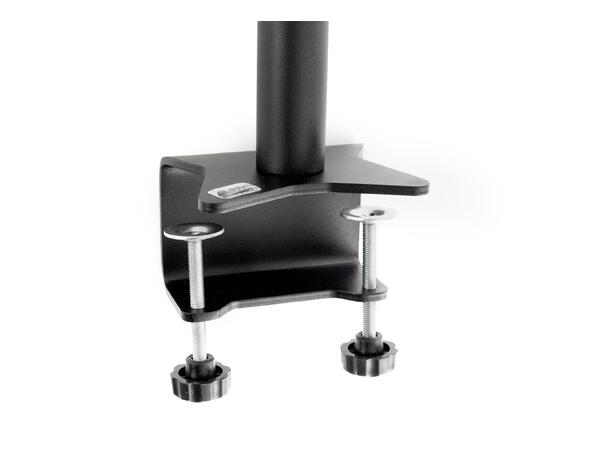

- 2 types of desk fastenings included

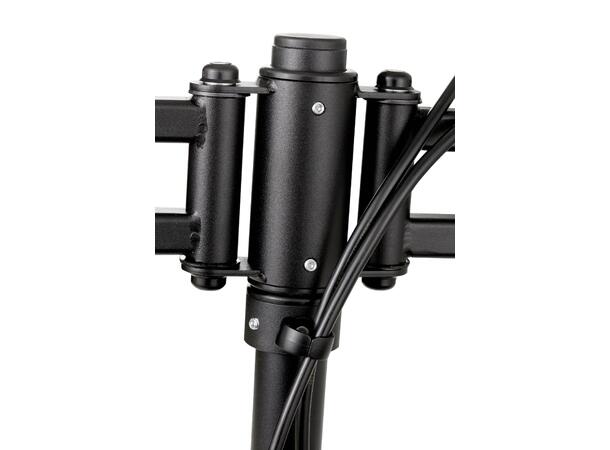

- Cable management system
- Modern design
- Simple and quick installation
| Index |
SV07 |
| Category |
Desktop
Monitor Mounts |
| Product group |
Display
Mounts |
| Color |
Black |
| Warranty |
Limited
5-year’s |
| Number of screens |
4 |
| Minimum screen size |
19? |
| Maximum screen size |
27? |
| Forward tilting |
-50° |
| Forward tilting |
+50° |
| Arm rotation |
360° |
| Left-right rotation |
360° |
| Maximum load |
40
kg |
| VESA Mounting Compatibility |
75×75
up to 100×100 |
| Product
dimensions |
W:
750 mm D: 157 mm H: 800 mm (W: 29,53? D: 6,18? H: 31,50?) |
| Product
weight |
7
kg (15 lb) |
| Max. distance from mounting
surface |
400
mm (15,75?) |
| Min. distance from mounting
surface |
100
mm (3,94?) |
| Max. mounting pattern |
100
mm x 100 mm |
| Min. mounting pattern |
75
mm x 75 mm |
| SAP Index |
WUBI-SV07c-B |
| EAN Code |
5908252960545 |
| Color |
Black |
| Package Dimensions |
1000
x 210 x 160 mm (39,37 x 8,27 x 6,30?) |
| Package Weight |
8,5
kg (19 lb) |
| Country of origin |
Poland |
