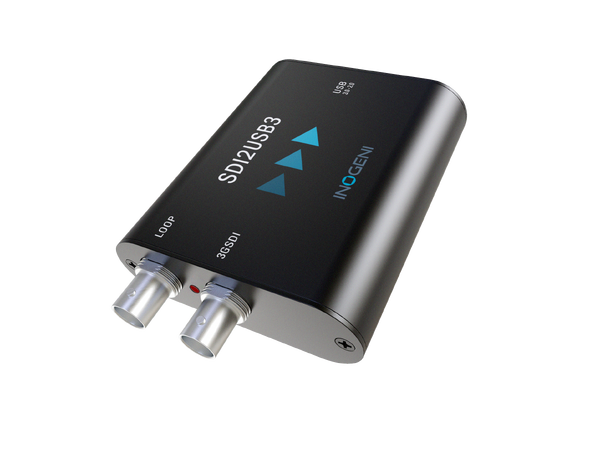

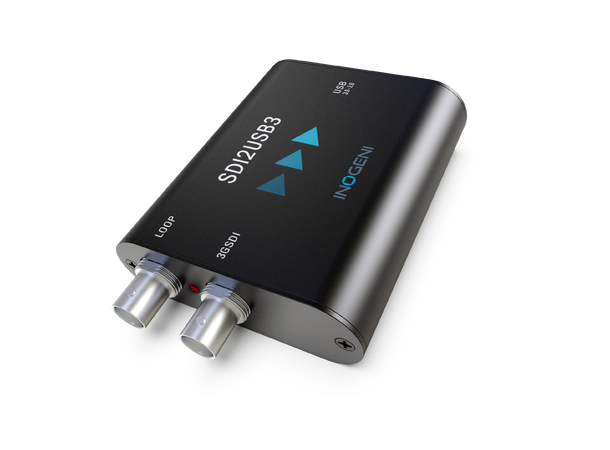

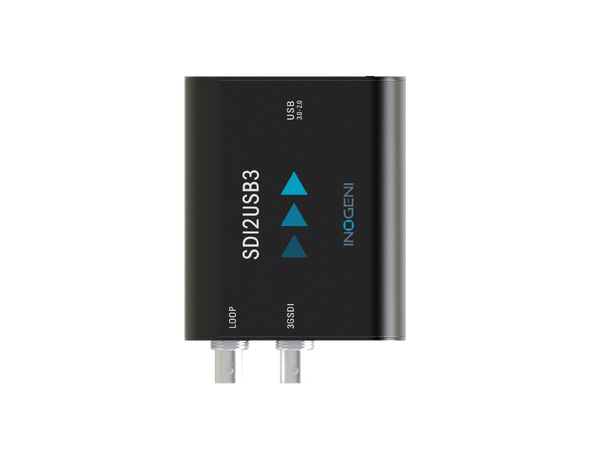

Inogeni SDI2USB3 SDI to USB 3.0
SDI Capture Unit
INOGENI’s SDI2USB3 video converter enables 3GSDI cameras to connect with computers, laptops or CODECs—without glitches or complicated setups.
- 3GSDI professional video capture to USB 3.0
- Highly stable signal

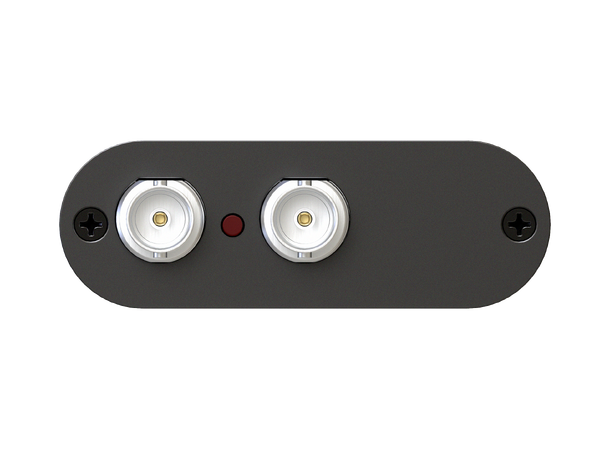

- Active loop output connector
- Cost-effective professional camera converter solution that is reliable and simple to install and connect (no driver required)
- Compact and robust design with its aluminium enclosure
- Designed and manufactured in Canada
- ClickShare compatible
- Zoom Certified (read the blog)
- TAA-compliant,
How it works

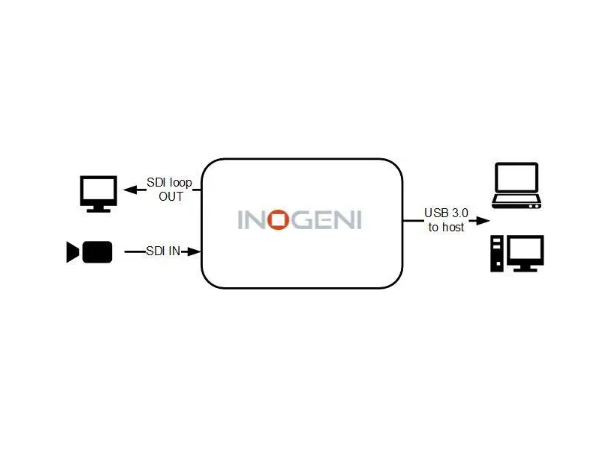

The SDI2USB3 professional video converter features a 3GSDI input with active loop output and supports SD and HDTV video formats. Compact and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution.
UVC-compliant, it works with all DirectShow compatible software. The SDI2USB3 video converter supports 1080p resolution up to 60 fps.
Features
Discover the features of the SDI2USB3 professional video converter that offers a hassle-free user experience:
- 3GSDI video capture to USB 3.0
- Active loop output connector
- Supports 1080p, 1080i, 720p, 480p, 576p, NTSC and PAL at up to 60 fps
- All SD and HD resolution signals are converted to 4:2:2 8-bit color space over USB 3.0
- Embedded audio extraction and output as two-channel LPCM
- Digital Fluid technology: Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion
- Customizable video processing functions
- Supports multiple devices on the same PC
- Compatible with Barco ClickShare Conference
