Mipro ACT-311(II)/ACT-32H Håndsett 8A-D (822~832MHz) inkludert ladbare batterier

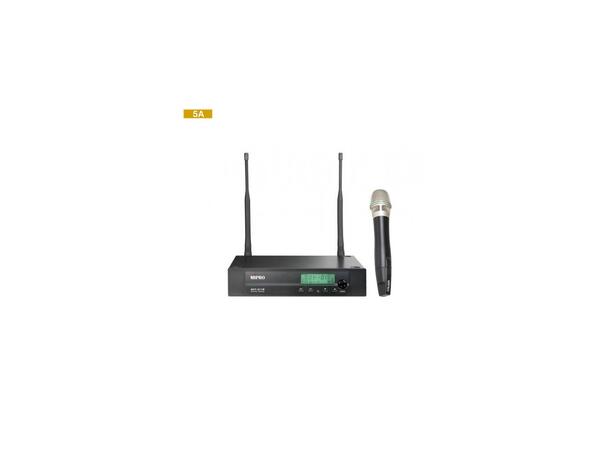

ACT-311(II)/ACT-32C komplett trådløst mikrofon sett, mottager med håndmikrofon/sender ACT-32HC.
Mipro ACT-311(II)
- CPU-controlled diversity receiving. "PiloTone & NoiseLock" dual-squelch circuit eliminates signal drop-out and minimizes interference.
- All controls are intuitive and easily operated via electronic buttons to prevent accidental operation.
- Industry’s only RF interference warning indicator for proper adjustments of the SQ level. Increase sensitivity to extend receiving range; decrease the sensitivity to reduce interference.
- Auto Scan function allows quick search for an interference-free working channel. World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
- Output level is pre-adjusted to equal the microphone capsule’s sensitivity. Switchable output levels for the best sound quality options.
- Receiver provides bias voltage for MIPRO antenna systems to enhance reception range and signal stability.
ACT-311 1/2U Single-Channel Receiver
Features
? EIA standard metal chassis equipped with a green backlit LCD
screen and electronic buttons on the front panel. The LCD screen will
automatically turn bright when receiving a signal to identify “Working”
and “Standby” mode.
? The most reliable 24 MHz narrowband high dynamic range receiving
circuit greatly decreases intermodulation distortion and increases
interference-free compatible channels.
? Industry’s first "PiloTone & NoiseLock" circuits and the RF
interference warning indicator for proper adjustments of the SQ level
to avoid interference.
? MIPRO Auto Scan and ACT™ function provides the transmitter’s
frequency with precise and rapid sync to the receiver.
? There are 7 preset groups with a total of 80 pre-saved frequencies.
The user-defined group allows users to choose 8 working channels
from 961 available frequencies.
? Each channel has separate audio output with 3 switchable levels and
presets the output level equals the sensitivity of the microphone
capsule at 0 dB. All is to ensure the microphone operates within
proper sensitivity and dynamic range, free from distortion.
? Designed and made in Taiwan ensures high quality and value.
Specifications
Chassis EIA-Standard 19" 1/2U metal chassis
Frequency Range UHF 480 ~ 934 MHz (country dependent)
Bandwidth 24 MHz
Receiving Mode Diversity receiving
Sensitivity 10 dBµV @ S/N > 80 dB
Frequency Response 50 Hz ~ 18 kHz
Dynamic Range > 106 dBA
Audio Output Balanced: +16dB / 0dB/ -6dB; Unbalanced: +10dB / 0dB/ -6dB
Antenna Detachable. 50O TNC female connector provides bias for the antenna systems.
Power Supply External 100~240V AC switching power supply
Dimensions 210 × 44 × 165 mm (W×H×D)
Weight Approx. 0.8 kg
Note Refer to the actual product in the event of product discrepancy.
Channel | Single | |
| Chassis | EIA Standard 19 " 1/2U metal chassis | |
| Display | Green backlit LCD with automatic bright (working) and dim (standby) displays during performance. | |
| Frequency Range | UHF 480 ~ 934 MHz (country dependent) | |
| Bandwidth | 24 MHz | |
| Deviation | < ± 40 kHz | |
| Receiving Mode | CPU-controlled diversity receiving | |
| Sensitivity | 10 dBµV at S/N > 80 dB | |
| S/N Ratio | > 106 dB(A) | |
| T.H.D. | < 0.5% @ 1 kHz | |
| Frequency Response | 50 Hz ~ 18 kHz | |
| Squelch | “PiloTone & NoiseLock” dual-squelch circuit | |
| Audio Output | Balanced XLR & Unbalanced Ø 6.3 mm | |
| Max. Output Level | Balanced: 0 dBV ; Unbalanced: +10 dBV / 0 dBV | |
| Power Supply | 12 ~ 15 V DC, 1A | |
| Dimensions (W × H × D) | 210 × 44 × 180 mm / 8.3 × 1.7 × 7.1 " | |
| Net Weight | Approx. 0.8 kg / 1.8 lbs |
Mipro ACT-32HC
- Innovatively designed metal housing in MIPRO’s distinctive aesthetic and ergonomic style.
- Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers. The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound. The upper grille is easy to detach for cleaning and hygiene practice.
- Patented capsule suspension design virtually eliminates vibration and handling noises.
- Built-in high-efficiency antenna.
- Backlit LCD displays all operational parameter information.
- World’s first ACT™ function provides precise and rapid frequency sync to the receiver.
Housing | Black-color rugged plastic housing | |
| Display | LED indicator for battery status. | |
| Frequency Range | UHF 480 ~ 934 MHz (country dependent) | |
| Bandwidth | 24 MHz | |
| RF Output Power | 10 ~ 30 mW (country dependent) | |
| Deviation | < ± 40 kHz | |
| Spurious Emissions | < -55 dBc | |
| Gain | 0 dB = input microphone sensitivity. High-fidelity modulation circuit sustains high SPL without distortion. | |
| Dimensions (Ø × L) | 51 × 250 mm / 2 × 9.8 " | |
| Net Weight | Approx. 251 g / 8.9 oz | |
| Battery | 1 × ICR 18500 lithium battery | |
| Operating Time | Min. 13 hours | |
| Charger | MP-80 / MP-8 |
