Multibrackets Veggfeste Push HD 90

Maks VESA 900x400, 90 Kg

Varenr: 115129
Alt. varenr: 7350073731749
BeskrivelseEkstern InfoTeknisk info
Beskrivelse

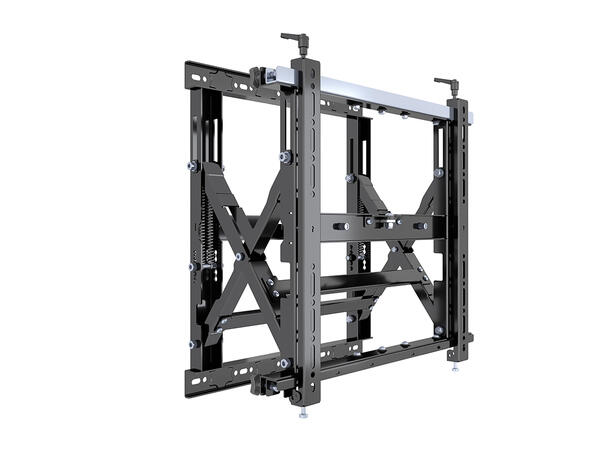

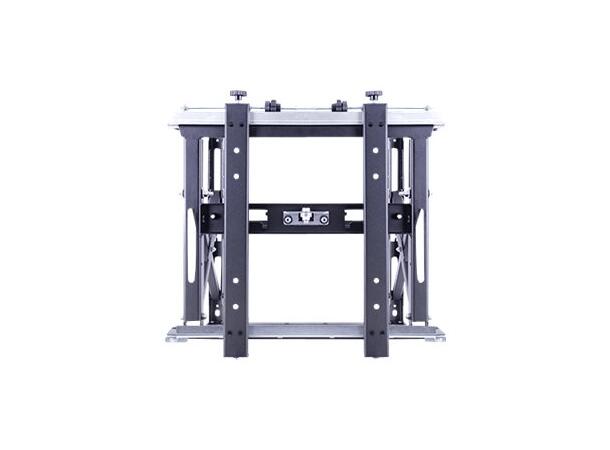

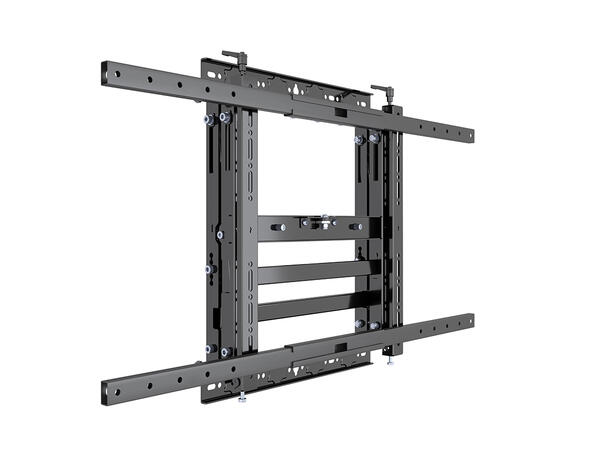

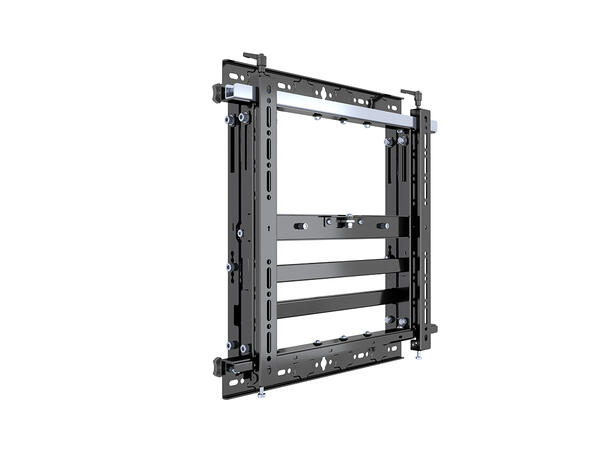

Multibrackets M Public Video Wall Mount Push Max 90kg - Wall mount for LCD / LED panel - iron - black - maxload: 90 kg - screen size: 50" - 95"
A full-service Quick Release Video Wall Mount for flat panel displays up to 95"

The M Public Video Wall Mount Push Max 90kg especially made for large displays and it might just be one of the markets most innovative and easy to install video wall mounts available. With numerous post installation possibilities and a tailored pantograph alignment system this might be the most easy to use, yet most powerful video wall mount system you have ever seen.

With the market for Video Wall installations growing at a fantastic pace, the need for a high quality, affordable and installer friendly mounting equipment has become in the need by many. Our M Public Video Wall Mount Push HD is a video a wall solution quick to install, and easy to configure. Made especially for video wall applications. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. Making it an installers dream.

Easy-access to your after-service

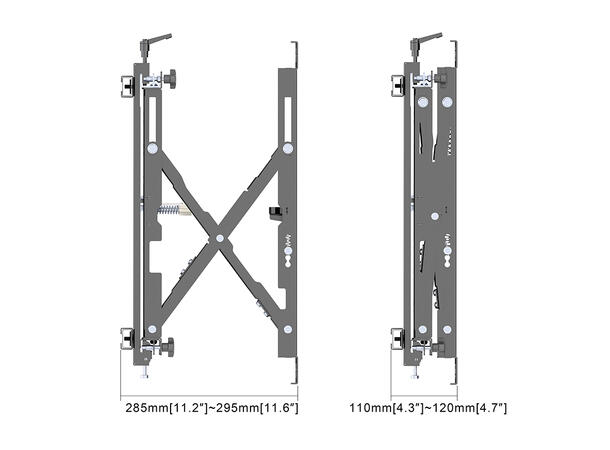

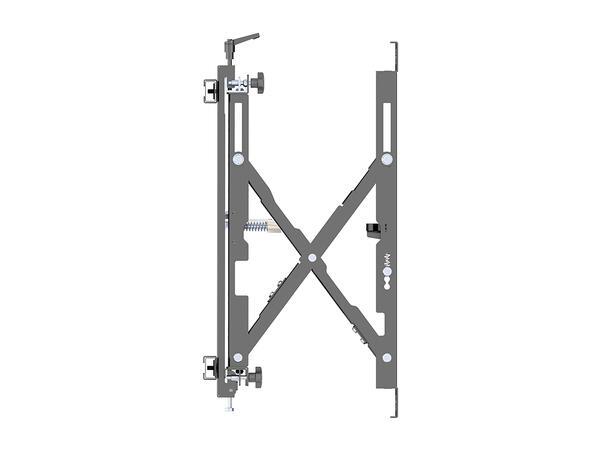

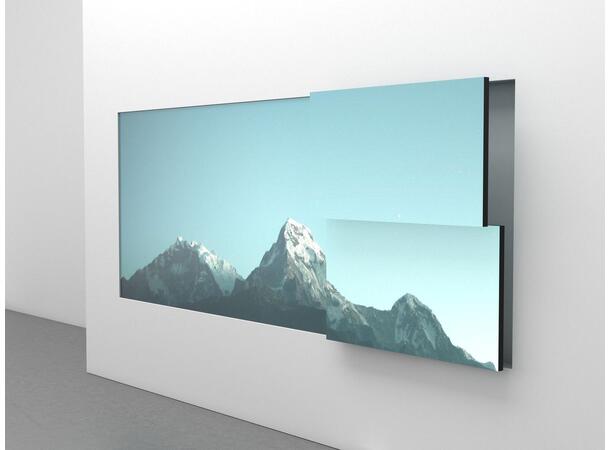

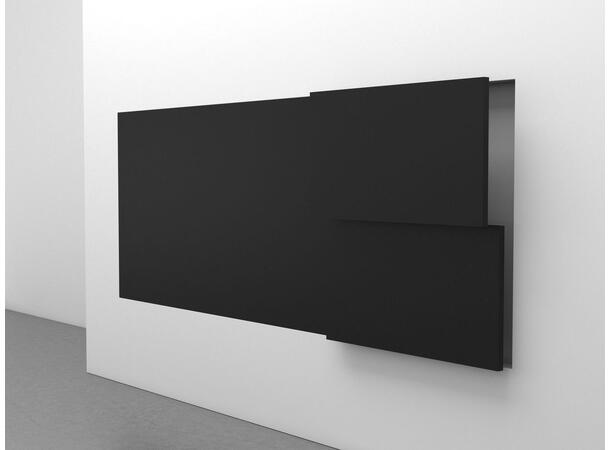

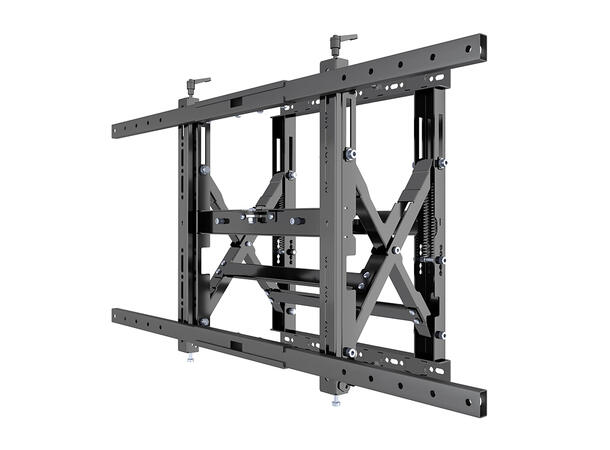

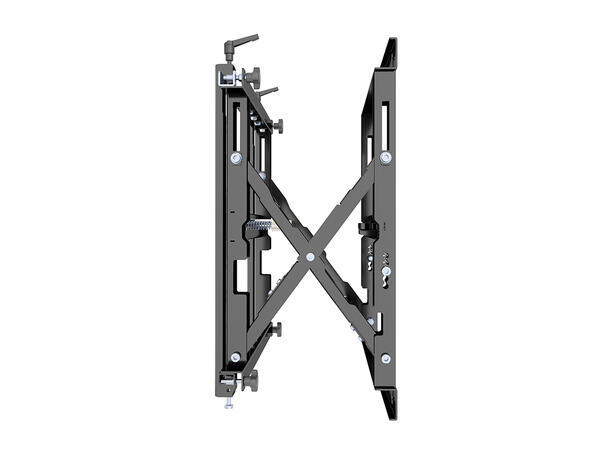

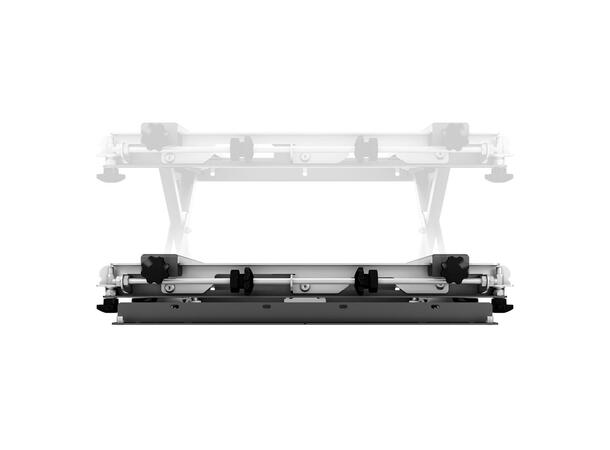

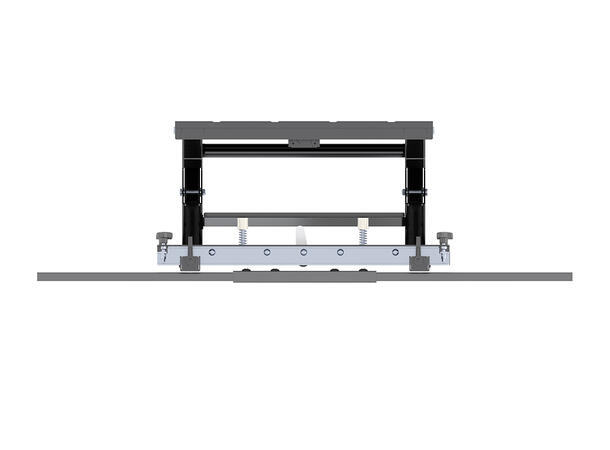

The "Pop out" feature gives easy-access to any display for quick serviceability. This is often one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Simply push against the screen to release the lock, then the screen will pop out, you do not need to remove any other screens to access a center screen for maintenance or when placed in recessed areas. The pop out feature is handled by its scissor arm construction expanding out. Of course the screen is as easily pushed back into place after maintenance is finished.

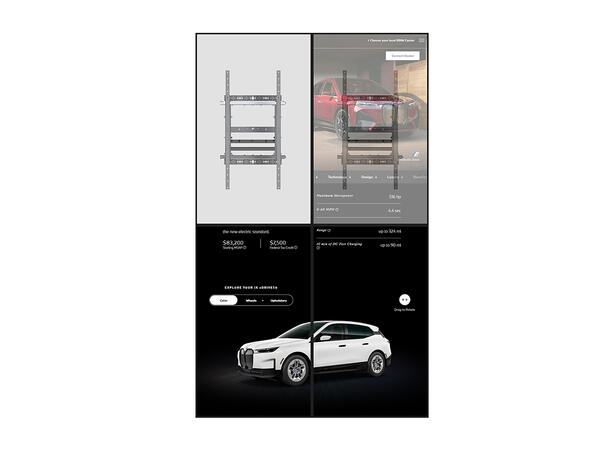

 Picture showing Samsung 95MEC

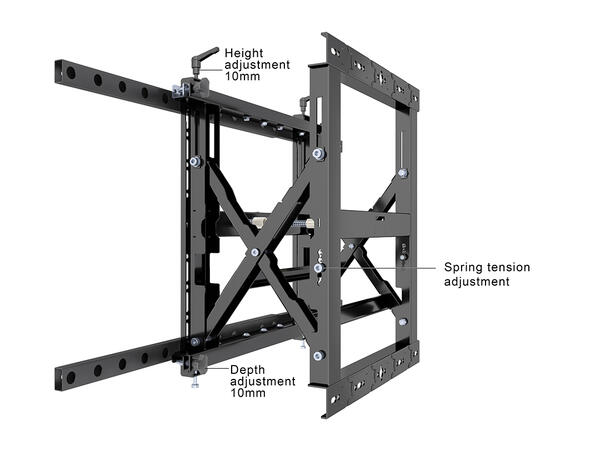

8 knobs making detailed adjustments an ease
With the built in fine tune adjustments each of the M Video Wall Push Max 90kg can be adjusted individually to match "its neighboring screens". By 8 knobs the screens can be adjusted in depth, side and height. What before could take hours for an installer to measure and re install, is now fixed in a matter of minutes. Truly an installers dream come true.

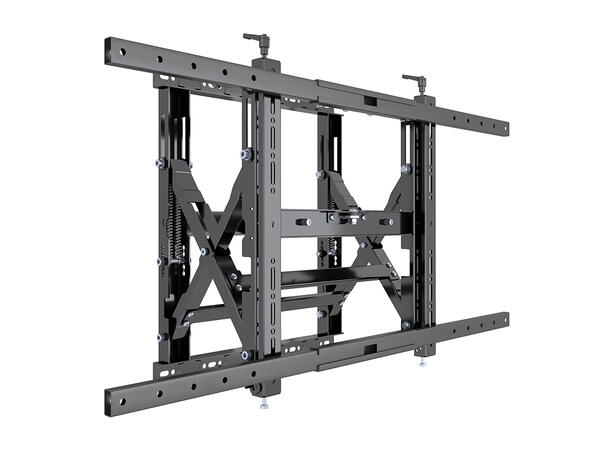

Super heavy duty construction
The M Video Wall Push Max 90kg is an iron structure with epoxy painting, holding screens up to 90kg in "pop outed" position. We think this may just be the strongest video wall mount on the market, making continues service and usage of the mounts easy.

M Motorized Public Floorstand series is proudly made in EU


Highlights
  • Especially designed for  large size pubic displays.
  • Iron structure with max load of 90kg

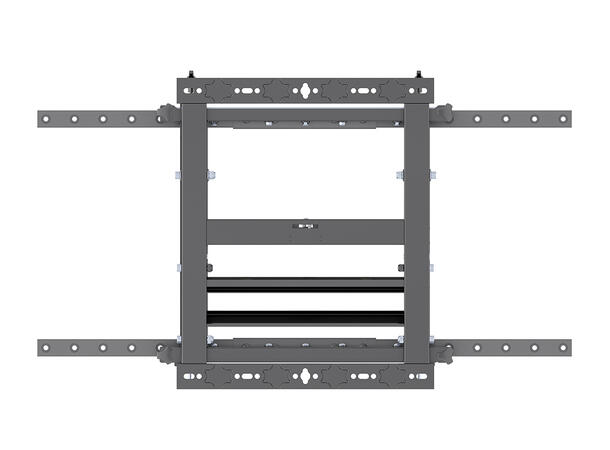

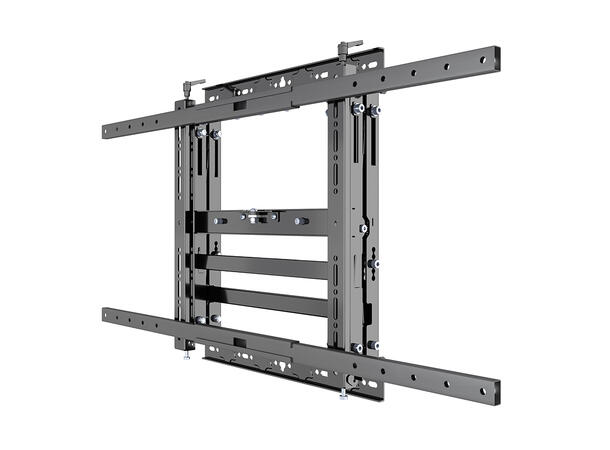

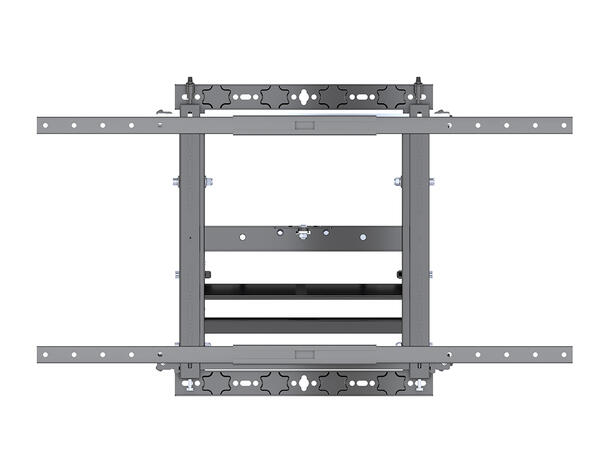

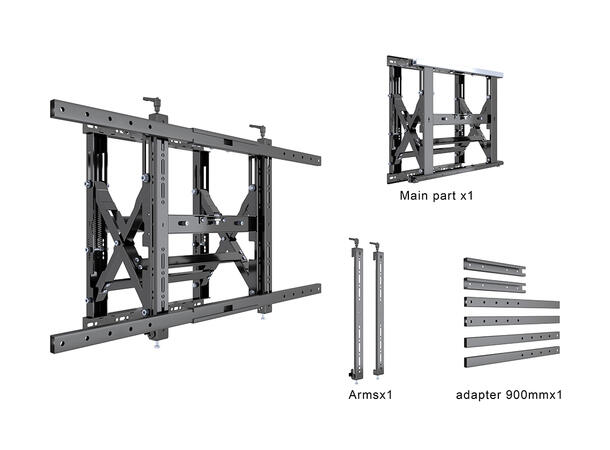

  • Included VESA adaptor kit up too 900x400 or 400x900

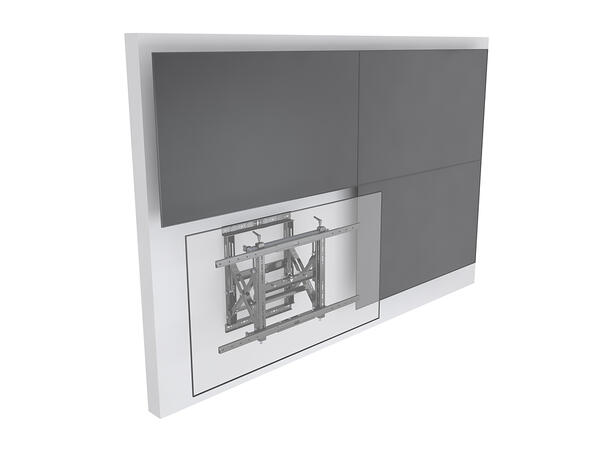

  • Modular mount with unlimited Video Wall display configurations possible

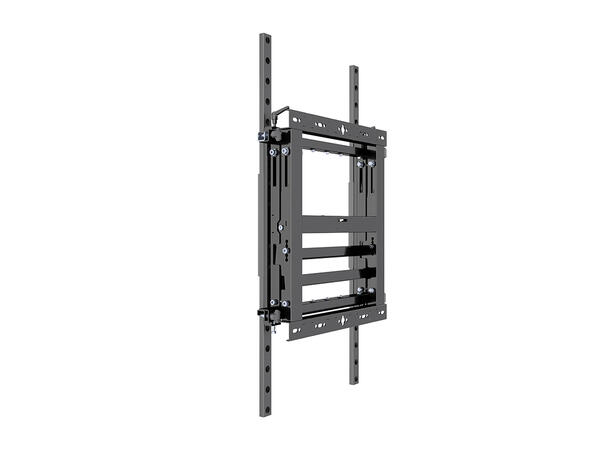

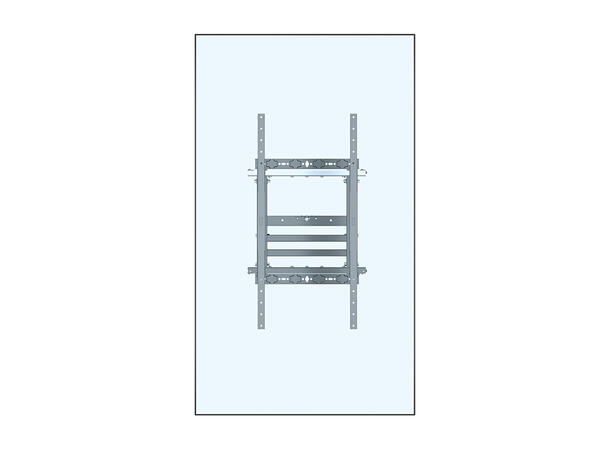

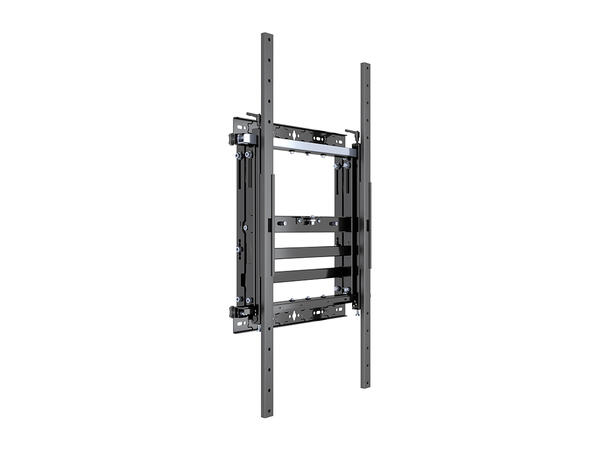

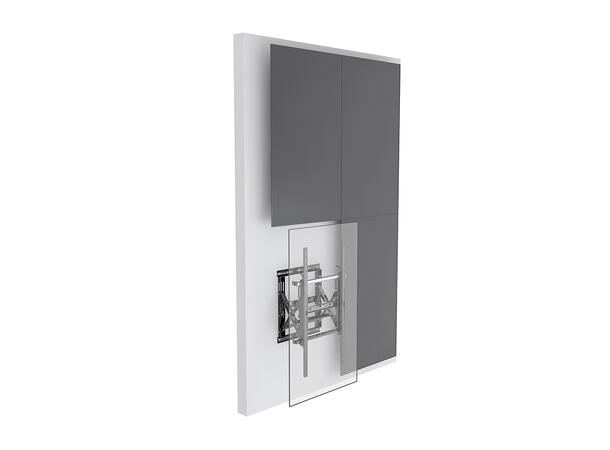

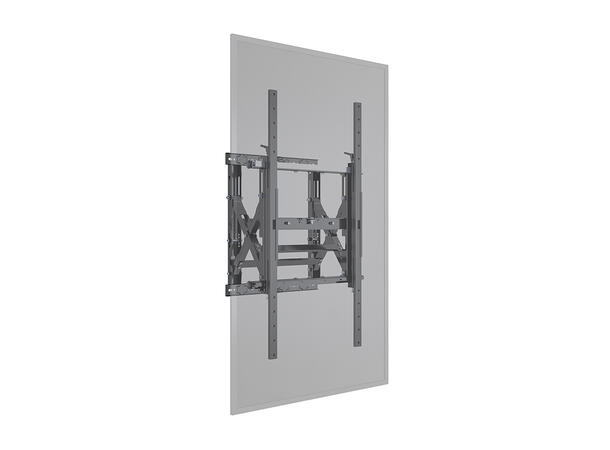

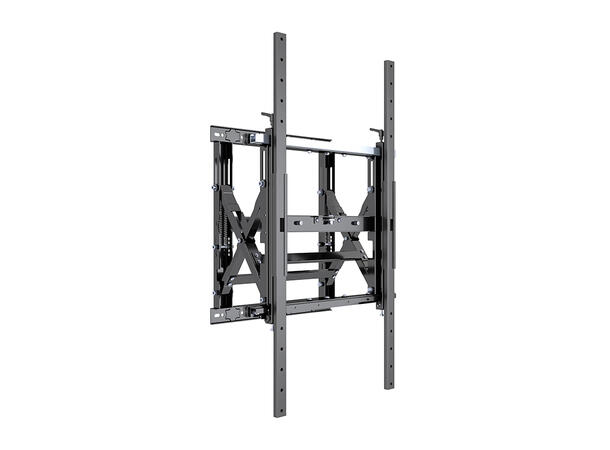

  • Compatible with landscape or portrait mounting
  • Monitor tailored spacer kit for the fast on site installations (See list)
  • Tool-less fine adjustments with 8 knobs for a seamless alignment of the displays

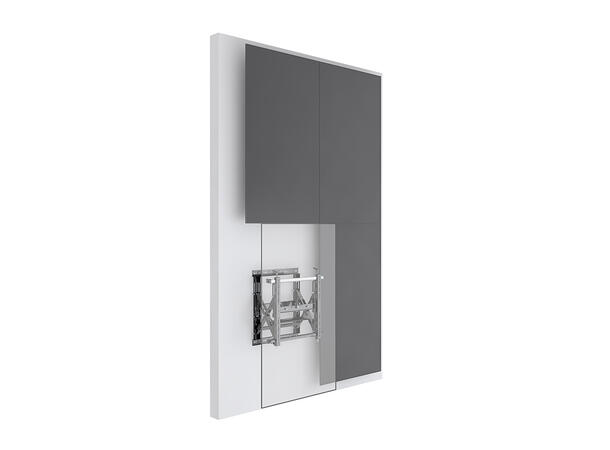

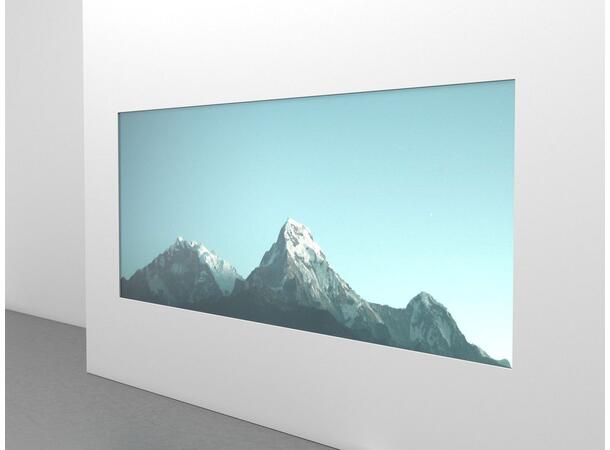

  • Ideal for recessed areas or where there is a surround around the whole video wall blocking access
  • Push in Pop out for easy access and after service
  • Integrated cable management system
  • Security screws to avoid accidents
  • VESA, 200, 300 and 400 compatible, including support of up to VESA 900x400 or 400x900 by included adapter kit

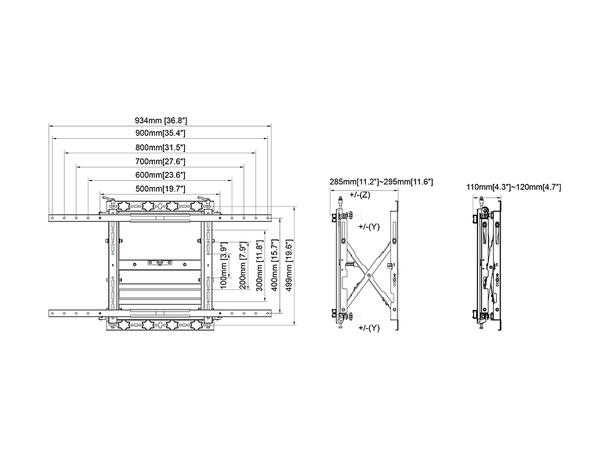

SPECIFICATION
M Public Video Wall Mount Push HD Max 90kg
For screen size:50" - 95"
Article No:7 350 073 731 749
VESA standard:200x200,300x300,400x200,400x400,600x400
400x600,800x400,400x800,900x400,400x900

Colour:Black
Max load:90 kg
Weight:14 kg
Box dimensions:60x60x10 cm
Size in mm:760x460
Warranty:2 years
Retail Package Specification
Package Parcels:1 pcs
Package Measurements:60 x 60 x 10 cm
Package Weight:14.00 kg
