Micro-Adjustable Arms 400mm - Micro adjustable Arms, Part for Pro Series, steel, length: 400mm, 30kg max weight capacity, adjustable y-axis 0-5mm, z-axis 0-15mm, 3° rotate, 2 pcs - black
With its modular construction Pro Series parts have vast possibilities to change, update and reconfigure a Pro Series installation. Combine the parts with a Pro Series installation and create a new configuration.

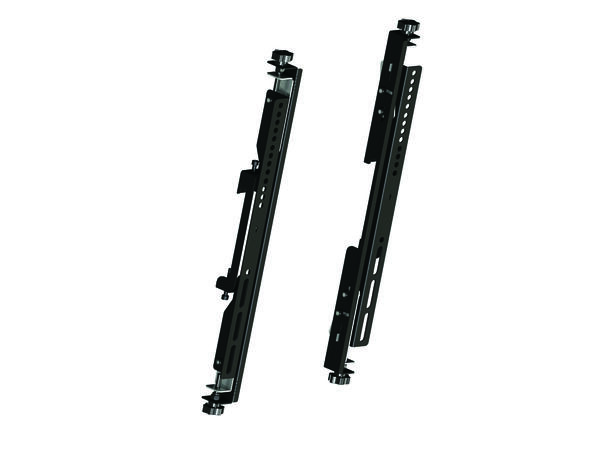

Micro-Adjustable Arms 400mm are ideal screen mounts when fine tuning screen of position is needed.
This Part for M Pro Series is made of steel and has a 30kg max weight capacity

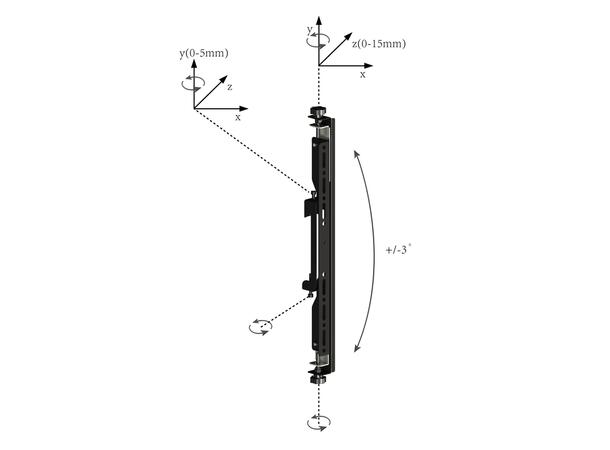

Adjustable y-axis 0-5mm
Adjustable z-axis 0-15mm
Adjustable ±3° rotate
MB Pro Series is design protected by Multibrackets
Click here to reach Multibrackets Pro Series overview page.Click here to reach Multibrackets Pro Series Parts page.|
| M Pro Series Micro-Adjustable Arms 400mm |
| Article No: | 7 350 073 733 798 |
| For screen size: | 40”-65" |
| Type: | Part for M Pro Series |
| Universal & VESA standard: | Adjustable from 100x100 to 600x400 max |
| Material: | Steel |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 5 kg (2 pcs) |

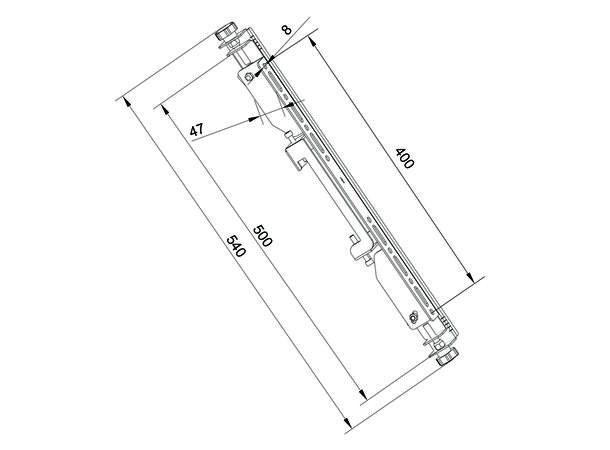

| Measurements | 543x49x47 mm |
| Max Load: | 30 kg per screen |

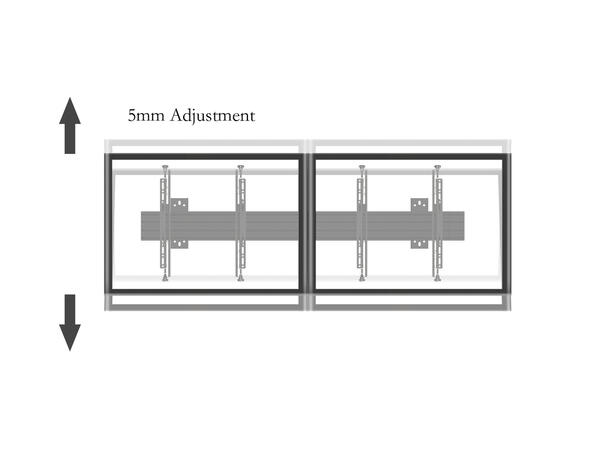

| Height adjustment: | Yes, 0-5mm |

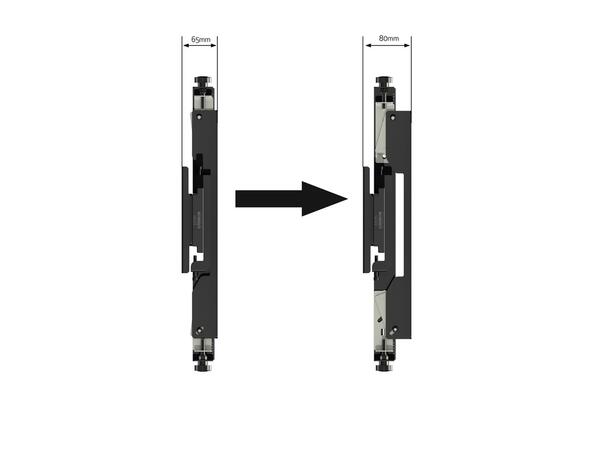

| Depth adjustment: | Yes, 0-15mm |

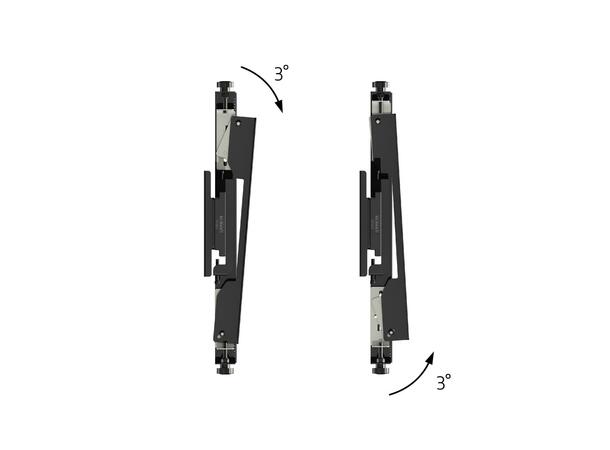

| Tilt adjustment: | Yes, ±3° |
| Warranty: | 5 years |
| Retail Package Specification |
| Package Parcels: | 1 pcs |
| Package Measurements: | 58.7 x 15 x 7.2 cm |
| Package Weight: | 2.60 kg |
| Distribution Package Specification |
| Retail Package Parcels: | 5 pcs |
| Package Measurements: | 59 x 31.5 x 14.5 cm |
| Package Weight: | 13.01 kg |
