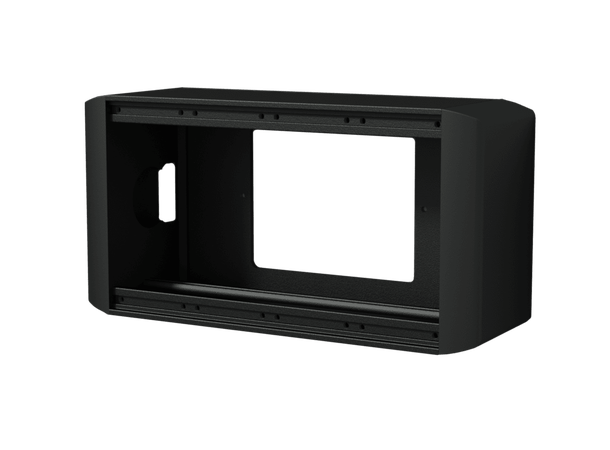

The CASY034 is a modular on-wall chassis which can be fitted with 4 modules from the CASY range. The flexible and modular structure ensures a maximum versatility, allowing to adapt the system to each project's specific requirements. Possibilities are ranging from audio, video and data interconnection to power distribution, control panels, power supplies and many more.

The aluminum construction features pre-threaded hole inserts allowing module installation with a maximum of 4 units with a built-in depth up to 60 mm. It can be mounted on any wall or surface, while cable entry is possible through large access holes on the rear side. The sides are constructed out of ABS material with break-out points allowing cable entry through a duct or gland. Modules can be fixed inside the unit using the included M3 screws. The overall construction is finished in a black (RAL9004) structured and scratch resistant powder coating.

Highlights
Wide variation of compatible modules available
60 mm usable depth
Pre-threaded mounting profile for easy assembly
Structured and scratch resistant black powder coating
Aluminum extruded construction with rounded ABS sides
Stores 4 units of CASY modules
Flexible system for system integration & connectivity
Provided cable gland entry

PRODUCT FEATURES
Module Units 4 x front side
Dimensions 172 x 88.1 x 65 mm (W x H x D)
Weight 0.42 kg
Connection Large access holes on rear side Cable duct or gland entry on sides
Finish Structured powder coating
Colours Black (RAL9004)
Construction Alu extrusion with plastic side covers
Max. usable depth 60 mm
