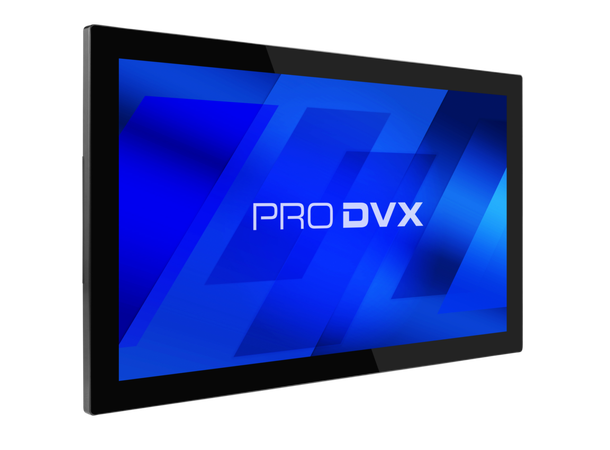

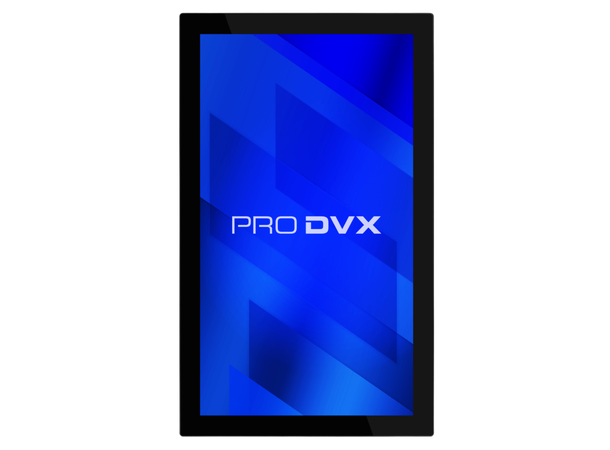

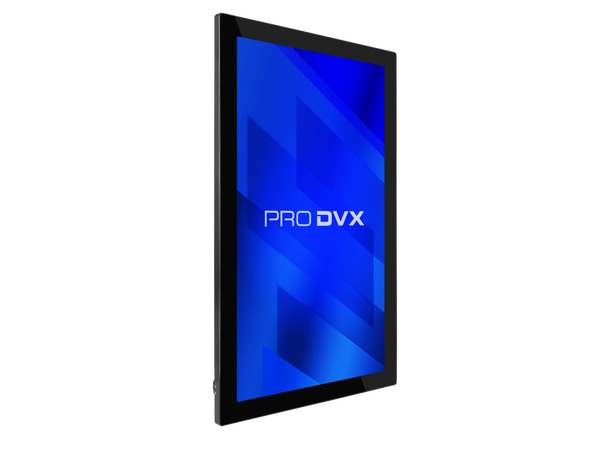

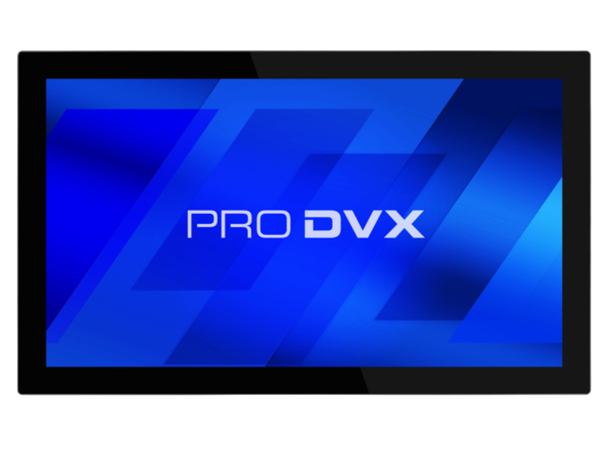

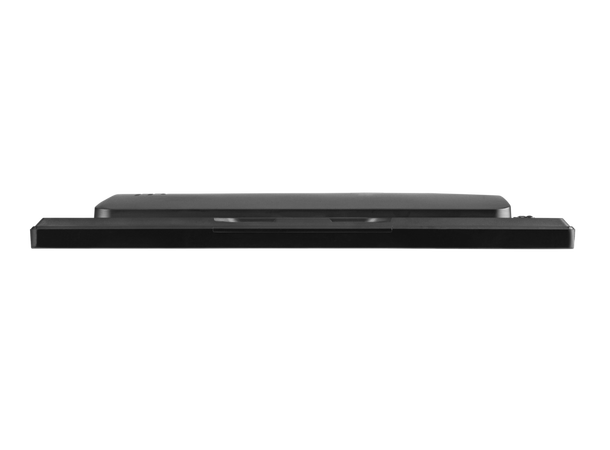

The ProDVX IPPC-22-6000 is an Intel Panel PC with a 21.5" Touch Display. The ProDVX IPPC-2-6000 standard comes with an Intel Pentium N4200 1.1 GHz. This device can be connected through RJ45 LAN, WiFi, Bluetooth and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display in plastic housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module, Motion Sensor or VESA brackets.
| Panel |
|
|
|
| Panel
type |
TFT LCD IPS |
| Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 wide |
| Backlight |
Edge-LED backlight |
| Brightness |
250 cd/m2 |
| Viewing Angle |
H 178° / V 178° |
| Contrast Ratio |
3000:1 |
| Touch Type |
10 point touch
projected capacitive |
| Convenience |
Landscape,Portrait,Table
Mode |
| Gyro |
N/A |
| System |
|
|
|
| Chipset |
HD505 |
| Processor |
Pentium N4200 |
| CPU |
Intel Pentium N4200
1.1 GHz |
| GPU |
Intel HD 505 Graphics |
| Cooling |
Fanless |
| System Memory |
4GB DDR3L |
| Video Out |
mini HDMI |
| Internal Storage |
64GB M.2 2242 Flash
Drive |
| Storage Socket 2 |
SD-Card Slot (door) |
| OS |
Windows 10 (optional
Linux) |
| LED Light Bar |
N/A |

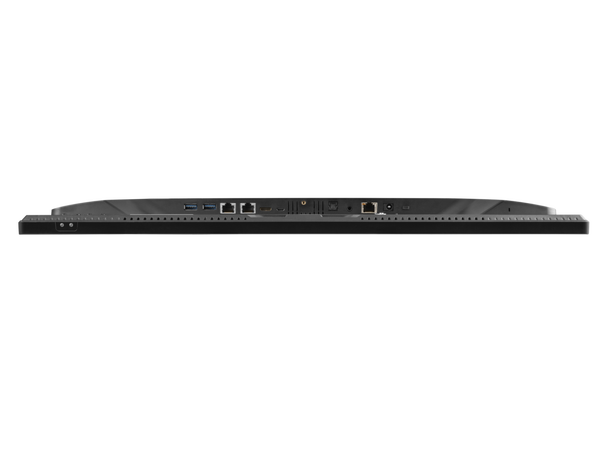

| I/O Ports |
12 V DC-IN,2x COM
(RJ45),2x USB3.0,3.5 mm audio-out,Ethernet
(RJ45),Micro-USB,S/PDIF,mini-hdmi-out |
| Network LAN RJ45 |
10/100/1000 Mbps LAN |
| WiFi |
802.11 a/b/g/n/ac |
| Bluetooth |
BT 4.2 |
| Integrated NFC |
N/A |
| Camera |
N/A |
| Video/Audio |
|
|
|
| Microphone |
N/A |
| Speakers |
2 x 3 W |
| Audio Jack
Output 3.5mm |
YES |
|
|
| Physical |
|
|
|
| Housing |
Plastic |
| Color |
Black |
| Weight |
4200 g |
| Dimensions |
531 x 322 x 35 mm |

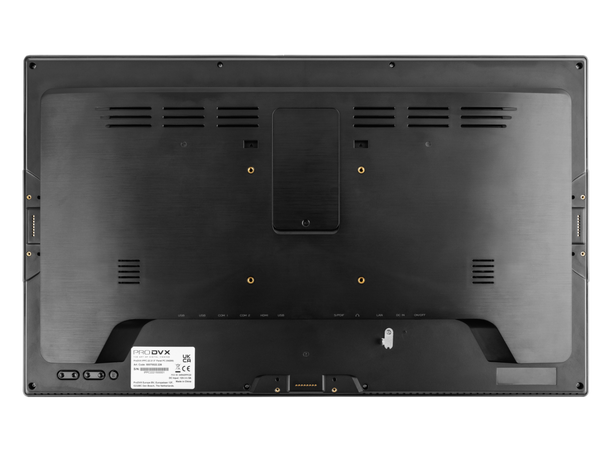

| Mounting / VESA |
VESA 100x100 |
| Power Supply |
12 V / 5 A |
| Power Supply
Included? |
Yes |
| Power Usage |
30 ~ 45Watt |
| Pogo Pins |
YES
(bottom/left/right) |
| Other |
|
|
|
| OSD
Language |
Multi OSD language |
| Clock Battery
(for RTC) |
CR2032 - Lithium-metal
non-rechargeable coin |
| Storage Temp |
-10 ~ 55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working
Humidity |
10 ~ 90%
non-condensing |
| MTBF |
50,000 hours
demonstrated |
| Standard
Warranty |
3 years |
| Certifications |
FCC, CE, RoHS |
