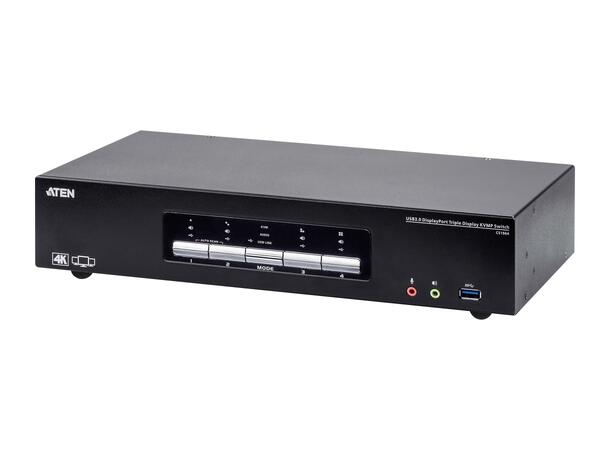

Aten KVM 4-PC 1-User CS1964
The
ATEN CS1964 optimizes your desktop organization to help you
effortlessly manage a triple-display multimedia workstation. The CS1964
provides instant, user-friendly access to four computers via a single
USB keyboard, USB mouse and three HDMI monitors. By daisy-chaining two
CS1964 for six displays, you can multitask smoothly to increase
productivity and improve workflow.
The CS1964 is equipped with patented ATEN technology – Video DynaSync™
– which optimizes display resolution, speeds up switching between
systems, and ensures that windows opened on an extended desktop will not
revert to their default configurations on the main display when
switching between ports, providing a smooth and uninterrupted user
experience. What’s more, the CS1964 supports the most superior video
quality up to 4K DCI (4096 x 2160 @ 60Hz). In addition, the CS1964
delivers data transfer rates up to 5 Gbps with a built-in USB 3.1 Gen 1
hub, allowing you to accelerate multimedia operations with ease, and
equipped with N-key Rollover, offering support for up to 15 simultaneous
keystrokes that avoids ghosting or jamming.
Integrating all
these advanced functionalities, the CS1964 provides a unique advantage
for users who need to operate multiple systems and perform multiple
tasks across a triple-display extended desktop. The CS1964 especially
benefits those doing financial trading, CGI work, graphic design,
control center, call center, video post production, gaming applications,
and more.
NOTE! THIS KVM HAS HDMI PORTS FOR CONNECTING TO DISPLAY

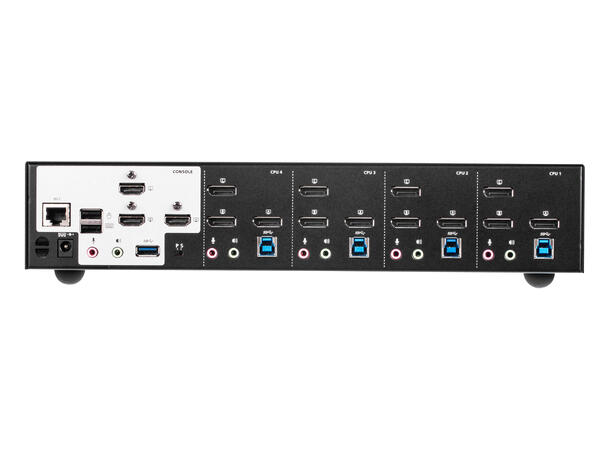

- One USB keyboard/mouse and three HDMI monitors control four DisplayPort computers
- Supports superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
- DisplayPort 1.2 compliant, HDMI 2.0 compliant, HDCP 2.2 compliant
- Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 Commands2
- Supports N-key Rollover3 (NKRO) – permits collision-free keying
- Video
DynaSync™ – an exclusive ATEN technology that optimizes display
resolution, speeds up switching between systems, and ensures that
windows opened on an extended desktop will not revert to their default
configurations on the main display when switching between ports
- Supports six displays by connecting two triple display KVM switches
- Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Supports Console keyboard emulation/bypass feature
- Supports Console mouse emulation/bypass feature
- Independent switching of KVM, USB peripheral, and audio focus4
- Supports HD Audio4
- Firmware upgradable
Note:
- Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
- Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45-to-DB9 cable. Please refer to the CS1964 RS-232 Commands document.
- N-key Rollover supports up to 15 simultaneous keystrokes.
- HD audio through DisplayPort-HDMI cannot be switched independently.
