The MTX48 is the four-zone version of the MTX series, containing two balanced microphone inputs with priority function, phantom power possibility and three-band tone control. Four stereo line-level inputs are provided to which any line-level music source such as a CD-player, tuner or MP3 player can be connected. The other two inputs of the matrix are the additional wall panel inputs for both line and microphone signals. The MTX can be controlled by means of additional control panels, its fully functional web based interface or the AUDAC Touch app. Using the freely available

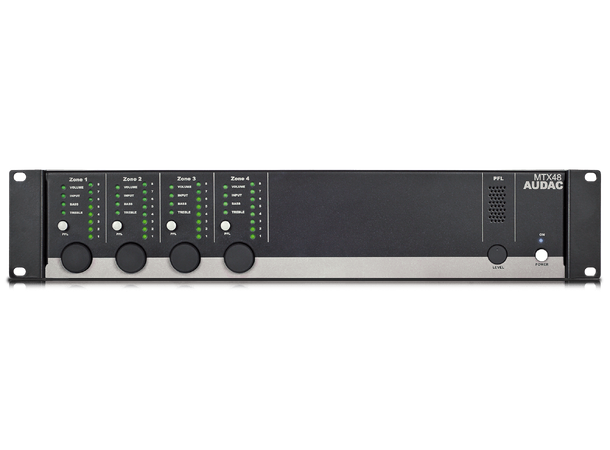

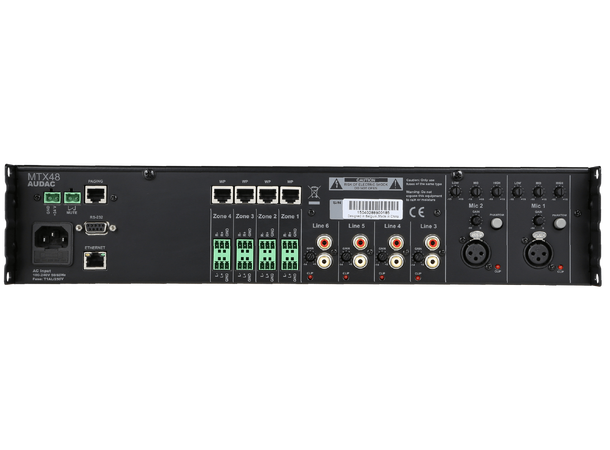

AUDAC Touch™ application for smart devices guarantees total system control and configuration from any device on any location and at any time. The RS232 port makes the MTX compatible with any home & industrial automation systems supporting RS232. The front panel of the MTX shows a rotary button per zone with indication LEDs for accessing controls and settings. A built-in PFL loudspeaker makes it possible to pre-listen every channel without the need for a headphone. The balanced line-level zone output connections are performed using 3-pin Euro-terminal block connectors, each of them accompanied with an RJ45 connector for connecting additional wall panels for that zone. A 24 volts’ power connection makes it possible to keep the MTX running on emergency power, even if the main power is shut down.
| SYSTEM SPECIFICATIONS |
|---|
| Crosstalk (@ 1 kHz) | -85 dB |
| Control | Front panel |
| RS-232 |
| TCP/IP (RJ45) |
| Wall panel (RS-485) |
| Audac Touch™ |
| Web (Flash) |
| Socket Connections (AUDAC Touch™) | 5 sockets |
| Outputs | Impedance | 51 ? |
| Level | -70 dB ~ 0 dB |
| Frequency | Response (± 3 dB) | 20 Hz - 20 kHz |
| Power | Consumption | 12 W |
| Supply | 100 ~ 240 V AC / 50 ~ 60 Hz |
| | 24 V DC (emergency Power) |
| Inputs | Balanced Microphone | Type | 2 x Balanced Microphone |
| | Connector | XLR |
| | Sensitivity (1W/1m) | 0 dBV ~ 50 dBV |
| | Phantom Power | 15 V DC |
| | Signal / Noise | > 80 dB |
| | THD+N (@ 1 kHz) | < 0.05 dB |
| Unbalanced Stereo | Type | 4 x Stereo Unbalanced Line |
| | Connector | RCA |
| | Sensitivity (1W/1m) | -14 dB ~ +9 dB |
| | Signal / Noise | > 100 dB |
| | THD+N (@ 1 kHz) | < 0.01 dB |
| Wall Panel | Type | 4 x Wall panel input |
| | Connector | RJ45 |
| Other | Type | Priority mute contact |
| Outputs | Balanced Stereo | Type | 3-pin Euro Terminal Block (Pitch - 3.81 mm) |
| EQ | Treble | ± 14 dB (2.5~20 kHz) |
| | Bass | ± 14 dB (100 Hz) |
| Inputs | Balanced Microphone | EQ | High | ± 15 dB (12.5 kHz) |
| | | Mid | ± 15 dB (2.5 kHz) |
| | | Low | ± 15 dB (80 Hz) |
| PRODUCT FEATURES |
|---|
| Dimensions | 482 x 88 x 335 mm (W x H x D) |
| Weight | 4.750 kg |
| Unit height | 2 HE |
