"Don't feel like hanging around?"

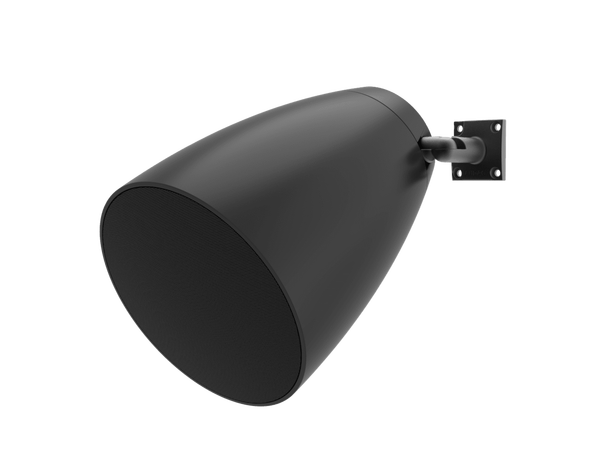

The ALTI6M is a variant of the ALTI pendant speakers, featuring a die-cast mounting bracket for wall & ceiling mount purposes. This allows the same audio system design and identity throughout the entire installation in case some areas are not allowing pendant solutions being used due to the ceiling heights or structures. Acoustics and construction are identically crafted, while connections are made through weatherproof AWX5™ connectors, this construction has an IP65 rating.

The ALTI6M features a 2-way 6,5” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance. The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 Watt is achieved.

SYSTEM SPECIFICATIONS
Speaker type 2-way coaxial
Max. Power 120 W
RMS Power 60 W
Impedance 16 ?
Connectors Waterproof AWX-5 connector
Sensitivity (1W/1m) 83 dB
Ingress Protection rating IP65
Line Transformer Tappings 1 83 ? - 100 V / Not used - 70 V / 60 W
2 167 ? - 100 V / 60 W - 70 V / 30 W
3 333 ? - 100 V / 30 W - 70 V / 15 W
4 667 ? - 100 V / 15 W - 70 V / 7.5 W
Dispersion Conical 115° (average 500 Hz to 5 kHz @ -6 dB)
Sound Pressure (Max. W/1m) @ 16 ? 101 dB
Frequency Range (-10 dB) 61.5 Hz - 20 kHz
Response (± 3 dB) 75 Hz - 17 kHz
PRODUCT FEATURES
Connection cable length 0.7 m
Construction Polypropylene
Front finish Aluminium grill
Mounting & handling 2-way Revolving mounting bracket
Weight 3.48 kg
Dimensions 235 x 230 x 336 mm (W x H x D)
Accessories Included 5-pin connection cable (70 cm)
2-way Revolving mounting bracket
