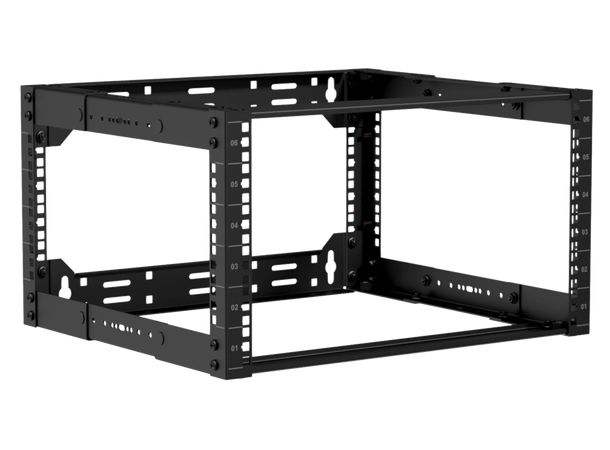

OPR306A Adjustable Open-Frame Rack for 19" Equipment

The OPR306A is a robust, adjustable open-frame rack designed to accommodate 19” equipment, fully compliant with ANSI/EIA RS-310D, DIN41491, and IEC60297 standards. Ideal for both wall-mounted and floor-standing installations, this rack provides exceptional installation flexibility and ease of maintenance, supporting up to 9 units of 19” equipment. With its adjustable depth (300 mm to 450 mm), the OPR306A ensures seamless integration into existing setups and maximizes space utilization.

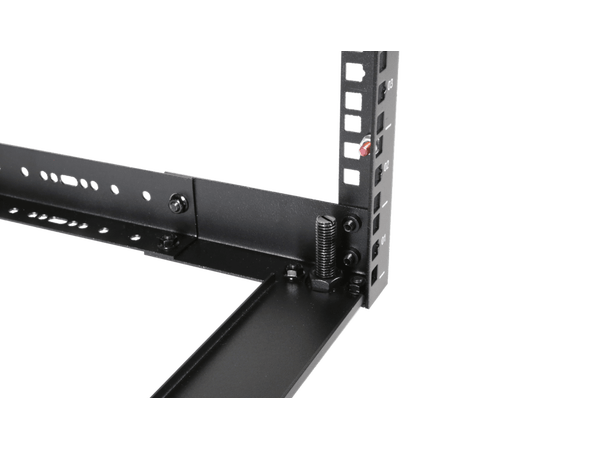

Crafted from 2 mm thick cold-rolled steel, the OPR306A offers a strong, durable structure that allows for pre-loading equipment before transporting to the installation site. The frame features a sleek black (RAL9004) powder-coated finish with a fine structure, while the punched mounting profiles on the front and sides enable versatile use for a variety of equipment types.

Designed for easy, quick assembly, this rack arrives in a flat-down package, and can be assembled by a single person in under 10 minutes. Whether you're integrating it into existing furniture or using it as a standalone unit, the OPR306A ensures reliable performance with unrestricted airflow due to its open-frame design.

Highlights:

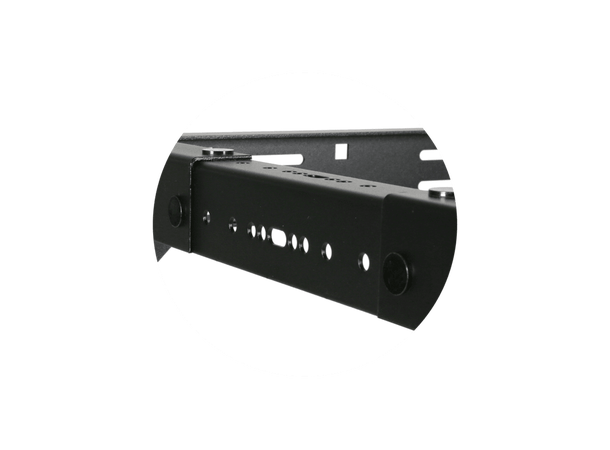

• Adjustable Depth: Easily adjusts from 300 mm to 450 mm for flexible installation.
• Capacity: Stores up to 6 units of 19” equipment with a total load capacity of 100 kg (standing) and 50 kg (hanging).
• Easy Assembly: Set up in under 10 minutes with minimal effort.
• Versatile Mounting: Can be floor-standing or wall-mounted.
• Efficient Airflow: Open-frame design ensures unrestricted airflow for optimal cooling.
• Pre-Assembly Convenience: Ships flat-down for simple, quick assembly by one person.

Specifications
