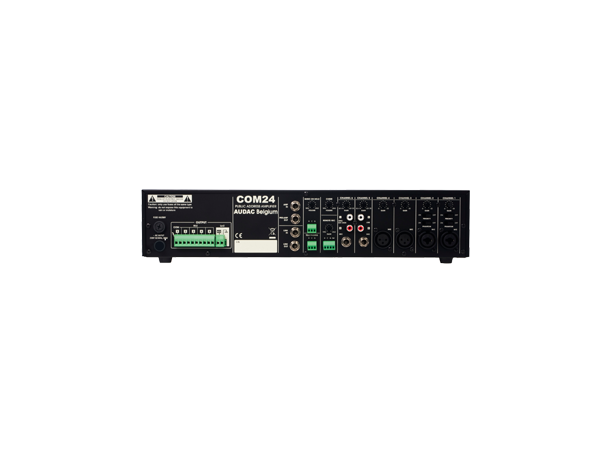

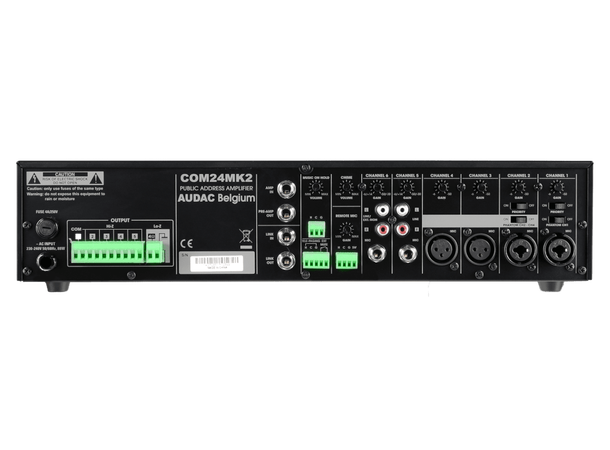

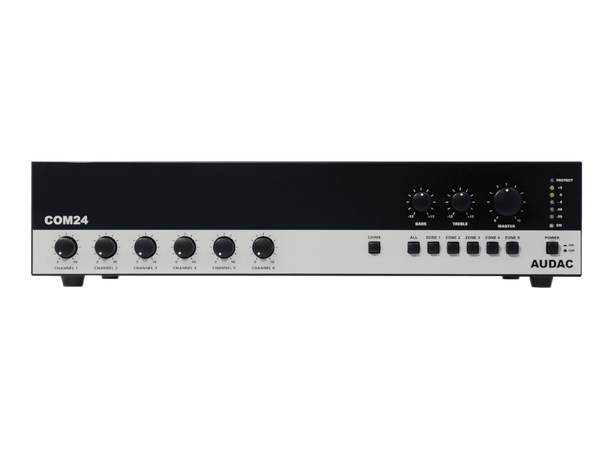

Audac Mikseforsterker COM24 MK2

5 Soner Chime 240W 100V Mic Prioritet

Varenr: 41122
Alt. varenr: COM24MK2
BeskrivelseEkstern InfoTeknisk infoTilbehørAlternativer
Beskrivelse

The COM series public address mixing amplifiers are providing an ideal solution for small to medium size commercial sound systems. Different configurations in terms of output power and connectivity provide enormous flexibility for numerous applications. The COM24 is capable of delivering an output power of 240 Watt to 100 Volt constant voltage systems or 4 Ohm low impedance loads. Six input channels with individual level control allow connectivity and mixing to a wide variation of music sources. Four balanced microphone inputs (XLR)containing phantom power (15V) and two priority allow connection for almost any (dynamic or condenser)microphone. Two inputs selectable between stereo unbalanced line (RCA) and microphone (6.3mm Jack) allow connection for any source such as CD-player, music computer or portable device, or enable to expand the total microphone count to 6. The remote microphone and tele-paging inputs allow expansion of the system with a paging station(with chime tones) or couple the system with your business telecom system (or any other priority line source). Using the priority mute contact, coupling and muting can be done through an external fire alarm system. The output level can be adjusted using a master volume control accompanied with 2-band tone regulation. The level is indicated with a 5-segment VU-barwhile output selection is made possible using an integrated 5-zone speaker switcher. Both table-top installation or 19” (2HE) equipment rack mounting is made possible using the included adapters.

SYSTEM SPECIFICATIONS
RMS Power240 W
Signal / Noise> 90 dB
THD+N (@ 1 kHz)< 0.5%
Crosstalk (@ 1 kHz)> 70 dB
TechnologyClass-D
Common mode rejection ratio70 dB
ProtectionDC Short circuit
Over heating
Over load
Signal limiting
CoolingConvection cooled
Operating temperature0° ~ 40° @ 95% Humidity
FrequencyResponse (± 3 dB)20 Hz - 20 kHz
PowerSupplyTransformer
Source230 ~ 240 V AC / 50 ~ 60 Hz
InputsOtherRemote mic (Priority mic + chime)
Tele-paging (Priority line)
Priority mute contact
OutputsConnector2-pin Euro Terminal Block (Pitch - 5.08 mm)
10-pin Euro Terminal Block (Pitch - 5.08 mm)
Voltage / Impedance100 V / 4 ?
InputsBalanced Microphone 1 - 4Type4 x Balanced Mic./Line (-6 dB / -50 dB)
Connector2 x XLR/Jack Combo & 2 x XLR
Other4 x 15 V DC Phantom & 2 x Priority
Balanced Microphone 5Type1 x Balanced Mic./Line (-6 dB / -50 dB)
Connector6.3 mm Jack
Unbalanced StereoType1 x Stereo Unbalanced Line (+14 dB / -30 dB)
ConnectorRCA
PRODUCT FEATURES
Dimensions420 x 88 x 320 mm (W x H x D)
Weight11 kg
Mounting19” / 2 HE or tabletop
ConstructionSteel
ColoursBlack
AccessoriesIncluded19” Rackmount adapter
Ekstern Info
Teknisk info

Produktinformasjon

Effekt 240 watt
Grensesnitt Installasjon/100v
