Cerevo Flex Tally

Alt i ett Tally lampe system

Varenr: 128478
Alt. varenr: CDP-FT01B
BeskrivelseEkstern InfoTeknisk infoTilbehør
Beskrivelse

Cerevo Flex Tally

All-in-one tally lamp system

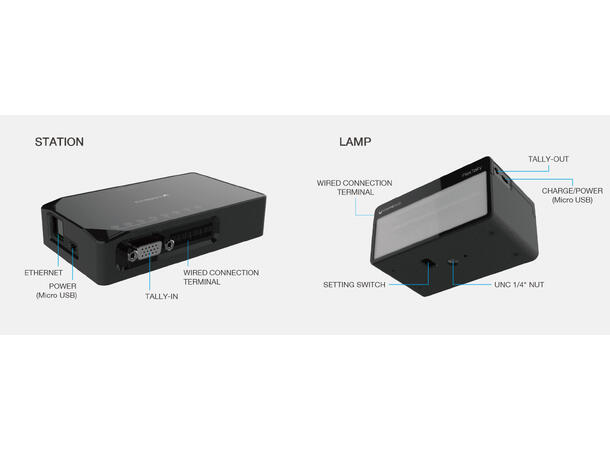

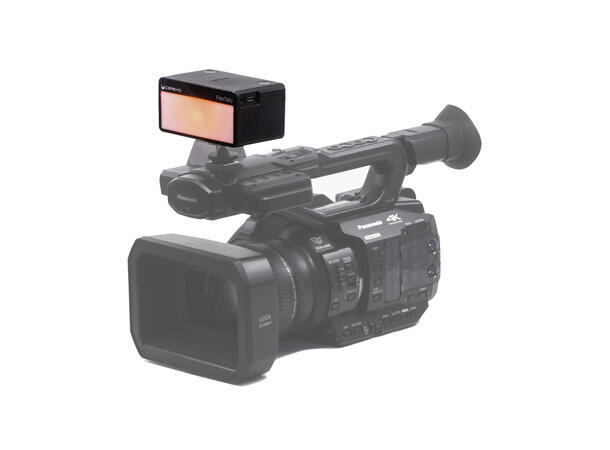

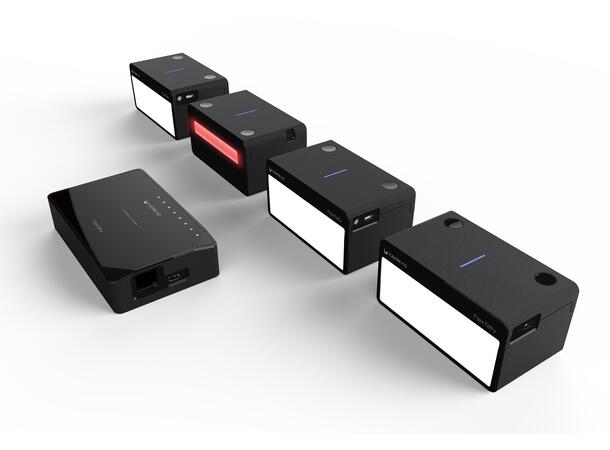

FlexTally consists of a Station unit that connects to Cerevo's video switcher"LiveWedge" and four Lamp units that are attached to each camera. Each lamp illuminates automatically according to the LiveWedge switching operation. FlexTally is also compatible with other brands' switchers(*1), as well as LiveWedge switcher.



FlexTally is a tally lamp system designed for easy operability and is available at a price range that means even small studios or streaming sites can look to add it to their multi-camera set-ups. FlexTally can be used via either wireless or wired connections for added convenience and its built-in battery allows for portability and use in remote shooting locations.



The wireless connection uses the 433MHz band, which is resistant to obstacles and interference from other wireless signals, to achieve a communication distance of 100m or greater(*2), and also it is possible to daisy chain connections through terminal blocks. FlexTally can be used with cables several hundred meters in length without issue.
A 6-hour battery is built into each Lamp unit so each one can operate completely wirelessly. Wired connections use a standard 2 pin cable, with terminal connectors for easy integration and compatibility.



Dimensions:
Station unit: W128 x D77 x H28 mm

Lamp unit: W100 x D60 x H50 mm



Weight

Station unit: 142g

Lamp unit: 164g



Wireless Connectivity:
433MHz



Wired Connectivity:
RS-485 serial connection



Wireless Connection Distance:
Approx. 100m (line-of-sight)



Battery Operating Time:
Lamp unit: 6-12 hours (will vary depending on the lamp brightness and usage environment)



Battery Charging Time:
Lamp unit:Approx. 2 hours



Number of Lamps Supported:
16 units



To connect with your video switchers, you need to set up using dedicated software provided by Cerevo or a specifically configured cable for GPIO connection. The cable should be created based on the tally output specifications of the video switcher you are using and the FlexTally’s tally input specifications. Specifications of the tally output may be different for each brand and switcher model. Supported OS for the dedicated software is Windows 10/8.1/7, Mac OS X is scheduled to be supported in the future.
