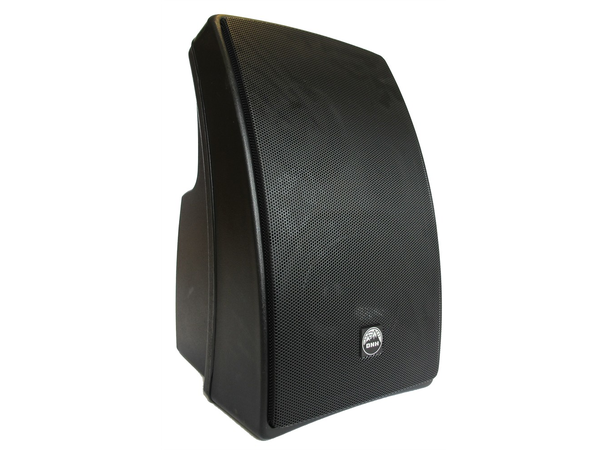

The MD-60 is weatherproofed to IP 44 for external mounting in e.g. pub gardens and exposed eating areas. The stylish curved cabinet is delivered with a bracket. * To achieve IP 44 the loudspeaker should be mounted with the grill at least 30 degrees downwards.

MD-60 is available with 60W transformer, and optional brackets are available on request.
Screw bracket to wall or ceiling, place cabinet onto ball socket and tighten bolt.
Connect to screw terminal and select required volume with the switch.
Screw on lid with gasket and tighten cable glands to assure a good sealing towards cable.
For optimum performance, always use the correct voltage / power and operate within the frequency limits as
stated.
Do not open loudspeaker when energized.
This loudspeaker is supplied with two years warranty against defective workmanship

SPECIFICATIONS
Material/Color ABS / Black - White
Mounting Bracket
Termination Screw terminal
Weight 3.9 kg
IP Rating IP44
Min/Max amb temp -20 °C / 90 °C
Rated power 60 W

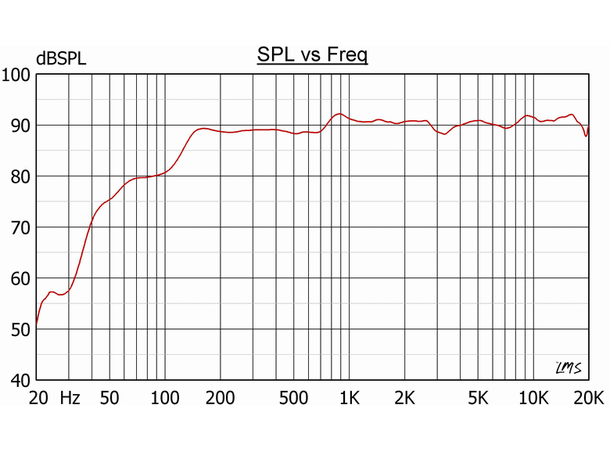

SPL 1W/1m: 90 db
SPL Rated Power 109 db
Effective freq. Range 45 - 20000 Hz
Dispersion (-6dB) 1kHz / 4kHz 140° / 65° (vertical)
Options Color / Impedance / Label
