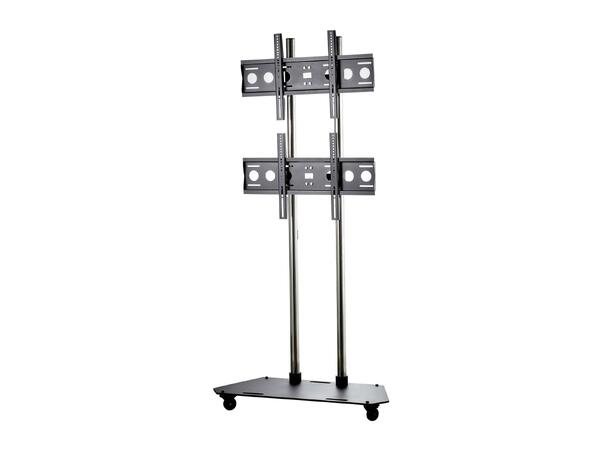

TR3
Flat Screen Trolley for Two 42?-65” Screens, vertical position
TR3 is a universal video conference trolley for two screens mounted vertical position. The lightweight and minimalist design of powder-coated steel and polished tubes makes it perfect for any interior such as offices, conference rooms and waiting rooms. Adjustable height and the possibility of tilting the screen make TR3 extremely functional. TR3 features a cable management system to hide cables and keep the aesthetic, smart appearance of the entire installation. Castors with a braking mechanism ensure mobility.
Up to 2 screens vertical position
Simple and fast installation
Aesthetic design of powder-coated steel and polished tubing
Adjustable height

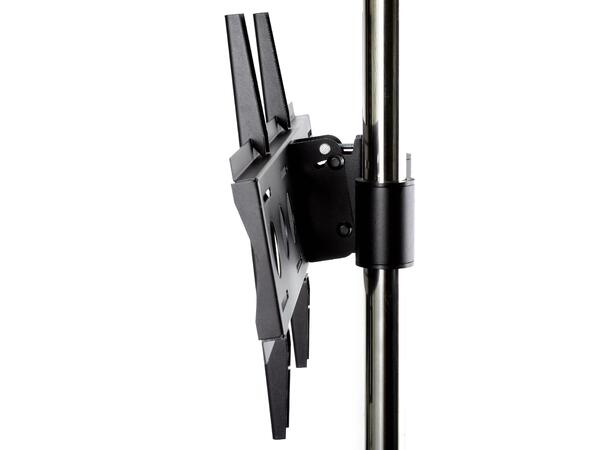

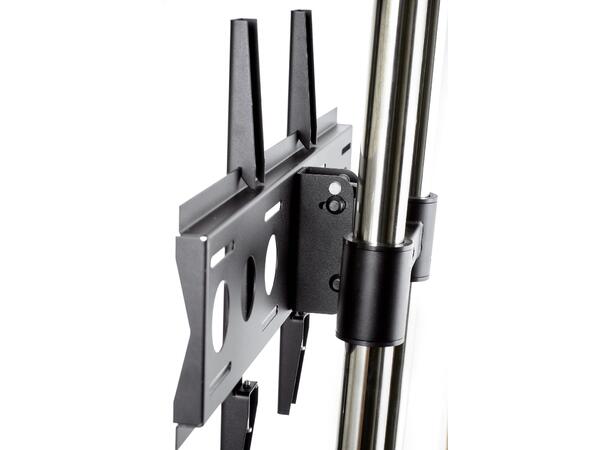

Possible tilting screens
Cable management for smart installation
Includes 4 braked casters
| Index |
TR3 |
| Category |
Flat Screen Trolleys
Universal Series |
| Product group |
Trolleys &
Stands |
| Color |
Black |
| Warranty |
Limited 5-year’s |
| Number of screens |
2 |
| Minimum screen size |
42? |
| Maximum screen size |
65? |
| Maximum load |
80 kg |
| Forward tilting |
+6° |
| Forward tilting |
-9° |
| VESA Mounting Compatibility |
100×100 up to
600×400 |
|
|
| Product dimensions |
W: 500 mm D: 1070 mm
H: 2116 mm |
| (W:
19,69? D: 42,13? H: 83,31?) |
| Product weight |
64,2 kg (142 lb) |
| Max. distance from floor to screen centre |
2080 mm (81,89?) |
| Max.
distance from the floor to the center of the screen |
| Min. distance from floor to screen centre |
353 mm (13,90?) |
| Min.
distance from the floor to the center of the screen |
| Max. mounting pattern |
750 mm x 460 mm |
| Min. mounting pattern |
45 mm x 95 mm |
|
|
| SAP
Index |
WWTR-TR3c-B |
| EAN Code |
|
| Color |
Black |
| Package
Dimensions |
W: 210 mm D: 80 mm
H:140 mm |
| (W:
8,27? D: 3,15? H: 5,51?) |
| Package Weight |
71,4 kg (157 lb) |
| HS Code (Harmonized System) |
732690 |
| HTS Code (Harmonized Tariff Schedule) |
7326909890 |
| Country of origin |
Poland |
