VWPOP65-L
Video Wall Pop-Out Mount with Quick Release 42?-65?, Landscape

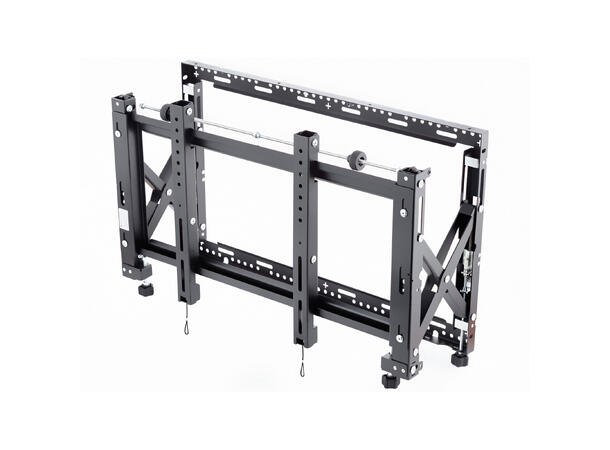

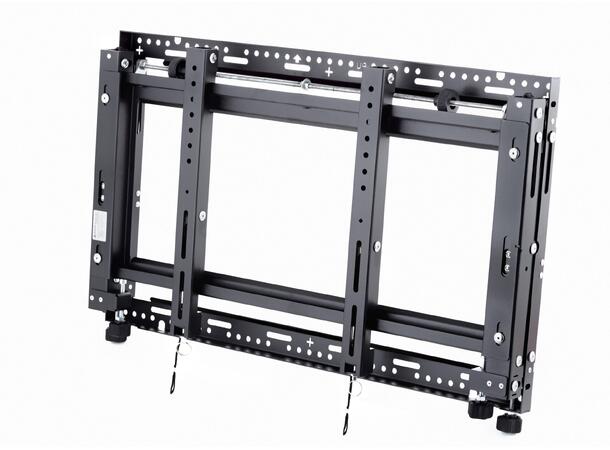

VWPOP65-L is a professional pop-out mount designed to build a video wall of modules in a comprehensive and visually appealing way. Eight positions of screen adjustment, spring-loaded mechanism for adjusting the masses of individual screens or an easy service access system offer great construction possibilities. This mount is the number one choice for users who care about intuitiveness and operating comfort. VWPOP65-L provides optimum comfort during the construction of a modular audio/visual wall.

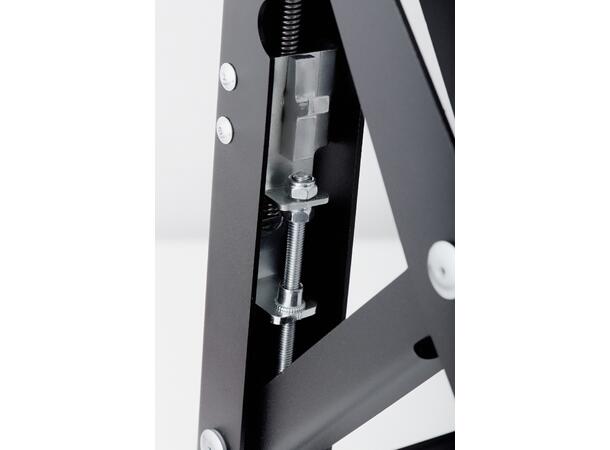

Independent 8 position adjustment allows precise alignment of screens without the use of tools

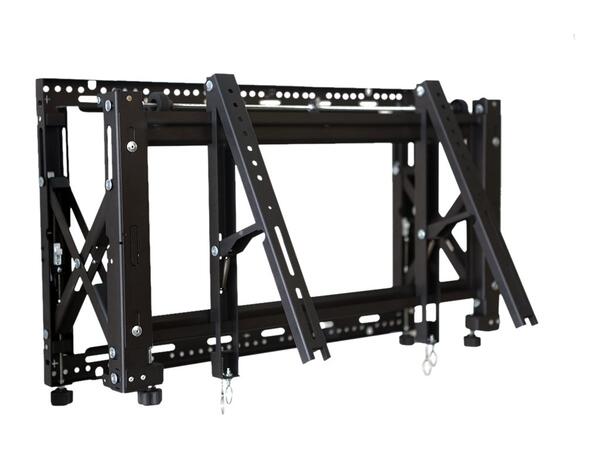

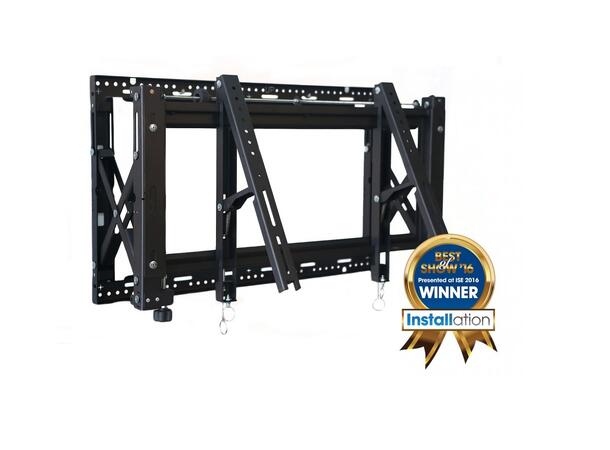

The retractable mechanism provides convenient service access to screens installed in recesses and places difficult to access

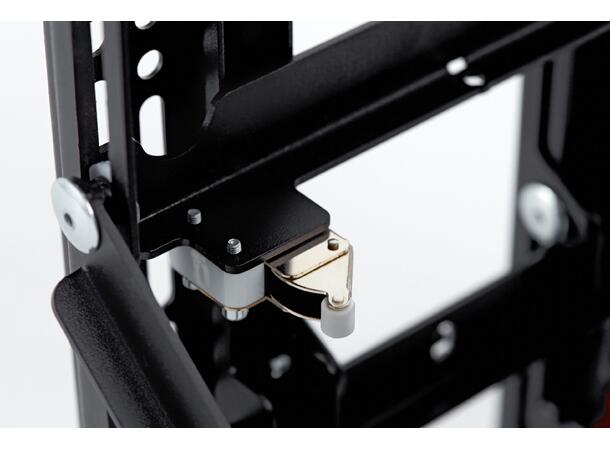

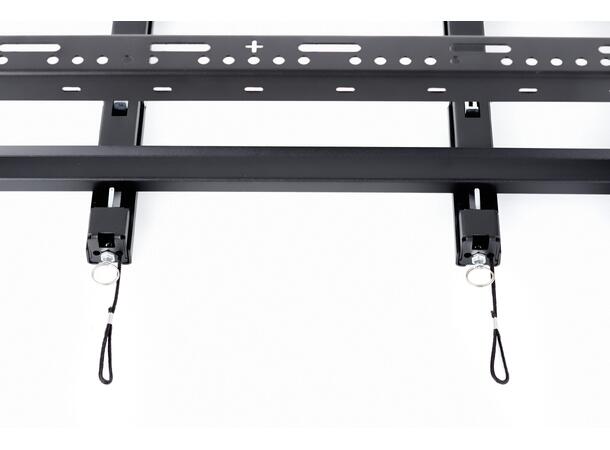

The retractable mechanism can be secured with a lock screw to prevent the screen from being accidentally extended

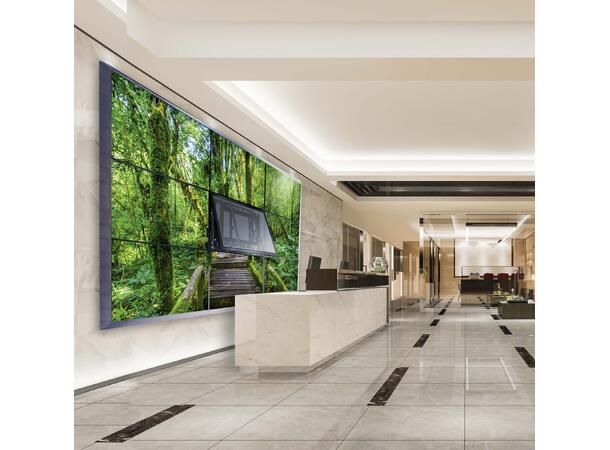

Modular design allows the building of video walls in various configurations using multiple VWPOP65-L mounts and spacers between the modules
Open product design provides full access to cabling
Mounting holes and carefully selected spacers eliminate the need for calculations on site

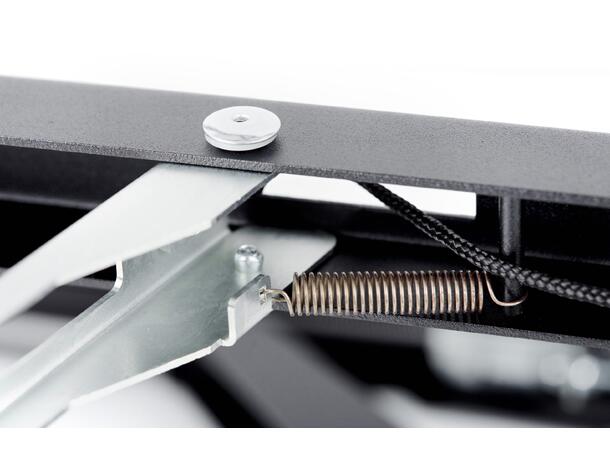

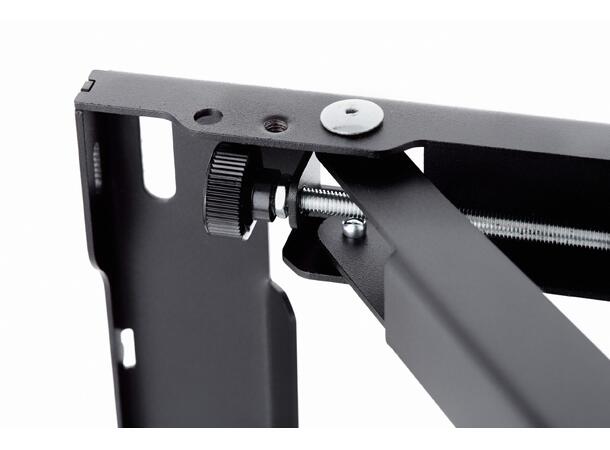

Adjustment of the retractable mechanism spring enables proper adjustment for screens of different masses to obtain safe and controlled extension
TUV tested
| Index |
VWPOP65-L |
| Category |
Video Wall Mounts |
| Product group |
Video Wall &
Menu Board Mounts |
| Color |
Black |
| Warranty |
Limited 5-year’s |
| Number of screens |
1 |
| Minimum screen size |
42? |
| Maximum screen size |
65? |
| Maximum load |
60 kg |
| Forward tilting |
+28° |
| Screen orientation |
Landscape |
| Height adjustment |
Yes |
| VESA Mounting Compatibility |
100×100 up to
600×400 |
| |
|
| Product dimensions |
W: 832 mm D: 85 mm
H: 530 mm (W: 32,76? D: 3,35? H: 20,87?) |
| Product weight |
15 kg (33 lb) |
| Max. distance from mounting surface |
270 mm (10,63?) |
| Min. distance from mounting surface |
85 mm (3,35?) |
| Max. mounting pattern |
630 mm x 405 mm |
| Min. mounting pattern |
45 mm x 85 mm |
| |
|
| Index |
WUSC-VWPOP65-L |
| EAN Code |
5,90825E+12 |
| Color |
Black |
| Package Dimensions |
890 mm x 560 mm x
110 mm (35,04? x 22,05? x 4,33?) |
| Package Weight |
15,8 kg (35 lb) |
| HS Code (Harmonized System) |
732690 |
| HTS Code (Harmonized Tariff Schedule) |
7326909890 |
| Country of origin |
Poland |
