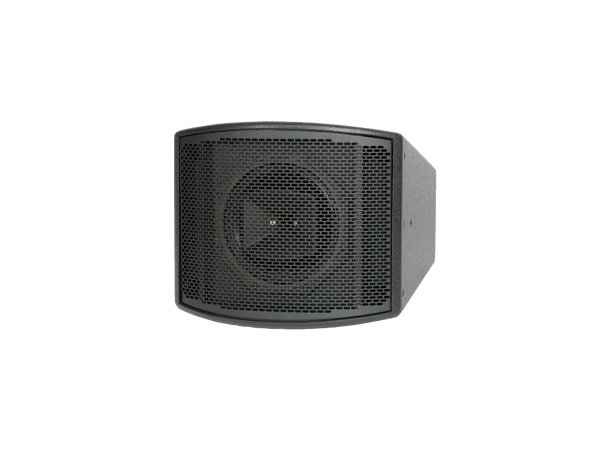

Fulcrum Acoustic CX826 Coax 8+1,7" 120x60 63 V/250 W @ 16 Ohm

Fulcrum Acoustic CX826

Coax 8+1,7" 120x60 63 V/250 W @ 16 Ohm

Varenr: 134426
Alt. varenr: CX826
BeskrivelseEkstern InfoTeknisk infoTilbehør
Beskrivelse

CX826

 Product Series: TQ Install

Overview

The CX896 is a coaxial loudspeaker that provides the output capability of a traditional 8 inch 2-way, horn-loaded-HF loudspeaker, but in a much more compact enclosure. Its coaxial transducer and 120° x 60° horn can be rotated in 45° increments, which allows its coverage to be tailored to best suit an application’s requirements. The enclosure’s vertically trapezoidal shape allows it to be installed very close to ceilings or beneath large arrays with minimal effect on sight lines. Fulcrum Acoustic’s TQ™ processing is an integral part of the CX896 design. Sound, innovative acoustical design combined with state of the art digital processing leads to exceptional clarity and precise transient response, even at very high sound pressure levels. The required digital signal processing can be provided by one of many supported platforms. The CX826 is particularly effective for fill systems where targeted pattern control is desirable. In addition, its 16 ohm nominal impedance makes it an excellent solution for high fidelity, foreground distributed systems where a high loudspeaker-toamplifier ratio is desirable. Its unique shape and compact size complements many architectural styles, which facilitates acceptance by interior designers and architects. This makes it the perfect choice for houses of worship, theaters, restaurants, transportation facilities, theme parks, and more.



Performance Specifications

Operating Mode: Single-amplified w/ DSP

Operating Range 2: 78 Hz to 20 kHz

Nominal Beamwidth (rotatable): 120° x 60°



Transducers

HF/LF: Coaxial 1.7 inch titanium diaphragm compression driver;

8.0 inch woofer, 2.0 inch voice coil; single neodymium magnet

Power Handling @ Nominal Impedance: 63 V / 250 W @ 16 O

Nominal Sensitivity @ Input Voltage 4 (whole space): 102 dB @ 4.00 V

Nominal Maximum SPL (peak / continuous): 132 dB / 126 dB

Equalized Sensitivity @ Input Voltage: 94 dB @ 4.00 V

Equalized Maximum SPL 6 (peak / continuous): 124 dB / 118 dB

Recommended Power Amplifier: 250 W to 500 W @ 16 Ohm



Physical Specifications



Connections

(2) Neutrik NL4 Speakon

Pin 1+/-: Full Range

Pin 2+/-: NC



Mounting / Suspension Points

(2) M6 x 1.0 yoke points, (2) M6 x 1.0 pull back points



Dimensions / Weight

See page 5 in spech sheet



Finish

Black painted enclosure w/ matte black grille, or

White painted enclosure w/ matte white grille



Options

YK-CX8 yoke bracket, Terminal strip input, Custom color finish,

Weather-resistant (WR) enclosure & hardware
