CCX826

 Product Series: TQ Install

Overview

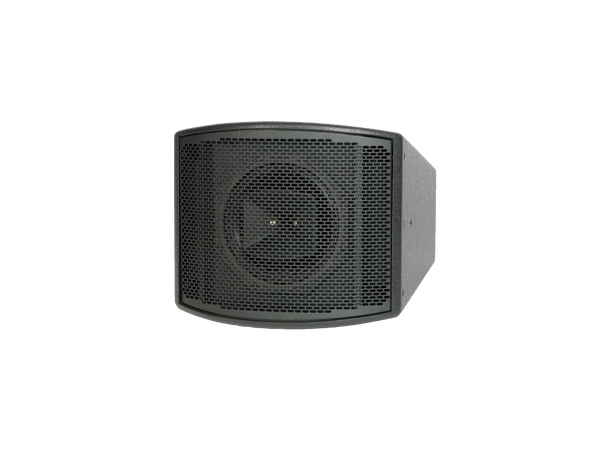

The CCX826 is a coaxial, passive subcardioid loudspeaker that provides 7 dB of low frequency attenuation in the rear hemisphere while still providing the output capability of a normal 2-way system in a much more compact enclosure. Its coaxial transducer and 120° x 60° horn can be rotated in 45° increments, which allows its coverage to be tailored to best suit an application’s requirements. The enclosure’s vertically trapezoidal shape allows it to be installed very close to ceilings or beneath large arrays with minimal effect on sight lines. Fulcrum Acoustic’s TQ™ processing is an integral part of the CCX826 design. Sound, innovative acoustical design combined with state of the art digital processing leads to exceptional clarity and precise transient response, even at very high sound pressure levels. The required digital signal processing can be provided by one of many supported platforms. The CCX826 is particularly effective for fill systems where targeted pattern control is desirable. In addition, its 16 ohm nominal impedance makes it an excellent solution for high fidelity, foreground distributed systems where a high loudspeaker-to-amplifier ratio is desirable. Its unique shape and compact size complements many architectural styles, which facilitates acceptance by interior designers and architects. This makes it the perfect choice for houses of worship, theaters, restaurants, transportation facilities, theme parks, and more.

Performance Specifications

Operating Mode: Single-amplified w/ DSP

Operating Range: 81 Hz to 20 kHz

Nominal Beamwidth (rotatable): 120° x 60°

Transducers

HF/LF: Coaxial 1.7 inch titanium diaphragm compression driver;

8.0 inch woofer, 2.0 inch voice coil; single neodymium magnet

Power Handling @ Nominal Impedance: 63 V / 250 W @ 16 Ohm

Nominal Sensitivity @ Input Voltage 4 (whole space): 103 dB @ 4.00 V

Nominal Maximum SPL (peak / continuous): 133 dB / 127 dB

Equalized Sensitivity @ Input Voltage: 95 dB @ 4.00 V

Equalized Maximum SPL 6 (peak / continuous): 125 dB / 119 dB

Recommended Power Amplifier: 250 W to 500 W @ 16 Ohm

Physical Specifications

Connections

(2) Neutrik NL4 Speakon

Pin 1+/-: Full Range

Pin 2+/-: NC

Mounting / Suspension Points

(2) M6 x 1.0 yoke points, (2) M6 x 1.0 pull back points

Dimensions / Weight

See page 5 in spech sheet

Finish

Black painted enclosure w/ matte black grille, or

White painted enclosure w/ matte white grille

Options

YK-CX8 yoke bracket, Terminal strip input, Custom color finish,

Weather-resistant (WR) enclosure & hardware
