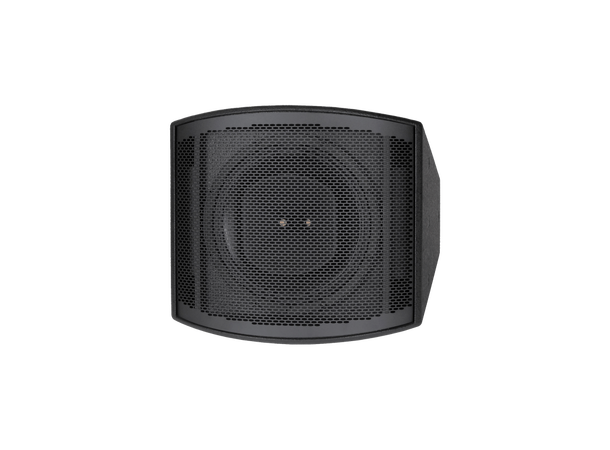

CCX1265
Product Series: TQ Install
Overview
The CCX1265 is a coaxial, passive subcardioid loudspeaker that
provides 9 dB of low frequency attenuation in the rear hemisphere
while still providing the output capability of a normal 2-way system
in a much more compact enclosure. Its coaxial transducer and 60° x
45° horn can be rotated in 45° increments, which allows its coverage
to be tailored to an application’s requirements. The enclosure’s 40°
vertically trapezoidal shape allows it to be mounted very close to
ceilings with minimal effect on sight lines.
Fulcrum Acoustic’s TQ™ processing is an integral part of the CCX1265
design. Sound, innovative acoustical design combined with state
of the art digital processing leads to exceptional clarity and precise
transient response, even at very high sound pressure levels. The
required digital signal processing can be provided by one of many
supported platforms.
The CCX1265 is particularly effective in systems where targeted
pattern control is desirable, and is an excellent solution for high
fidelity, foreground distributed systems. Its unique shape and
compact size complements many architectural styles, which
facilitates acceptance by interior designers and architects.
This makes it the perfect choice for houses of worship, theaters,
restaurants, transportation facilities, theme parks, and more.
Performance Specifications
Operating Mode: Single-amplified w/ DSP
Operating Range: 71 Hz to 20 kHz
Nominal Beamwidth (rotatable): 60° x 45°
Transducers:
HF/LF: Coaxial 3.0” titanium diaphragm compression driver;
12.0” woofer, 3.0” voice coil; single neodymium magnet
Power Handling @ Nominal Impedance: 57 V / 400 W @ 8 O
Nominal Sensitivity @ Input Voltage: (whole space): 104 dB @ 2.83 V
Nominal Maximum SPL (peak / continuous): 136dB / 130dB
Equalized Sensitivity @ Input Voltage: 96 dB @ 2.83 V
Equalized Maximum SPL 6 (peak / continuous): 128 dB / 122 dB
Recommended Power Amplifier: 400 W to 800 W @ 8 Ohm
Physical Specifications
Connections
(2) Neutrik NL4 Speakon
Pin 1+/-: Full Range
Pin 2+/-: NC
Mounting / Suspension Points
(12) M10 x 1.5 eye bolt angle points, (2) M10 x 1.5 yoke points
Dimensions / Weight: See page 5 in spech sheet
Finish
Black painted enclosure w/ matte black grille, or
White painted enclosure w/ matte white grille
Options
YK-CX12 yoke bracket, Terminal strip input, Custom color finish,
Weather-resistant (WR) enclosure & hardware
