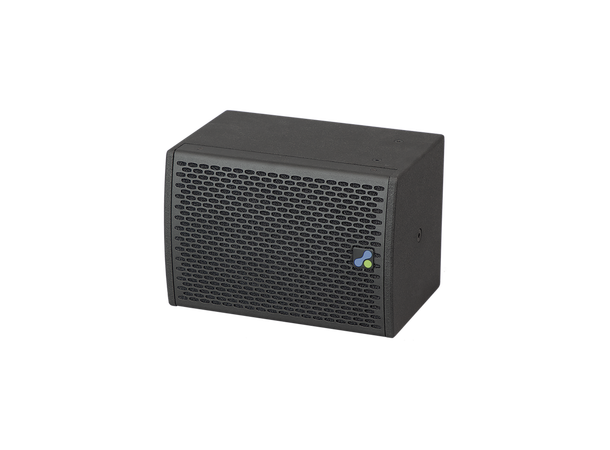

RX5 – 5.25” Coaxial Loudspeaker
Black | Product Series: TQ Install
Removable Phoenix terminal block model.
The RX5 is a high-fidelity coaxial loudspeaker that is an excellent option any time moderately high SPLs are required but limited space is available. Its broad 90° x 75° coverage is particularly effective in close quarters. Spoken word sounds very natural, and the coaxial design assures that this remains so even off-axis. The RX5’s compact, horizontal enclosure may be mounted close to walls or ceilings, under balconies, or along a stage front with minimal effect on sight lines. Its small size also allows it to be readily concealed within a venue’s architecture when the loudspeaker must be hidden from view.
- RX5 – 5.25” Coaxial Loudspeaker
- 90° x 75° Coverage Pattern
- Optional UB-RX5 Yoke Bracket available
- Operating Mode: Single-amplified w/ DSP
- Operating Range: 100 Hz to 20 kHz
- HF/LF Transducers: Coaxial 1.0” diaphragm compression driver, neodymium magnet; 5.25” woofer, 1.7” voice coil, ceramic magnet
- Power Handling at Nominal Impedance: HF/LF 150 W @ 16 O
- Equalized Maximum SPL (peak / continuous): 117 dB / 111 dB

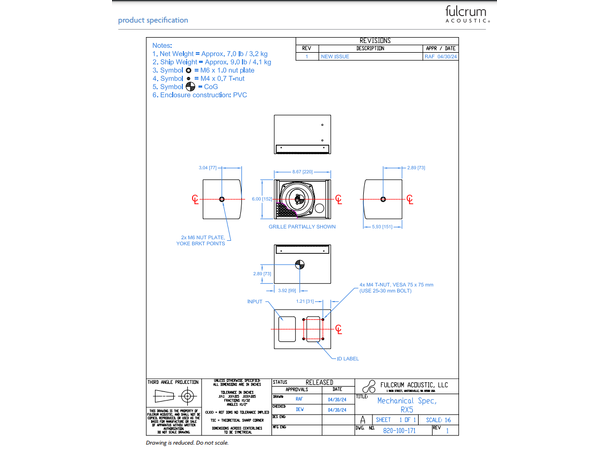

The RX5 is a high-efficiency, high-fidelity coaxial loudspeaker that provides output capability typical of a much larger loudspeaker. The transducer’s high efficiency and horn-loaded HF compression driver give the RX5 a surprisingly high output-to-size ratio, and its broad 90° x 75° coverage is particularly effective in close quarters. The RX5’s compact, horizontal enclosure may be mounted close to walls or ceilings, under balconies, or along a stage front with minimal effect on sight lines. Its small size also allows it to be readily concealed within a venue’s architecture when the loudspeaker must be hidden from view. An assortment of M6 and VESA points facilitate installation with an optional Fulcrum UB-RX5 yoke bracket or third-party mounting solutions.
Fulcrum Acoustic’s TQ™ processing is an integral part of the RX5 design. Sound, innovative acoustical design combined with state of the art digital processing leads to exceptional clarity and precise transient response, even at very high sound pressure levels. The required digital signal processing can be provided by one of many supported platforms.
The RX5 is an excellent option any time moderately high SPLs are required but limited space is available. Spoken word sounds very natural, and the coaxial design assures that this remains so even off-axis. Low frequency extension to 100 Hz enables it to integrate well with subwoofers for full range music reproduction. The RX5 is a perfect choice for delay fill, background music, and speech reproduction systems, which makes it ideal for houses of worship, theaters, restaurants, nightclubs, museum kiosks, theme parks, and more.
