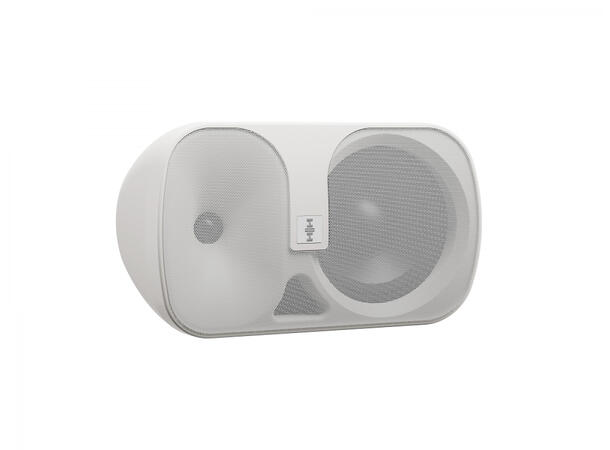

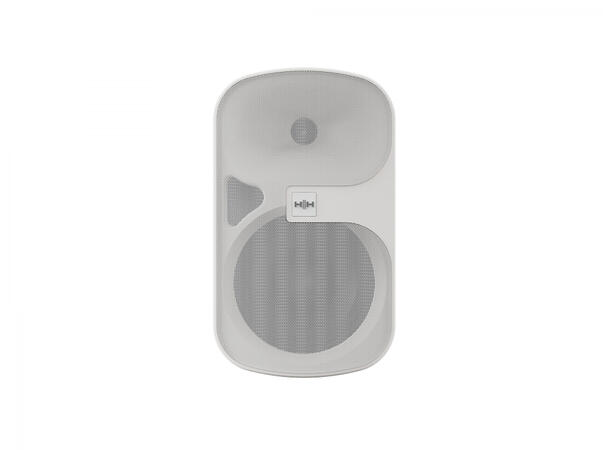

HH Speaker Tessen TNi-W6-WH - White
6,5+1" 40W@100V 55W@8 Ohm
The TNi-W6 delivers professional audio output and versatility within a compact, wall mount speaker enclosure. The TNi-W6 – 6.5 inch passive speaker - features 4 power tappings ranging from 2.5W - 40W and can be connected to 70V/100V or 8 ohm low impedance lines. Equipped with euroblock and m4 screw terminals, The TNi-W6 offers a wide array of connections within a single unit. With solid steel, multi-angle bracket included, The TNi-W6 comes with all essential installation components.
| 100V Power Options |
40W, 20W, 10W, 5W |
| 70V Power Options |
20W, 10W,
5W, 2.5W |
| Frequency Response (-10) |
65Hz >
20KHz |
| Frequency Response (-3) |
80Hz -
18KHz |
| LF Driver |
6.5 inch
Paper |
| HF Driver |
1"
DOME TWEETER |
| Low Nominal System Impedance |
8 OHM |
| Power |
55W AES,
220W Peak |
| Max SPL (1M) (Peak) |
113 dB SPL |
| Sensitivity (1W/1M) |
90 DB SPL |
| Recommended Amplifer |
100-200W @
8 Ohms |
| Horiz. Dispersion Angle 1000Hz |
90° |
| Vertical Dispersion Angle 1000Hz |
80° |

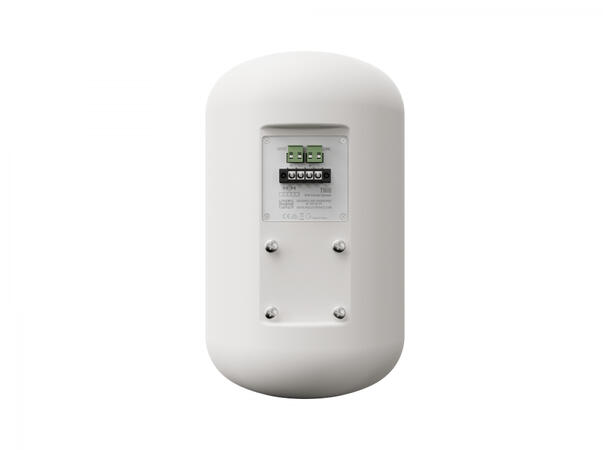

| Input Connector |
EUROBLOCK
AND M4 TERMINALS |
| Link Connector |
EUROBLOCK
AND M4 TERMINALS |

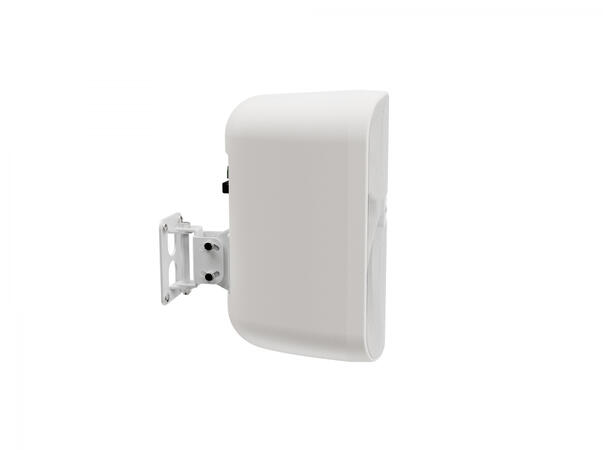

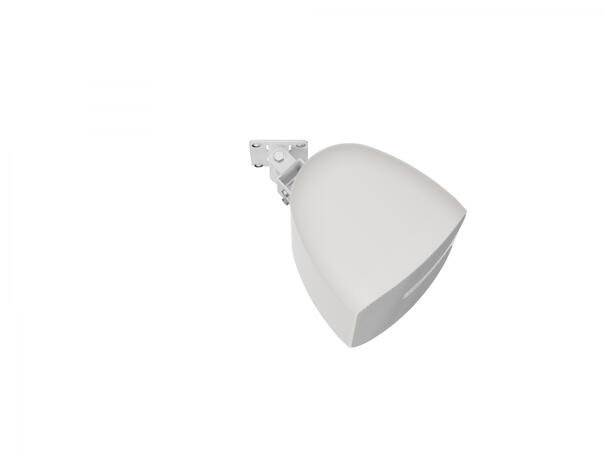

| Mounting Bracket |
ADJUSTABLE
STEEL BRACKET INCLUDED |
| Unit Dimensions (Hwd) |
330 X 196 X
281MM, 13" X 7.7" X 11.1" |
| Unit Weight |
3.45KG, 7.6
LBS |
| Main Construction Material |
ABS PLASTIC |
| Grille |
WHITE,
CIRCULAR STEEL MESH |
| Finish |
White |
