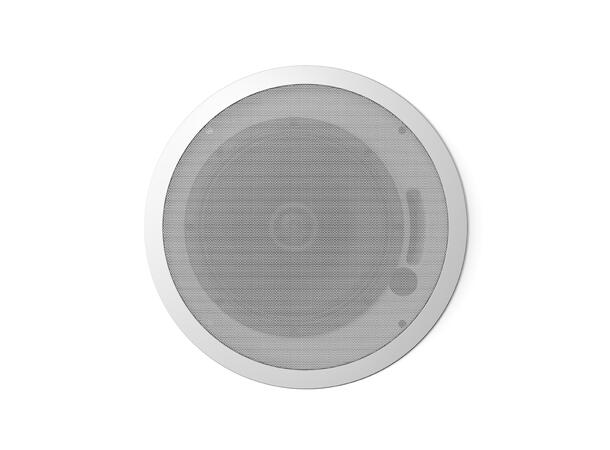

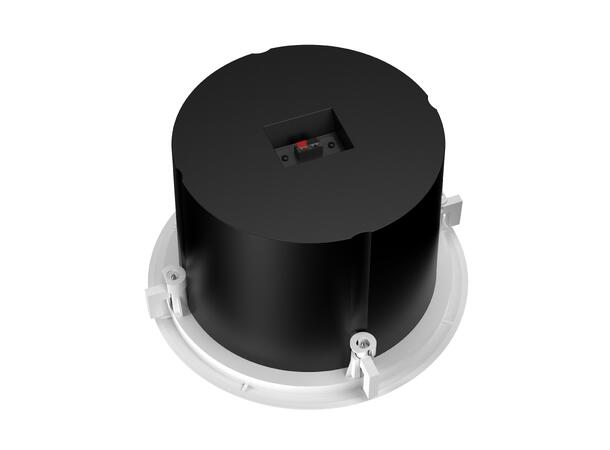

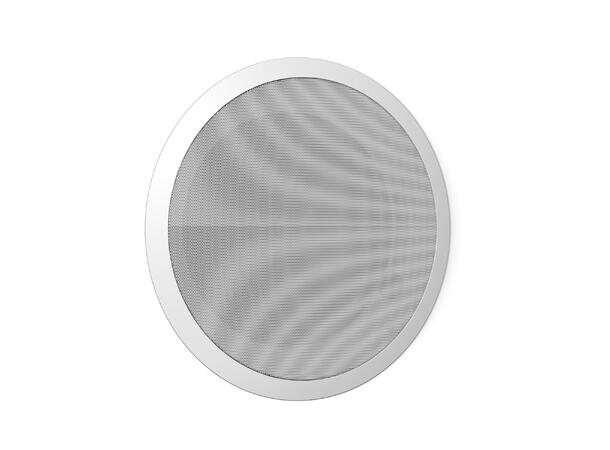

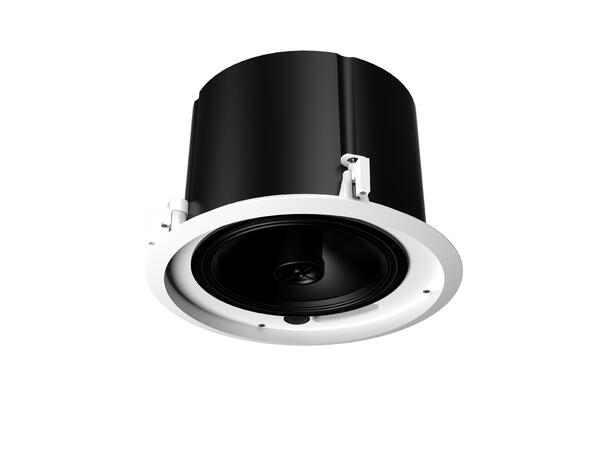

HH Ceilingspeaker TESSEN TNi-C8
8+1" 40W@100V 65W@ 8 Ohm White
The Tessen TNi-C8 delivers premium audio reinforcement. designed with the installer in mind, The TNi-C8 – 8 inch coaxial ceiling speaker - features a 6 position power tap selector located under the front steel grille, providing swift output adjustment once installed. With connectivity for 70V/100V and 8 ohm low impedance lines, the TNi-C8 delivers a highly flexible solution. The spring connection terminals ensure cables are secure once fitted.
| 100V Power Options |
40W, 20W, 10W |
| 70V Power Options |
20W, 10W,
5W |
| Frequency Response (-10) |
65Hz >
20kHz |
| Frequency Response (-3) |
80Hz -
16KHz |
| LF Driver |
8 Inch,
Paper Cone |
| HF Driver |
1.5 INCH
NEODYMIUM |
| Low Nominal System Impedance |
8 OHM |
| Power |
65W AES,
260W Peak |
| Max SPL (1M) (Peak) |
115 dB SPL |
| Sensitivity (1W/1M) |
91 dB SPL |
| Nominal Coverage |
100°
conical |
| Input Connector |
PUSH SPRING
CONNECTORS |
| Mounting Points |
4X DOG EAR
BRACKETS |
| Mounting Depth |
195MM,
(7.7") |
| Installation Grip Range |
4 - 20MM |
| Cutout |
275MM,
(10.8") |
| Outside Diameter |
300MM,
(11.8") |
| Unit Weight |
2.6KG, 5.7
LBS |
| Main Construction Material |
ABS PLASTIC |
| Grille |
1.5MM
CIRCULAR MESH STEEL |
| Finish |
WHITE |
