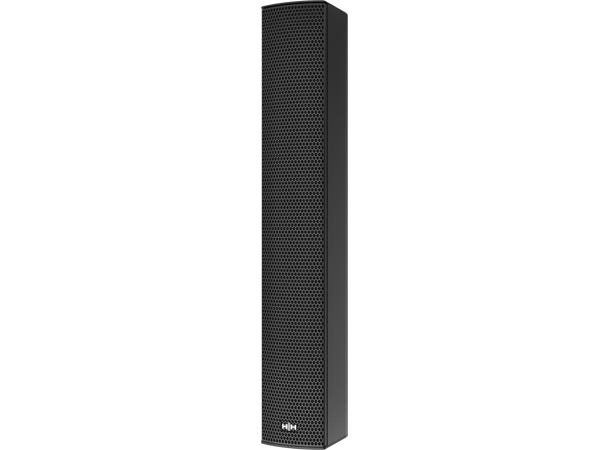

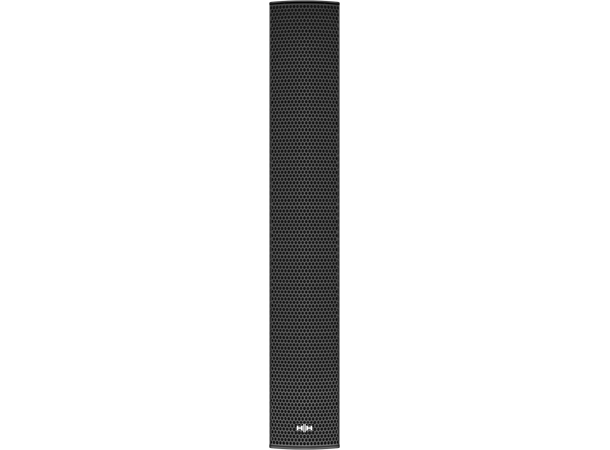

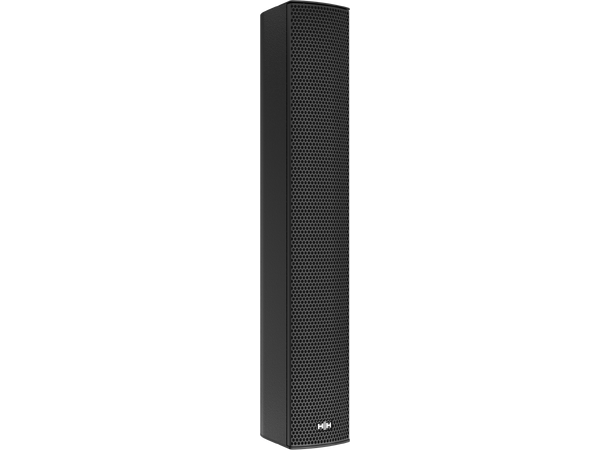

CL32-Black
The CL32 is an elegant 2-way passive column array speaker system that comprises 8 x 4” mid-frequency
drivers alongside 25 x 0.75” high-frequency drivers with a maximum SPL of 130dB (peak).
The Cl32 has a horizontal dispersion angle of 100° (-6dB), and a vertical coverage angle of 35° (-6dB). The
CL32 can be combined with either the CL32J or CL16J to form a larger column speaker system.
Mounting options include 2 x M8 mounting points for the included CL32-FLB bracket. The rear panel offers
input connection via Euroblock.
The wooden enclosure is composed of birch and finished in a scratch/wear-resistant paint, with a perforated
hexagonal mesh steel grille with acoustic foam backing. Available in black or white.
FEATURES
• 8 x 4” mid-frequency drivers, 24 x 0.75” high-frequency
drivers.
• 130dB Max SPL (Peak).
• Frequency Response of 70Hz - 20kHz(±3dB).
• 100° (H) x 35° (V) dispersion angle.
• Robust wooden enclosure with a wear-resistant finish.
• Mounting bracket included.
APPLICATIONS
• Houses of Worship
• Museums
• Public Transport Stations
• Conference Spaces
• Lecture Halls
• Live Sound Reinforcement
SPECIFICATIONS
| System
Type |
Column Array PA System |
| Frequency Response |
70Hz - 20kHz (±3dB), 53Hz - 23kHz (-10dB) |
| Horizontal Coverage Angle |
100° (-6dB) |
| Vertical Coverage Angle |
35° (-6dB) |
| Power Rating |
400W RMS, 800W Program, 1600W Peak |
| Maximum SPL |
127dB Continuous, 130dB Peak |
| Sensitivity |
101dB |
| Nominal Impedance |
4O |
| MF Driver |
8 x 4" mid-frequency drivers |
| HF Driver |
24 x 0.75" high-frequency drivers |
| Drive Mode |
Two-way PASSIVE |
| Cabinet |
Birch |
| Finish |
Scratch-resistant and wear-resistant paint finish (White or
Black option) |
| Grille |
Hexagonal mesh perforated steel with acoustic foam backing |
| Fittings |
Connection parts, Threaded pole-mount socket, Mounting points |
| Mounting Bracket |
2 x M8 mounting points for standard CL32-FLB |
| Connectors |
Removable locking connector with screw terminals |
| Pin Connections (Input) |
+/- |
| Dimensions (H/W/D) |
878 x 140 x 185 mm |
