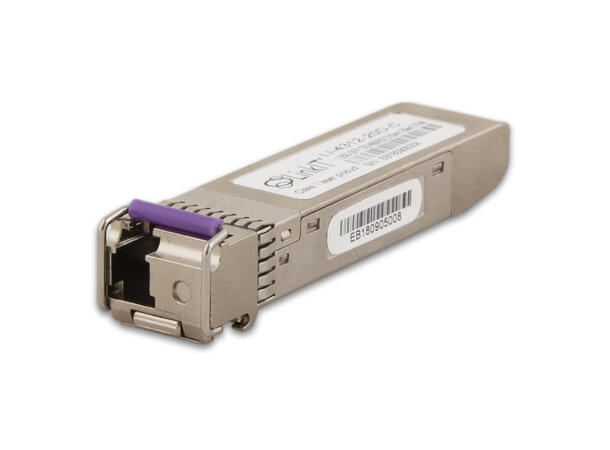

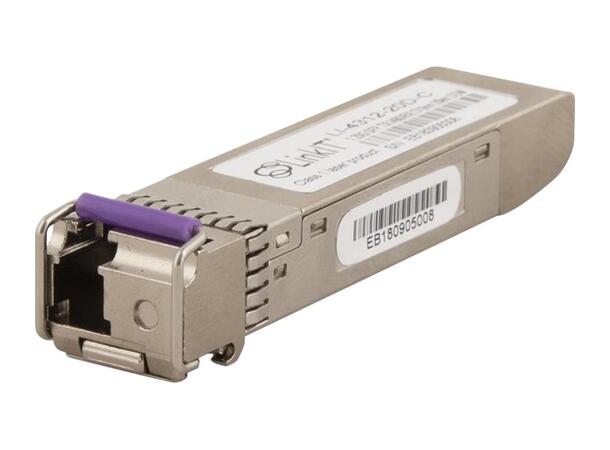

LinkIT SFP 1,25Gbps BiDi 40km Cisco
LC | DDM | Single-mode | Tx: 1550 nm/Rx: 1310 nm
This is a high-performance SFP transceiver module designed for reliable data transmission in networking applications. Supporting 1GbE with a data transfer rate of 1.25 Gbps, this mini-GBIC module features a compact plug-in form factor and is optimized for long-range communication, capable of transmitting data up to 40 km. With dual optical wavelengths (1550 nm for transmission and 1310 nm for reception) and Digital Diagnostics Monitoring (DDM) capabilities, it ensures efficient and effective network performance.
Specifications
| Device Type |
SFP Transceiver
Module (Mini-GBIC) - LC Single-Mode |
| Form Factor |
Plug-in Module |
| Cable Type |
1000Base-BiDi |
| Data Transfer Rate |
1.25 Gbps |
| Optical Wavelength |
1550 nm (TX) / 1310 nm (RX) |
| Data Link Protocol |
1GbE |
| Maximum
Transmission Distance |
40 km |
Compliance Standards
- IEC 61000-4-2
- IEC 61000-4-3
- RoHS
- Laser Class 1
- IEC 60825-1
- EN 60825-1
- MSA
- GR-1089-CORE
- EN 55024:1998 + A1 + A2
- EN 55024:2010 + A1:2015
Environmental Parameters
- Minimum Operating Temperature: 0 °C
- Maximum Operating Temperature: 70 °C
