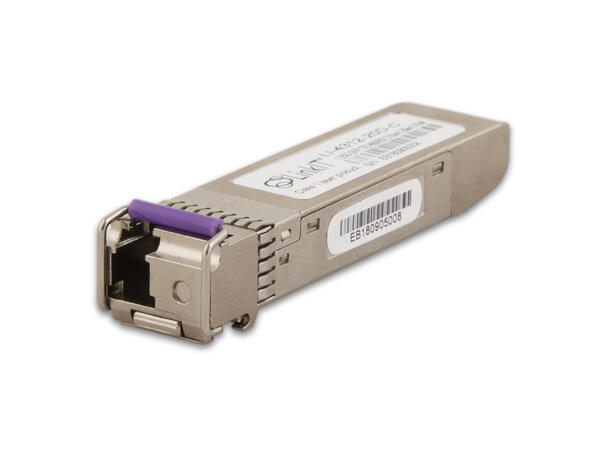

LinkIT SFP 1.25Gbps BiDi 80km HP LC | DDM | Single-mode | TX/RX:1490/1550 LinkIT SFP 1.25Gbps BiDi 80km HP LC | DDM | Single-mode | TX/RX:1490/1550

LinkIT SFP 1.25Gbps BiDi 80km HP

LC | DDM | Single-mode | TX/RX:1490/1550

Varenr: 114760
Alt. varenr: LI-4512-80D-HP
BeskrivelseEkstern InfoTeknisk info
Beskrivelse

LinkIT SFP 1.25Gbps BiDi 80km HP

LC | DDM | Single-mode | TX/RX:1490/1550



Product Features

  • Data Rate: Supports up to 1.25 Gb/s data links
  • Wavelength Types:
    • Type A: 1490nm DFB Transmitter / 1550nm Receiver
    • Type B: 1550nm DFB Transmitter / 1490nm Receiver
  • Form Factor: Hot-pluggable SFP footprint for flexible installation
  • Connector Type: Single LC connector for bi-directional transmission, reducing cabling requirements
  • Diagnostics: Built-in digital diagnostic functions for real-time monitoring
  • Range: Supports distances up to 80 km on 9/125 µm single-mode fiber (SMF)
  • Power Supply: Operates on a single +3.3V power source
  • Operating Temperature Ranges:
    • Standard: 0°C to +70°C
    • Industrial: -40°C to +85°C
  • Protection: Very low EMI and excellent ESD protection, ensuring stability in various environments
  • Compliance: RoHS compliant and Lead-Free for environmental safety



Applications

  • 1000Base Ethernet
  • Metro and Access Networks
  • 1× Fibre Channel
  • Other Optical Links
Ekstern Info
Teknisk info

Produktinformasjon

Koding HP
