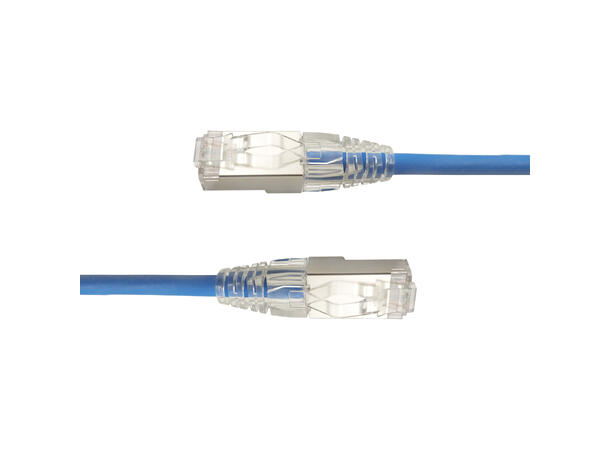

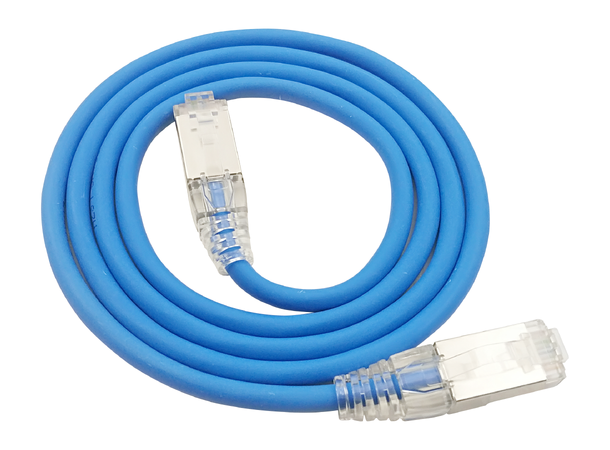

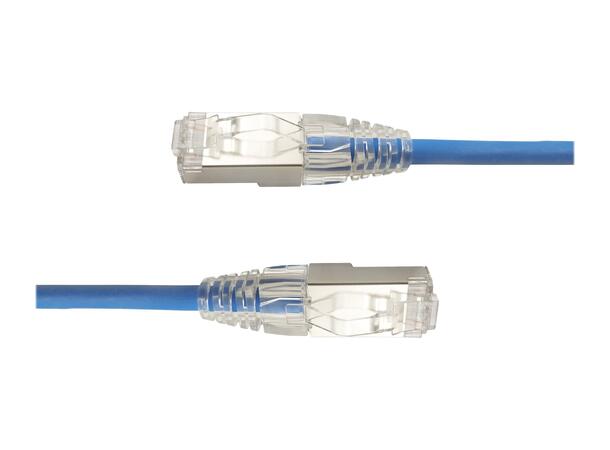

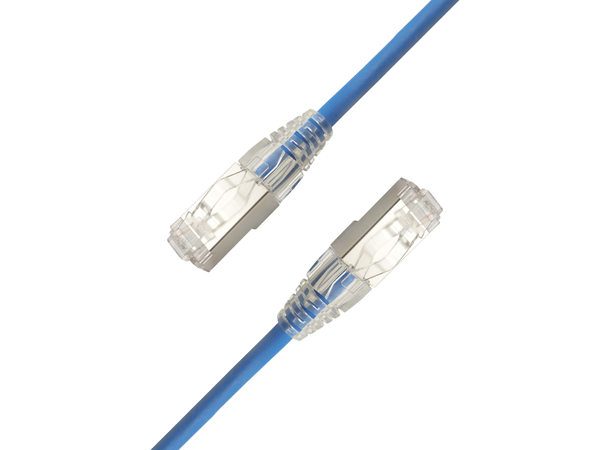

LinkIT SlimPatch F/UTP Cat6a Blue 0.2m
AWG 28/1 | LSZH | 4.7mm
Slim network cable for demanding installations, modern construction that can handle 10Gbps and PoE++
- 50µin gold plated
- Very flexible
- Low cable diameter
- Tanglefree lock
- High-quality clear plug
LinkIt Patch Cat.6a cables stand out with their impressive 50-micron gold plating, providing exceptional corrosion protection and optimal signal transmission. Another important feature is support for the PoE++ (Power over Ethernet++) standard, enabling robust power delivery over network cables. This makes the device ideal for power-hungry applications such as cameras, access points, and other devices that require extra power.
The modular plug is equipped with a tangle-free lock that prevents annoying cable tangles and ensures a seamless connection experience. The cable comes with a high-quality clear plug, providing extra strength and protection to the cable ends and ensuring durability and reliability, even in demanding environments.
The cable’s performance meets the requirements for Cat.6a (ANSI/TIA-568-C.2 and ISO 11801).
Main Specifications
| Length (m) | 0.2 |
|---|
| Cable type | F/UTP |
|---|
| Color | Blue |
|---|
| Category | Cat.6a Slim |
|---|
| Brand | LinkIT |
|---|
| Conductor material | Copper |
|---|
| Connector type 1 | RJ-45 male (8P8C) |
|---|
| Connector type 2 | RJ-45 male (8P8C) |
|---|
| Cable shielding | F/UTP – foiled shielding/unshielded twisted pairs |
|---|
| Conductor design | Solid |
|---|
Extended Specifications
| Anti-kink sleeve | 6.2mm |
|---|
| Directional | No |
|---|
| Cable fire class | Eca |
|---|
| AWG wire size | 28 |
|---|
| Transmission speed | 10Gbps |
|---|
| Frequency (Mhz) | 500 |
|---|
| Cable structure | 4 x 2 AWG 28/1 (Solid) |
|---|
| Locking type | Snagless |
|---|
| NVP value | 69% |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Assembled |
|---|
| Pin Assignment | 1-2;3-6;4-5;7-8 |
|---|
| Halogenfree | Yes |
|---|
| Oil resistant | No |
|---|
| Fire retardant version | Yes |
|---|
| Connector contact plating | 50µin gold plated |
|---|
| Certifications | CE, RoHS |
|---|
| Cable Diameter (mm) | 4.7 |
|---|
| Temperature | -20ºC to + 75ºC |
|---|
