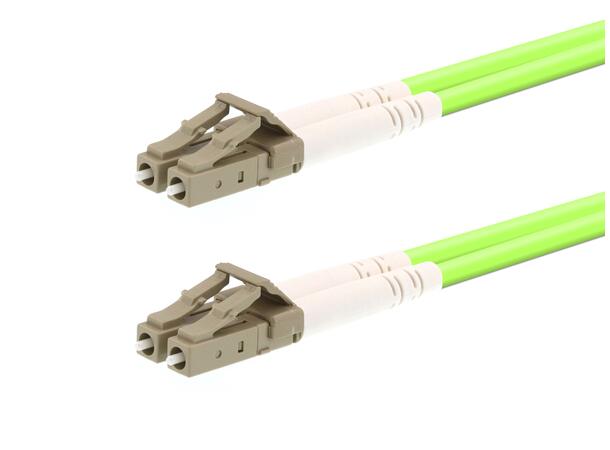

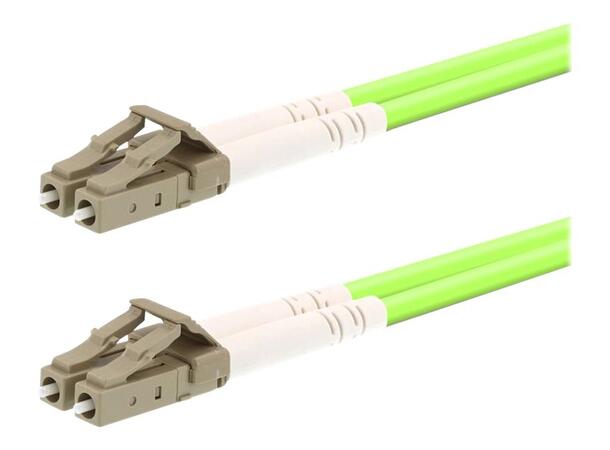

LinkIT Fibre Optic Cable OM5 LC/LC Lime 2m
WDM 100G | Duplex | MM 50/125 | LSZH
Our OM5 multimode fiber patch cords are 100% tested and certified. They are designed for wavelengths between 840nm and 953nm. They support SWDM. They are VCSEL laser optimized. UPC polished (Ultra Physical Contact). For 100Gb up to 150 meters. 2mm diameter of cable.
- OM5 Duplex cable
- Multimode
- LSZH
- Lime Green
Main Specifications
| Length (m) | 2 |
|---|
| Color | Lime Green |
|---|
| Category | OM5 |
|---|
| Brand | LinkIT |
|---|
| Connector type 1 | LC |
|---|
| Connector type 2 | LC |
|---|
| Polishing contact 1 | PC |
|---|
| Polishing contact 2 | PC |
|---|
| Cable type | Duplex |
|---|
| Number of fibers | 2 |
|---|
| Core Diameter (um) | 50/125 Multimode |
|---|
Extended Specifications
| Maximum bend (mm) | 20 |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Optical Return Loss (dB) | > 30dB |
|---|
| Halogenfree | Yes |
|---|
| Cable Diameter (mm) | 2mm |
|---|
| Certifications | CE, RoHS |
|---|
