LinkIT fibersnor OS2 LC-UPC/SC-APC 40m

Duplex | SM | LSZH

Varenr: 127783
Alt. varenr: FPD92SALU-400
BeskrivelseEkstern InfoTeknisk info
Beskrivelse

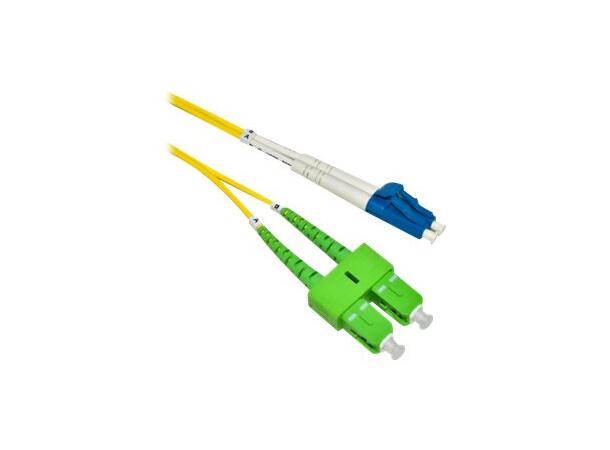

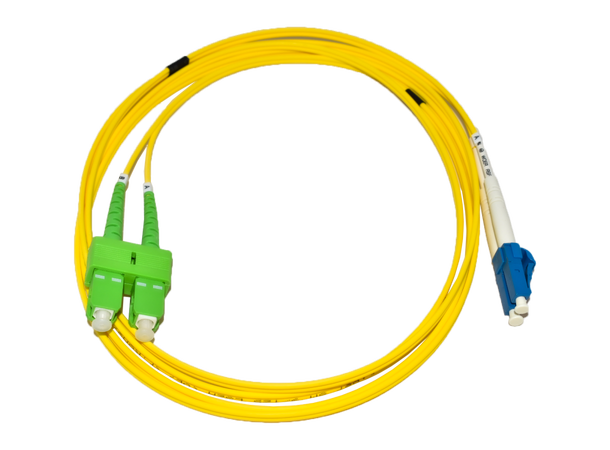

LinkIT fibersnor OS2 LC-UPC/SC-APC, Duplex, Single-mode, G657A2 Yellow


Specifications:
•Connector type: LC-SC
•Fiber mode: SM G657A2
•Fiber grade: G.657.A2 and G.652.D
•Polish: UPC(blue)/APC(green)
•Cable jacket: LSZH
•Color: Yellow
•Cable diameter: 2mm
•Minimum Bend Radis: 20mm
•Tensile loads: 150N
•Insertion loss: <0,3dB
•Return loss: APC > 65dB
•Wave lenght: 1310/1550nm
•Durability: 500 matings
•Operation/storage temp.: -40 - +75 degrees Celsius
•Fire properties: Fire retardant and halogen-free IEC 60332-3-24, IEC 60332-1-2, IEC 61034, IEC 60754-1
•IEC Standards: all CENELEC standards requiered.

Ekstern Info
Teknisk info

Produktinformasjon

EL-nummer 6955847
Farge Gul
Kabeltype Fibersnor
Konnektorer LC-UPC/SC-APC
Lengde 40 m
Teknologi Duplex
Ytterkappe LSZH (Halogenfri)
