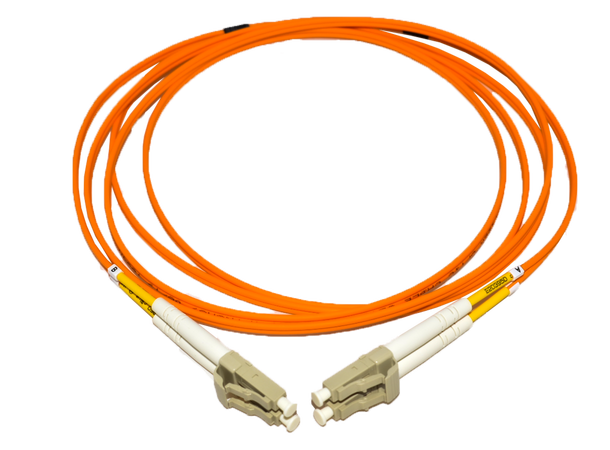

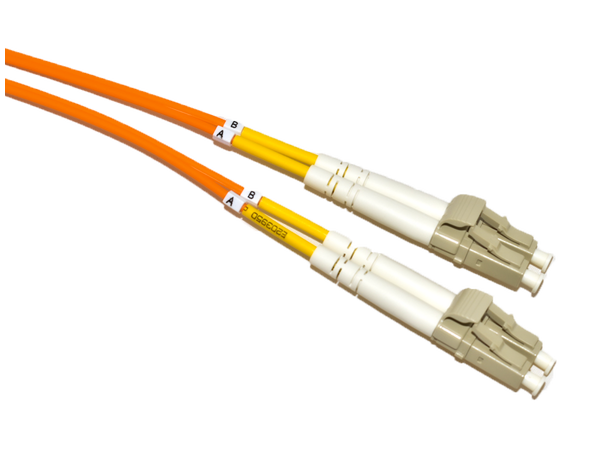

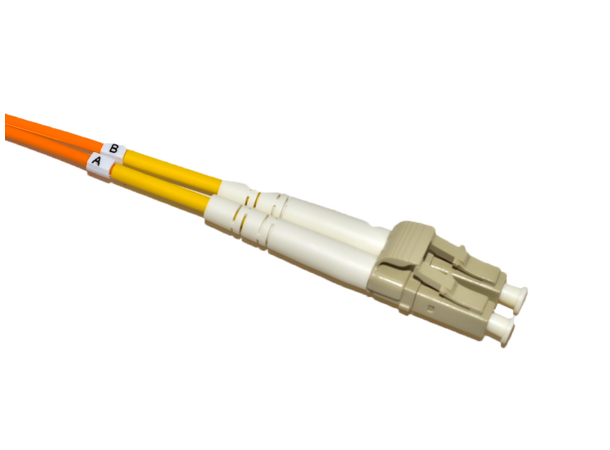

LinkIT Fibre Optic Cable OM1 LC/LC 3m
Duplex | MM | LSZH | Orange
Cost-effective fiber cable solution for card transmission. Our OM1 multimode fiber patch cords are 100% tested and certified. Designed for high-speed and older networks such as Fast Ethernet, Gigabit Ethernet and Fiber Channel, they support 1G data speeds of up to 550 m and 10Gb up to 33 m.
OM1 is a multi-mode fiber with a core diameter of 62,5 µm
- OM1 Duplex cable
- Multimode
- LSZH
- Orange
Main Specifications
| Length (m) | 3 |
|---|
| Color | Orange |
|---|
| Category | OM1 |
|---|
| Brand | LinkIT |
|---|
| Connector type 1 | LC |
|---|
| Connector type 2 | LC |
|---|
| Polishing contact 1 | PC |
|---|
| Polishing contact 2 | PC |
|---|
| Cable type | Duplex |
|---|
| Number of fibers | 2 |
|---|
| Core Diameter (um) | 62.5/125 Multimode |
|---|
Extended Specifications
| Maximum bend (mm) | 20 |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Halogenfree | Yes |
|---|
| Oil resistant | No |
|---|
| Fire retardant version | Yes |
|---|
| Cable Diameter (mm) | 2 |
|---|
| Certifications | CE, RoHS |
|---|
