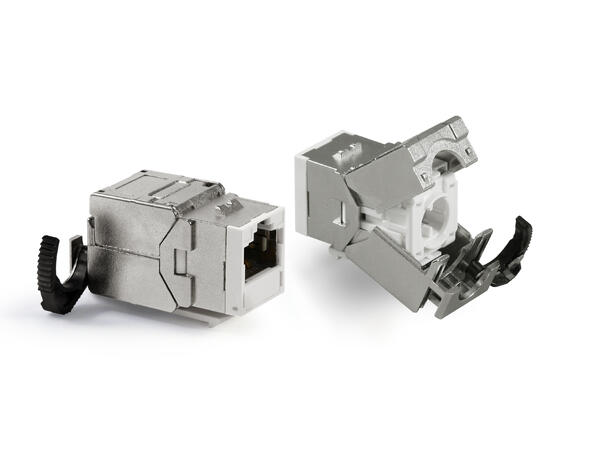

LinkIT Keystonemodule Cat.6A STP PoE++ 23-26/1 AWG | Support 100W PoE type 4 LinkIT Keystonemodule Cat.6A STP PoE++ 23-26/1 AWG | Support 100W PoE type 4

LinkIT Keystonemodule Cat.6A STP PoE++

23-26/1 AWG | Support 100W PoE type 4

Varenr: 131933
Alt. varenr: LI-KSM-C6ASTP-PoE4
BeskrivelseEkstern InfoTeknisk info
Beskrivelse

LinkIT Keystonemodule Cat.6A STP PoE++

23-26/1 AWG | Support 100W PoE type 4



Qualified Screened Cat.6A Connecting Hardware

  • Approved for PoE++ type4
  • Supports the IEC 60512-99-002 standard of 90W / 2A to prevent arcs that may damage connected equipment and surroundings.

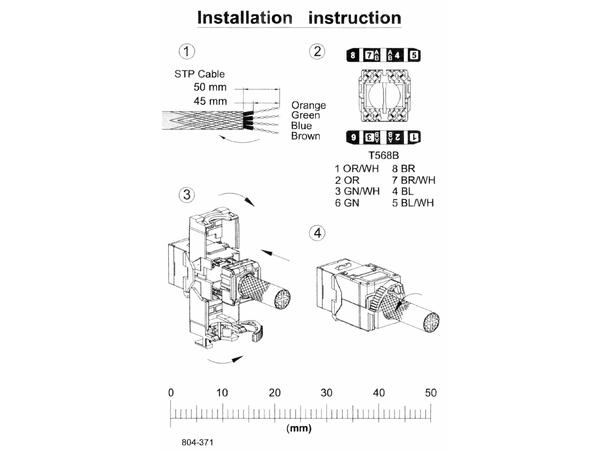

  • Auto Press Fit ensures that the connector is terminated precisely and with the same force every time.



Main Specifications

Brand LinkIT
Color Grey
Category Cat.6a
Cable shielding STP
Material Steel



Extended Specifications

AWG wire size 23-26
Transmission speed 10Gbps
Standards IEC 60603-7-51, ISO/IEC 11801 2.2 Edition, CENELEC EN 50173-1, IEC 60512-99-002:2019
EAN 7072262011486
Certifications CE, REACH, RoHS



Ekstern Info
Teknisk info

Produktinformasjon

EL-nummer 1014380
Kabelkategori Cat.6a
