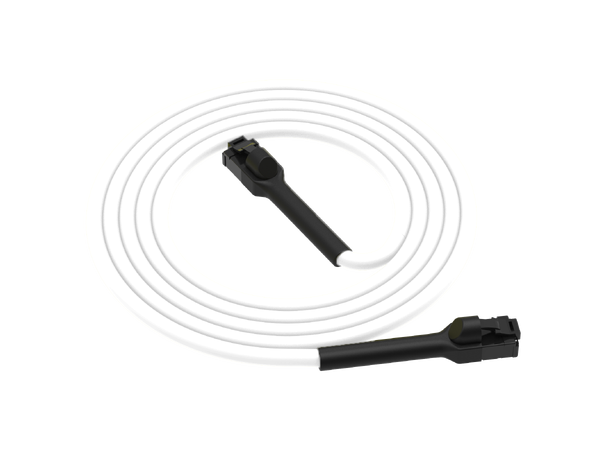

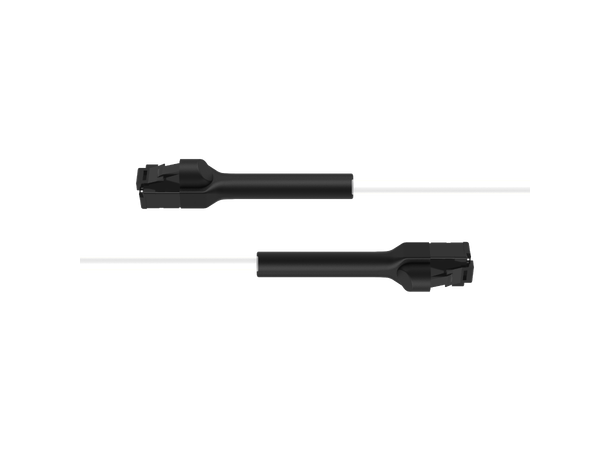

LinkIT Flexi-boot U/UTP Cat6a hvit 1m AWG28/7 | LSZH | 3,6mm LinkIT Flexi-boot U/UTP Cat6a hvit 1m AWG28/7 | LSZH | 3,6mm LinkIT Flexi-boot U/UTP Cat6a hvit 1m AWG28/7 | LSZH | 3,6mm

LinkIT Flexi-boot U/UTP Cat6a hvit 1m

AWG28/7 | LSZH | 3,6mm

Varenr: 133000
Alt. varenr: LI-C6AUUTP-SFB-0010W
BeskrivelseEkstern InfoTeknisk info
Beskrivelse

LinkIT Flexi-Boot U/UTP Cat.6a White m

SlimPatch | AWG28 | LSZH | OD3,6mm

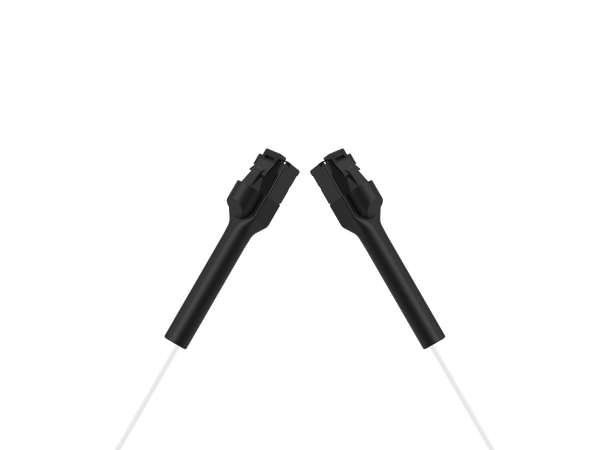

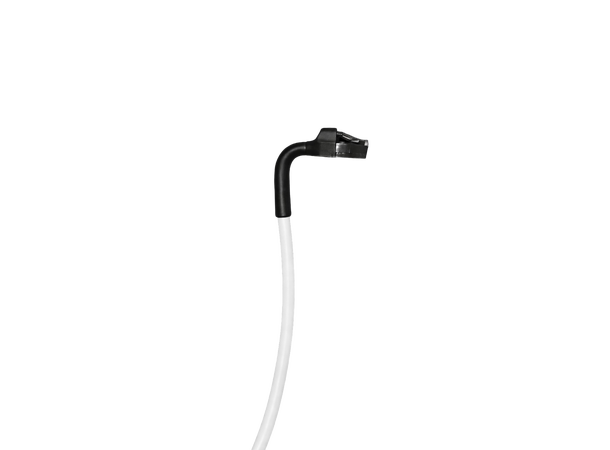

Full flexible boot that can be bend in all angles 0-360 degrees

  • 50 micron goldplated plug with LSZH jacket
  • The U/UTP 28AWG cables fully meet the PoE; PoE+;PoE++.
  • Fluke DSX 8000 channel tested.



LinkIT U/UTP Slim Cat. 6a is a network cable engineered for top-tier performance and versatility. With its fully flexible boot, this cable effortlessly bends at any angle from 0 to 360 degrees. Crafted with LSZH (Low Smoke Zero Halogen) jacketing, it prioritizes safety by ensuring minimal smoke emission and toxicity in case of a fire. Despite its slender outer diameter of just 3.6mm, it boasts robustness and space-saving qualities. The cable’s 50-micron gold-plated plugs guarantee reliable data transmission, Fluke DSX 8000 channel tested. Compatible with PoE, PoE+, and PoE++, it’s ideal for powering various network devices



Main Specifications

Brand

LinkIT

Color



Length (m)



Category

Cat.6a Slim

Connector type 1

RJ-45 male (8P8C)

Connector type 2

RJ-45 male (8P8C)

Conductor material

Copper

Cable shielding

U/UTP – unshielded/unshielded twisted pairs

Conductor design

Stranded



Extended Specifications

AWG wire size

28

Frequency (Mhz)

500

Cable structure

4 x 2 AWG 28/7 (Stranded)

Jacket material

LSZH

Pin Assignment

568B-568B

Operating Temperature

-20ºC ~ 60ºC

Cable Diameter (mm)

3.6

Halogenfree

Yes

Fire retardant version

Yes

Core color 1

Orange

Core color 2

Blue

Core color 3

Green

Core Color 4

Brown

Temperature

0ºC ~ 50ºC

Certifications

CE, REACH, RoHS

Ekstern Info
Teknisk info

Produktinformasjon

Farge Hvit
Kabelkategori Cat.6a
Kabeltype
  • Slim
  • Slim Flexible-boot
Lengde 1 m
Ytterkappe LSZH (Halogenfri)
