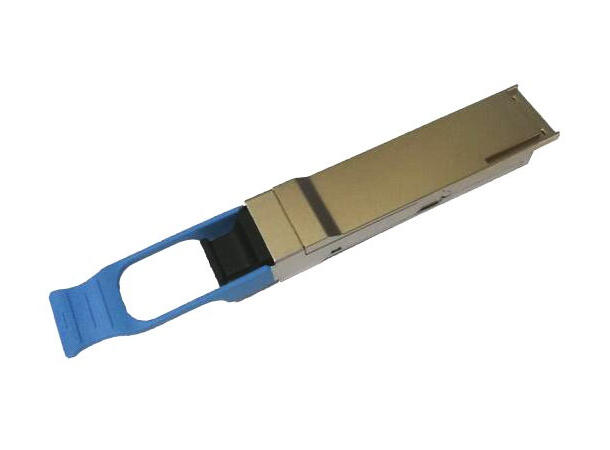

LinkIT QSFP+ 40Gbps LR4 2km LinkIT
Duplex LC | 4x10Gbps | 1310nm | DDM
Support Digital Diagnostic Monitor interface
- Single 3.3V power supply
- RoHS-6 compliant and lead-free
This QSFP+ 40Gbps LR4 transceiver supports aggregate bitrates of up to 41.2 Gb/s with an uncooled 4x10Gb/s transmitter. It offers a maximum link length of 2 kilometers on single-mode fiber (SMF) and features a hot-pluggable QSFP+ footprint with duplex LC receptacles. The transceiver dissipates less than 3.5 watts of power and operates with a single 3.3V power supply. It supports a Digital Diagnostic Monitoring (DDM) interface and is compliant with RoHS-6 and lead-free standards. The case operates within a commercial temperature range of 0°C to +70°C. It is suitable for 40G BASE LR4 Ethernet applications.
Main Specifications
Brand | LinkIT |
---|
Connector type 1 | LC Duplex |
---|
Wave length (nm) | 1310 |
---|
Distance | Up to 2km |
---|
Extended Specifications
Transmission speed | 40Gbps |
---|
Fibre type | SMF |
---|
Standards | QSFP+ MSA, IEEE 802.3ba 40GBASE-LR4 |
---|
Temperature | 0°C to +70°C (Commercial) |
---|
EAN | 7072262018072 |
---|
Certifications | CE, RoHS |
---|
