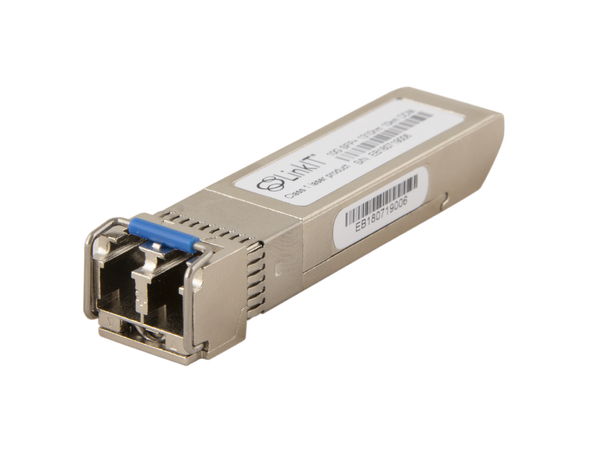

LinkIT SFP+ 10Gbps SR 300m
LC | DDM | Multi-mode | 850nm
PRODUCT FEATURES
- Compliant to SFP+ MSA
- Fully ROHS Compliant
- All metal housing for superior EMI performance
- Operating data rate from 8.5Gbps to 10Gbps
- VCSEL 850nm Laser
- High sensitivity PIN photodiode and TIA
- Up to 300m
- LC duplex connector
- Hot pluggable 20pin connector
- Low power consumption < 1.0W
- 0°C to 70°C operating wide temperature range
- Single +3.3V±5% power supply
- Digital Diagnostic Monitoring sff-8472 Rev 10.2 compliant
- Equal to SFP-10G-SR
APPLICATIONS
- 10GBASE –SR
- 8.5G/10.5G/s Fiber Channel
Compliance
- IEEE 802.3ae 10GBASE –SR
- SFF-8431 Rev 3.0
- SFF-8472 Rev 10.2
- FC-PI-4 Rev 7.0
