LinkIT fiber OS2 8 Core LC-LC 75m
8x fanout | 9/125 | LSZH | PTPS

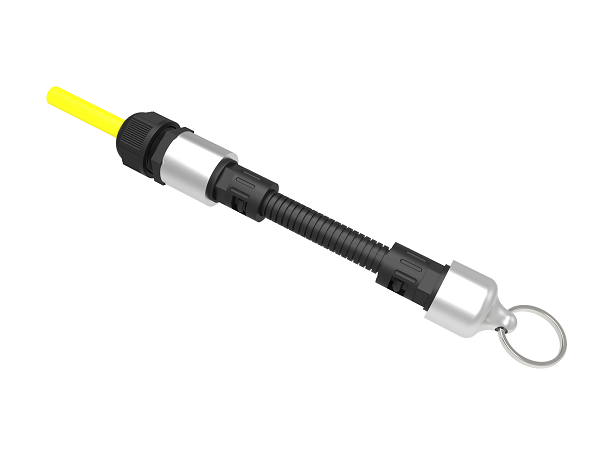

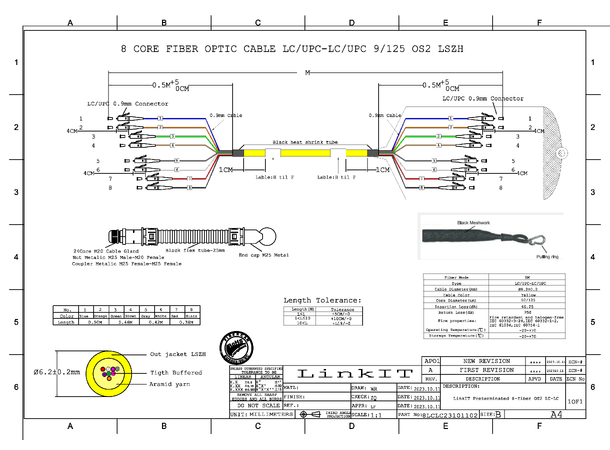

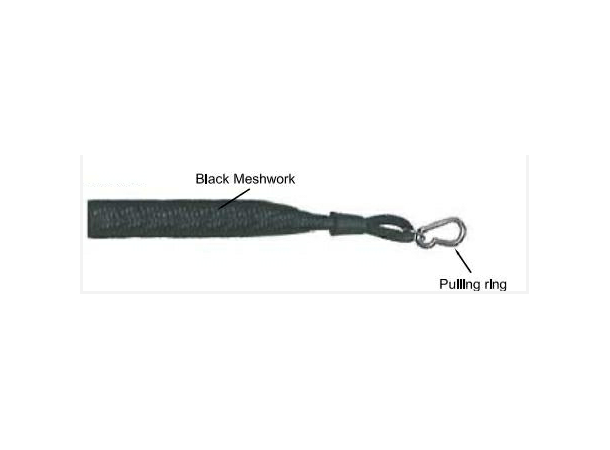

This is a yellow OS2 Singlemode 9/125 fiber cable with eight core fibers. It is preterminated with LC-UPC connectors on both ends (8 connectors on each end). Side A has a pull tube, and side B has a pulling sock. The fanout length is 0.5 meters with a diameter of 0.9 mm. It can operate in temperatures from -20°C to +70°C. The cable has a tight buffered structure with G652D fibers and a diameter of 6.2 mm. It weighs 67 g per meter and is halogen-free (LSZH), suitable for both indoor and outdoor use.
- 8 core, fanout both ends
- Halogenfree cable (LSZH)
- Tight buffered
- Yellow
Main Specifications
Brand | LinkIT |
---|
Color | Yellow |
---|
Length (m) | 75 |
---|
Category | OS2 8 fiber |
---|
Connector type 1 | LC |
---|
Connector type 2 | LC |
---|
Polishing contact 1 | UPC |
---|
Polishing contact 2 | UPC |
---|
Number of fibers | 8 |
---|
Core Diameter (um) | 9/125 Singlemode |
---|
Extended Specifications
Optical Return Loss (dB) | >50 |
---|
Insertion Loss (dB) | <0.25 |
---|
Operating Temperature | -20~+70 |
---|
Storage Temperature | -20~+70 |
---|
Cable Diameter (mm) | 6.2 |
---|
Fire properties | IEC 60332-1-2, IEC 60754-1 , IEC 61034, IEC-60332-3-24 |
---|
Halogenfree | Yes |
---|
EAN | 7072262021409 |
---|
Tensile loads (N) | N1200 / 500 |
---|
Fanout | 0,5 meter / Ø0,9mm |
---|
Certifications | CE, REACH, RoHS |
---|
Max bend radius (D) | 20D / 10D |
---|
