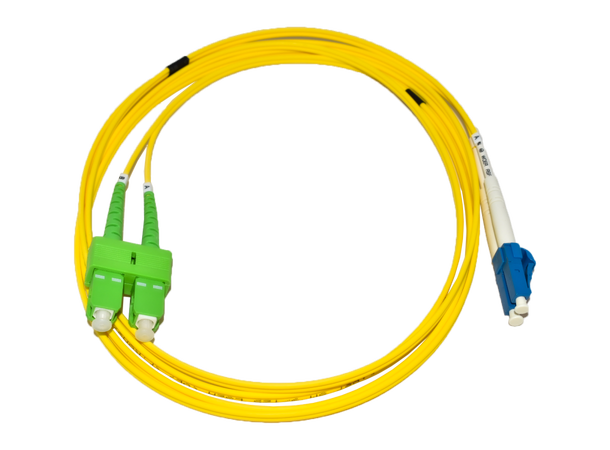

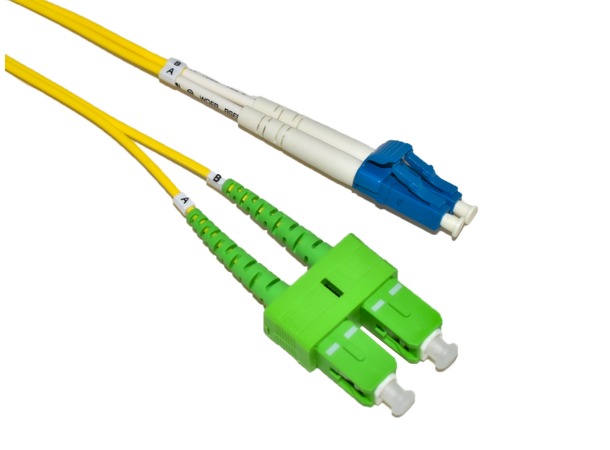

LinkIT fiber patch OS2 LC-UPC/SC-APC 2m
Duplex | SM | LSZH
With LC / UPC to SC / APC connectors, this fiber patch cable is ready for distribution in any single mode 9/125 network. Single mode 9/125 is best used for long cable runs. This single-mode, double-sided fiber cable consists of corning optical fiber with ceramic connectors. The contacts use APC (Angled Physical Contact) polish and UPC (Ultra Physical Contact) Polish.
- OS2 Duplex cable
- Singlemode
- LSZH
- Yellow
Main Specifications
| Length (m) | 2 |
|---|
| Color | Yellow |
|---|
| Category | OS2 |
|---|
| Brand | LinkIT |
|---|

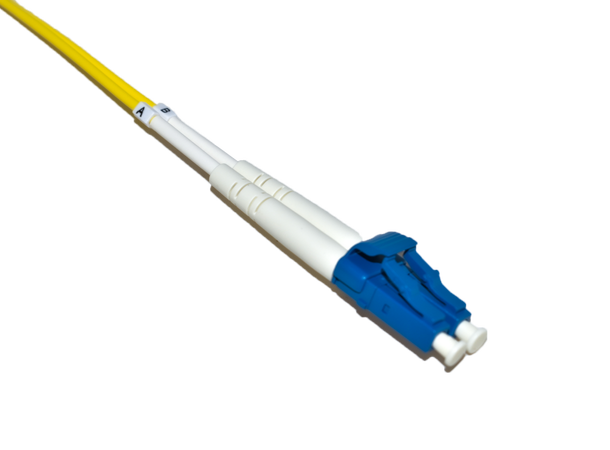

| Connector type 1 | LC |
|---|

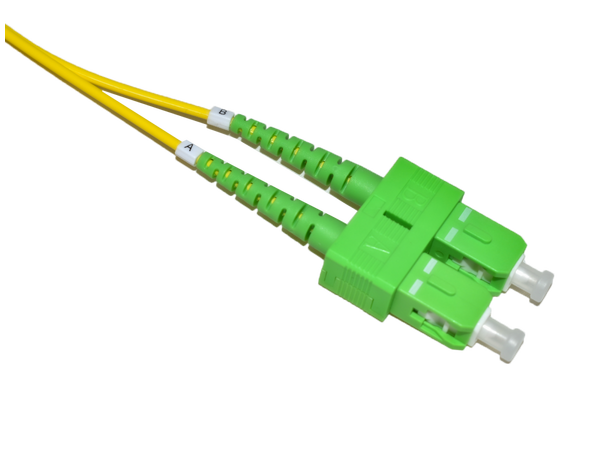

| Connector type 2 | SC |
|---|
| Polishing contact 1 | UPC |
|---|
| Polishing contact 2 | APC |
|---|
| Cable type | Duplex |
|---|
| Number of fibers | 2 |
|---|
| Core Diameter (um) | 9/125 Singlemode |
|---|
| Wave length (nm) | 1310/1550nm |
|---|
Extended Specifications
| Maximum bend (mm) | 20 |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Optical Return Loss (dB) | APC=65dB ; UPC=55dB |
|---|
| Halogenfree | Yes |
|---|
| Oil resistant | No |
|---|
| Fire retardant version | Yes |
|---|
| Cable Diameter (mm) | 2 |
|---|
| Certifications | CE, RoHS |
|---|
| Insertion Loss (dB) | < 0.3dB |
|---|
| Operating Temperature | -40ºC ~ +75ºC |
|---|
| Storage Temperature | -40ºC ~ +75ºC |
|---|
| Fire properties | IEC 60332-1-2, IEC 60754-1 , IEC 61034, IEC-60332-3-24 |
|---|
| Bending radius (mm) | 20 |
|---|
| Tensile loads (N) | 150 |
|---|
