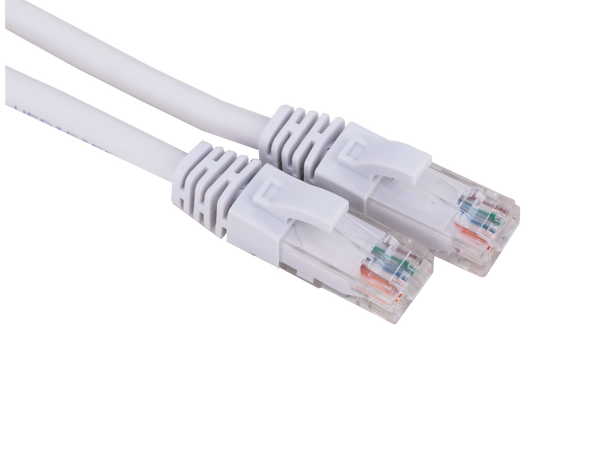

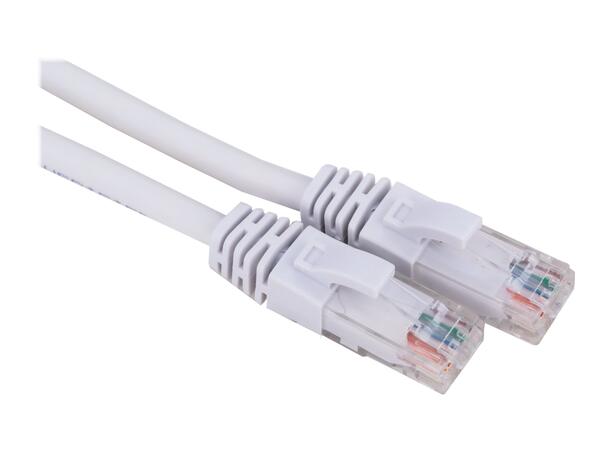

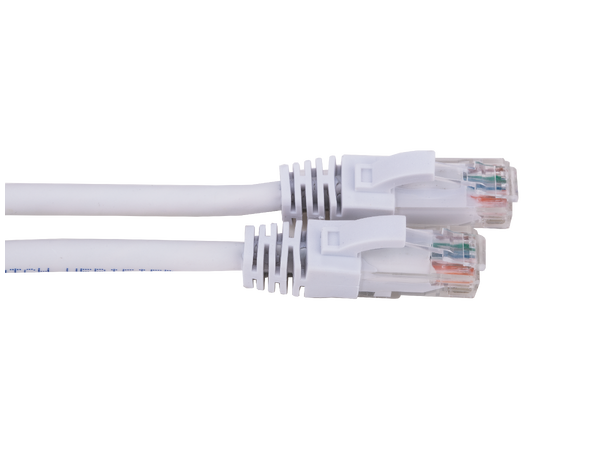

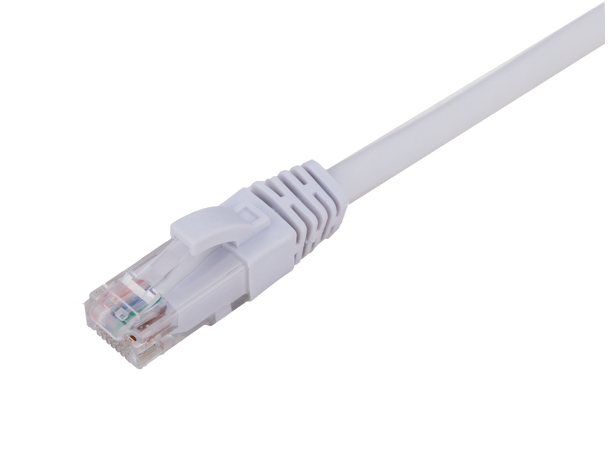

LinkIT U/UTP Patch Cat.6 White 5m
LSZH AWG 24 Snagless Halogenfree
Network cable for home, small and medium-sized businesses
- Can handle 1Gbps speed
- 250MHz bandwidth
- 10Gbps over shorter distances
- Gold-plated solid cast RJ45 connectors
- For Gigabit Networks
Technical documentation
Network cable for home, small and medium-sized businesses. Cat.6 cables are used in installations where transmission speed requirements do not exceed 1Gbps, and do not change in the future. Can handle 1Gbps speed and 250MHz bandwidth (10Gbps over shorter distances).
Main Specifications
| Length (m) | 5 |
|---|
| Cable type | U/UTP |
|---|
| Bandwidth | 1000Mbps |
|---|
| Color | White |
|---|
| Category | Cat.6 |
|---|
| Brand | LinkIT |
|---|
| Conductor material | Copper |
|---|
| Connector type 1 | RJ-45 male (8P8C) |
|---|
| Connector type 2 | RJ-45 male (8P8C) |
|---|
| Cable shielding | U/UTP – unshielded/unshielded twisted pairs |
|---|
| Conductor design | Stranded |
|---|
Extended Specifications
| Anti-kink sleeve | 6.2mm |
|---|
| Cable fire class | Eca |
|---|
| Directional | No |
|---|
| AWG wire size | 24 |
|---|
| Transmission speed | 2400Mbps |
|---|
| Frequency (Mhz) | 500 |
|---|
| Cable structure | 4 x 2 AWG 24/7 Twisted pair |
|---|
| Locking type | Snagless |
|---|
| NVP value | 69% |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Pin Assignment | 568B-568B |
|---|
| Halogenfree | Yes |
|---|
| Oil resistant | No |
|---|
| Fire retardant version | Yes |
|---|
| Connector contact plating | 50µin gold plated |
|---|
| Certifications | CE |
|---|
| EAN | 7090033559042 |
|---|
