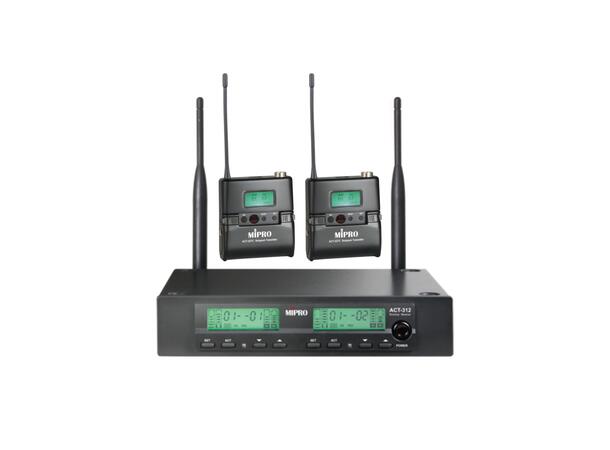

Mipro ACT-312/ACT-32TC x 2 8A-D (822~832MHZ)

• EIA standard metal chassis equipped with a green backlit LCD screen and electronic buttons on the front panel. The LCD screen will automatically turn bright to identify “Working” or “Standby” mode.
• The most reliable 24 MHz narrowband high dynamic range receiving circuit greatly decreases intermodulation distortion and increases interference-free compatible channels.
• Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
• MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
• There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose 8 working channels from 961 available frequencies.
• Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
• Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
• External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
• All are designed and made in Taiwan to ensure high quality and value.

ACT-312 1/2U Dual-Channel Receiver
Features
- EIA standard metal chassis equipped with a green backlit LCD
screen and electronic buttons on the front panel. The LCD screen will
automatically turn bright when receiving a signal to identify “Working”
and “Standby” mode.
- The most reliable 24 MHz narrowband high dynamic range receiving
circuit greatly decreases intermodulation distortion and increases
interference-free compatible channels.
- Industry’s first "PiloTone & NoiseLock" circuits and the RF
interference warning indicator for proper adjustments of the SQ level
to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s
frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies.
The user-defined group allows users to choose 8 working channels
from 961 available frequencies.
- Each channel has separate audio output with 3 switchable levels and
presets the output level equals the sensitivity of the microphone
capsule at 0 dB. All is to ensure the microphone operates within
proper sensitivity and dynamic range, free from distortion.
- Designed and made in Taiwan ensures high quality and value.

Specifications
Chassis EIA-Standard 19" 1/2U metal chassis
Frequency Range UHF 480 ~ 934 MHz (country dependent)
Bandwidth 24 MHz
Receiving Mode Diversity receiving
Sensitivity 10 dBµV @ S/N > 80 dB
Frequency Response 50 Hz ~ 18 kHz
Dynamic Range > 106 dBA
Audio Output Balanced: +16dB / 0dB/ -6dB; Unbalanced: +10dB / 0dB/ -6dB
Antenna Detachable. 50O TNC female connector provides bias for the antenna systems.
Power Supply External 100~240V AC switching power supply
Dimensions 210 × 44 × 165 mm (W×H×D)
Weight Approx. 0.9 kg
Note Refer to the actual product in the event of product discrepancy.
