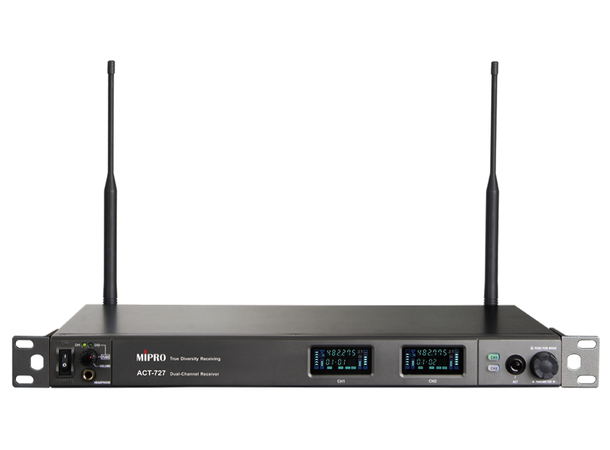

ACT-727 UHF Analog Wideband Dual-Channel Receiver

• EIA standard metal chassis, with a newly designed VFD screen, monitor headphone jack, a rotary control knob and buttons equipped on the front panel. The VFD screen will automatically turn bright to identify “Working” or “Standby” mode.
• Exclusive 72 MHz wideband circuit increases interference-free compatible channels.
• Advanced true diversity receiving circuit ensures long-distance and stable reception without signal dropout.
• Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
• MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
• There are 7 preset groups with a total of 224 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 2,881 available frequencies.
• Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
• Optional Dante digital network interface for digital audio output.
• Optional MIPRO Wireless Console computer monitoring software offers frequency analysis and configuration, along with monitoring of all channels and interference signals in the environment.
• Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
• External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
• Pairs with ACT-700H handheld and ACT-700T bodypack transmitter.
• All are designed and made in Taiwan to ensure high quality and value.

Model   ACT-727
Name   UHF Analog Wideband Dual-Channel Receiver
Channel   Dual
Chassis   EIA standard full-rack (19") metal chassis
Monitor Output  Monitor headphone jack with volume Control
Network Interface Dante (Optional)
Display Color   VFD
Frequency Range  UHF 480 – 934 MHz (country dependent)
Bandwidth  72 MHz
Receiving Mode  True diversity
Sensitivity  6 dBµV @ S/N > 80 dB
Frequency Response 50 Hz – 18 kHz
Dynamic Range  > 111 dBA
Audio Output  Balanced: +16 dB / 0 dB / -6 dB, Unbalanced: +10 dB / 0 dB / -6 dB
PC Interface  USB interface. MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels.    (Sold separately)
Antenna   Detachable. 50 O TNC female connector provides bias for the MIPRO antenna systems
Power Supply  DC 12 – 15 V. External AC 100 – 240 V switching power supply
Dimensions  420 × 44 × 219 mm (W × H × D)
Weight   Approx. 2.1 kg
