Multibrackets Pro takfeste MBC1UX2 dual

600x400, 100 Kg, 58-155cm, 2 x 40-65"

Varenr: 117331
Alt. varenr: 7350073733453
BeskrivelseEkstern InfoTeknisk infoTilbehørAlternativer
Beskrivelse

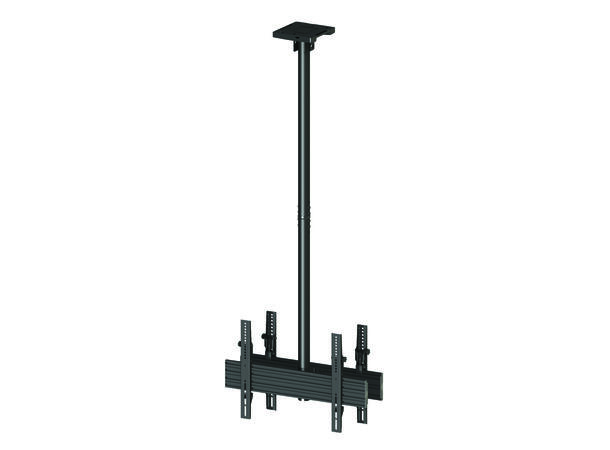

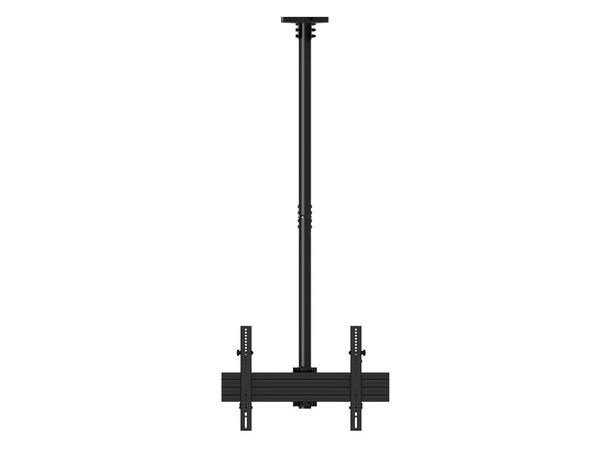

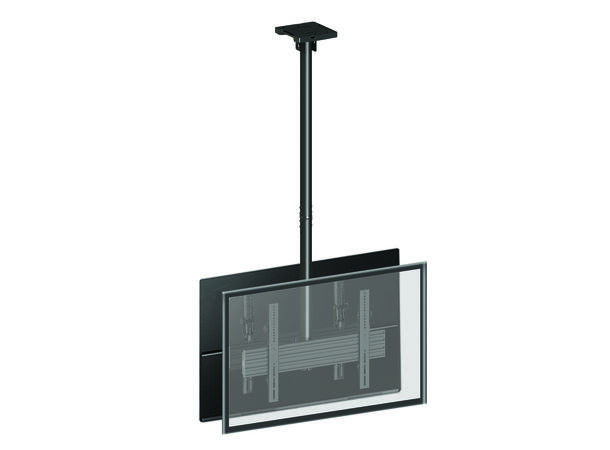

M Ceiling Mount Pro MBC1UX2 - Ceiling mount for LCD display, steel, 1.5m length, 2 screens, dual side, tilt arms, VESA Max 600x400 - screen size: 40"-65" - black
Multibrackets Pro Series M Ceiling Mount Pro MBC1UX2 is our innovative - ready to be installed Dual Side-Display Ceiling Mount.

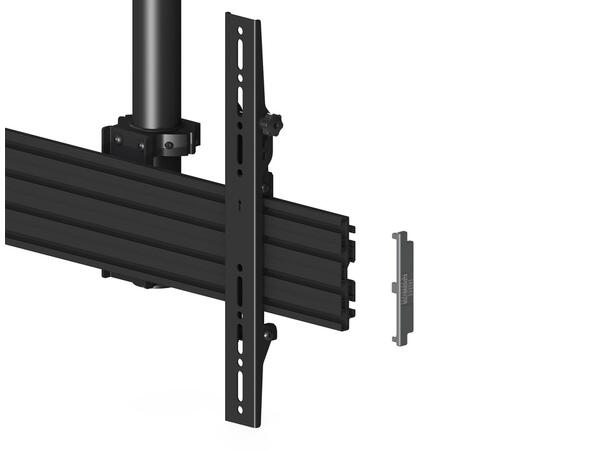

The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC1UX2 is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.



Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.

Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.

Highlights
  • A professional, flexible and modular product
  • Includes VESA adapters for compatibility up to VESA 600x400

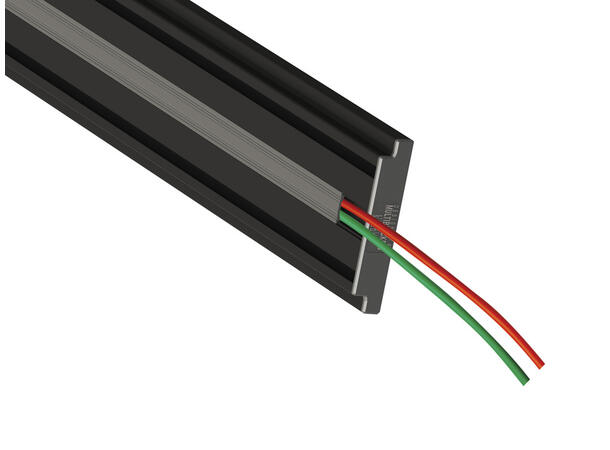

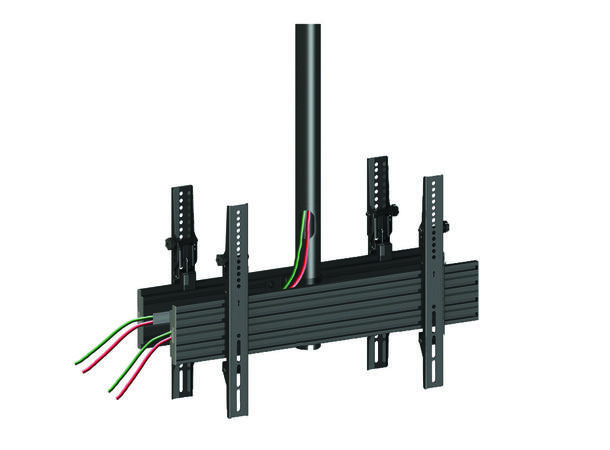

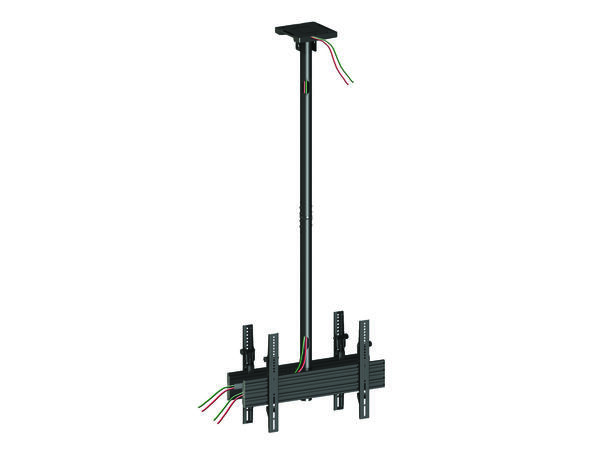

  • Integrated cable management throughout the entire solution
  • Power click install for an easy, fast and safe installation

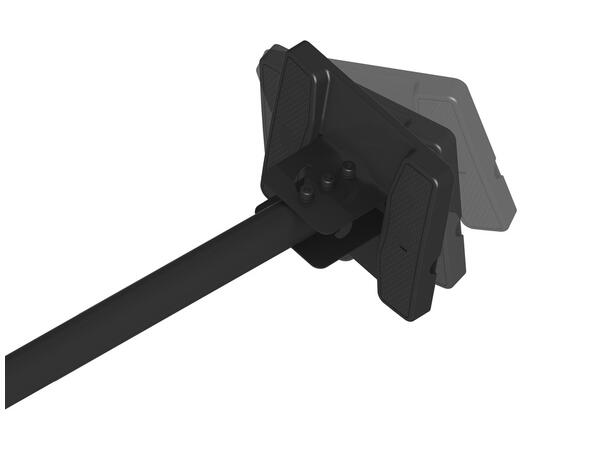

  • Ceiling plate included
  • Portrait or landscape position of screen possible
  • Hardware kit included


Selected models are TÜV approved.
MB Pro Series is design protected by Multibrackets
Click here to reach Multibrackets Pro Series overview page.

SPECIFICATION
M Ceiling Mount Pro MBC1UX2
Article No:7 350 073 733 453
For screen size:40”-65"
Type:Dual MBC1UX2
Universal & VESA standard:Adjustable from 100x100 to 600x400 max
Optional VESA 800x600
Material:Steel, Aluminium
Color:Black
Surface Finish:Powder coating/Anodic Oxidation
Weight:11 kg
Measurements69x178x20 cm
Max Load:50 kg per screen
TUV approved at 30 kg per screen
Pillar length:Min: 580mm to Max: 1550 mm
from ceiling to VESA plate center
Extension pipes: 1.5m  (800mm*2pcs) included
Tilt:Yes, 0~15°
Swivel:Yes, 360°
Rotate:Yes, ±4°
Cable Management:Yes
Options:Extension pipes : 0.8m, 1.5m, 3.0m
Certifications:CE
Warranty:5 years
Retail Package Specification
Package Parcels:1 pcs
Package Measurements:83.1 x 23.3 x 18.8 cm
Package Weight:13.00 kg
