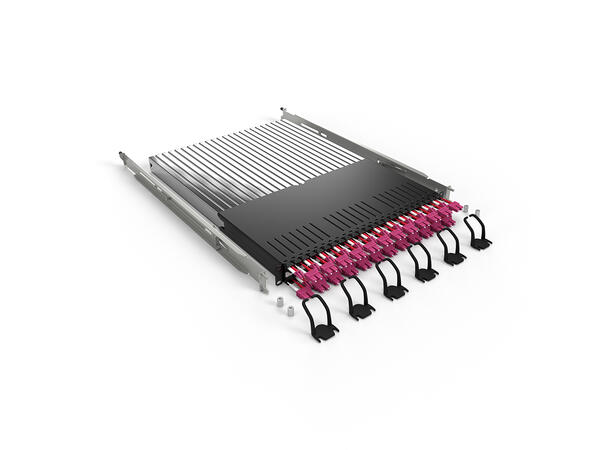

PATCHBOX® is the most innovative cabling system for network racks ever. The PATCHBOX® PLUS+ with OM4 cables consists of a Frame, Mounting  rails, the Patchcatch – our 0RU cable manager – and 24 Cable Cassettes with retractable fiber cables inside. The cables are 1.8m long and cover up to 30RU – ideal for larger cabinets. You can decide between OM4 and OS2.  The PATCHBOX® is the most modern cabling system for network cabinets. It makes conventional cable guides and patch cables simply look old. Thousands of satisfied customers worldwide rely on this patented innovation to make their IT more efficient, faster and more economical.

• 24 x Patchbox Plus+ OM4 Cassettes with LC-SC connector
• 1 x Patchbox Plus+ Frame
• 6 x Patchcatch
• 2 x Adjustable mouting rails including hex nuts
• 2 x DIN A5 tear off ID-labels (96 Labels)

OM4 Cable

·        OM4 RBS 50µ/125µ, LSZH, Erika Violet, Multi-Mode, RoHS compliant

CONNECTOR

·        LC-Duplex – SC-Duplex

CABLE LENGTH

• 1.8m covers 30RU

FRAME

• RAL9005 powder coated steel

CASSETTE PROFILES

• Stainless steel - Laser welded

MOUNTING RAILS

·        Stainless steel, variable from 500mm to 850mm

PLASTIC PARTS

• Polyoxymethylene POM

OPERATING TEMP

• -20°C - +70°C

AMBIENT HUMIDITY NON CONDENSING

• 10% - 90%

GROSS WEIGHT

• 11,86 KG

PACKAGING DIMENSIONS

• 760mm x 590mm x 50mm (WxDxH)
