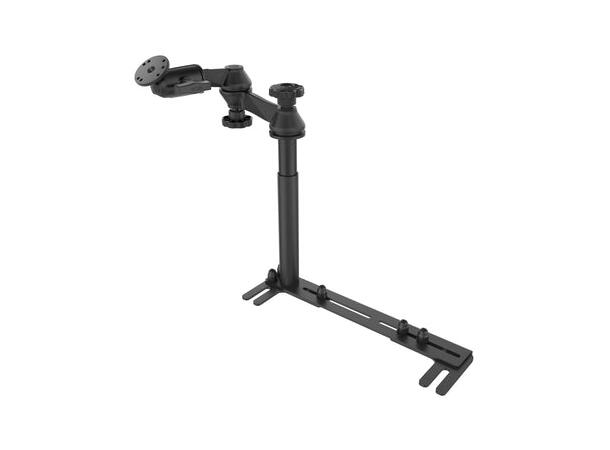

RAM Mount Universal Vehicle Floor Mount

No-Drill

FEATURES

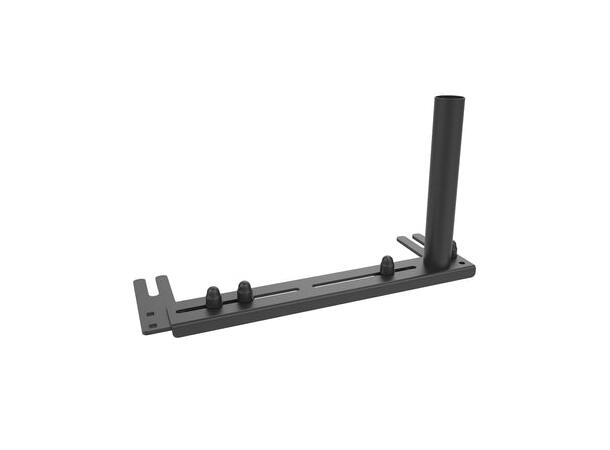

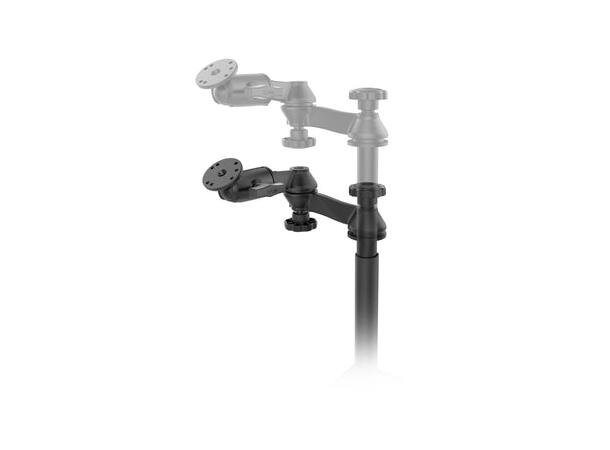

• RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

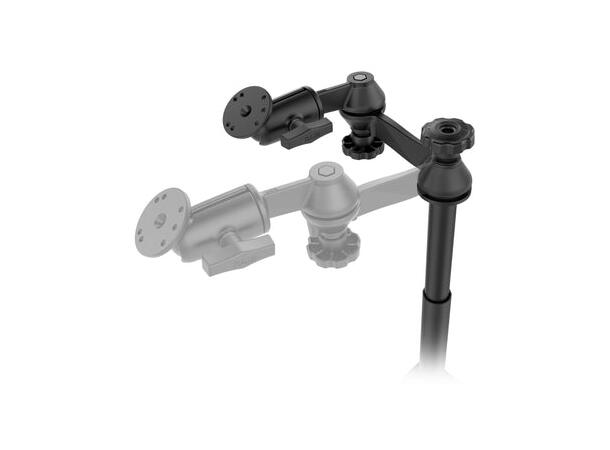

• Dual articulating swing arm allows for ideal device placement; compatible with a variety of tablet and laptop holders
• Made of powder-coated steel and marine-grade aluminum
• Backed by a lifetime warranty

This RAM® No-Drill™ mounting system installs quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12” to 18”. Dual swing arms provide articulation and 12” of reach for passenger and driver access to the mounted device. The round ball base attached to the end of the swing arm supports a variety of tablet and laptop holders, while RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation.

HARDWARE INCLUDED

Assembly Hardware
Stabilizer Foot

PRODUCT DIMENSIONS

Height Range: 15.75" - 21.5"

HOLE PATTERN

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Seat Bolt Distance: 9"-18.875" center to center

PLATE SIZE

2.5" Diameter

BALL SIZE

C Size (1.5")

WEIGHT CAPACITY

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

MATERIALS

Powder coated steel
Marine grade-aluminum

PACKAGING TYPE

Box

WEIGHT

12.0 lb
