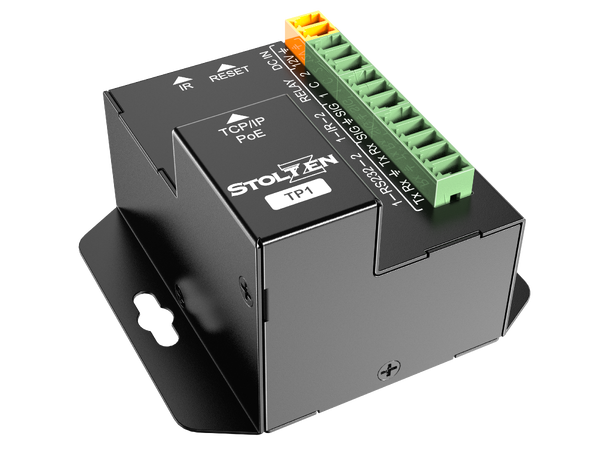

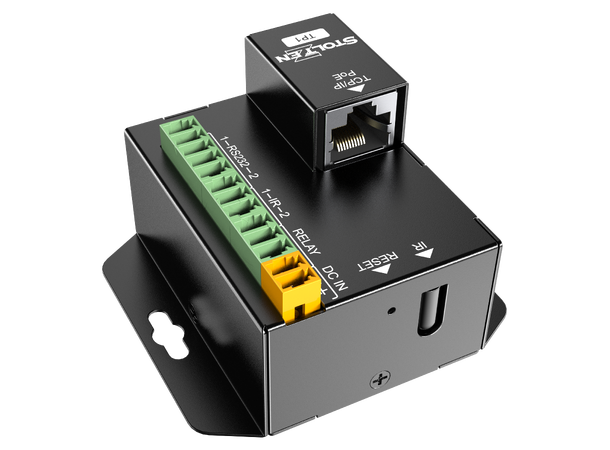

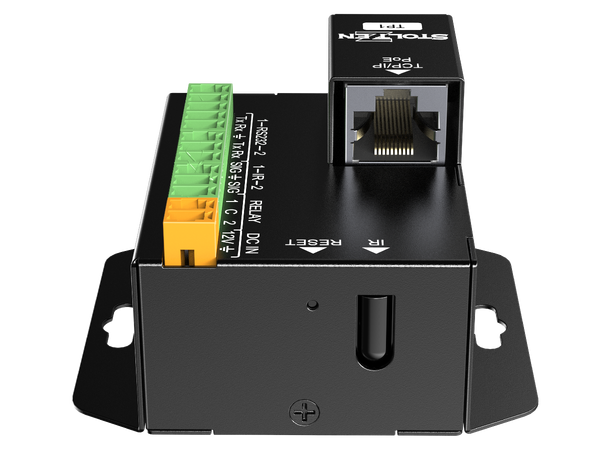

Stoltzen TP1 Control Processor
Versatile and Cost-Effective Control Solution
The Stoltzen TP1 Control Processor is a highly flexible and affordable solution for managing your devices. Designed with robust control capabilities, the TP1 is well-suited for a variety of applications, making it an essential tool for any modern control setup.
Key Features
- Comprehensive Control: Supports Relay, IR, RS232, and TCP/IP control, providing flexibility across different device types and control methods.
- Intuitive GUI: Easily controlled and configured via a web-based GUI, offering a user-friendly interface for seamless setup.
- PoE Support: Can be powered via Power over Ethernet (PoE), allowing for convenient installation and reducing the need for additional power cables.
- Dual Relays: Equipped with two built-in relays capable of handling up to 30W (1A), perfect for controlling devices like HDBT extenders or lighting systems.
- WebGUI for End Users: A separate WebGUI is available for end users with visible buttons, offering ease of operation.
- Compact Design: Its small form factor makes the TP1 easy to integrate into various environments, from meeting rooms to classrooms.
- Flexible Integration: Can be paired with the Stoltzen Poseidon T10 Android Panel for a complete solution that simplifies control and management.
Specifications
| Program Port | TCP/IP |
| Output Ports | 2 x RS232, 2 x IR, 2 x Relay |
| Output Connector | 2 x 3-Pin Pluggable Terminal Blocks |
| 2 x 2-Pin Pluggable Terminal Blocks |
| Baud Rate | 9600, 19200, 38400, 57600, 115200 |
| Power Consumption | 2.5W (Maximum) |
| Operating Temperature | 0 ~ +40°C |
| Storage Temperature | -10 ~ +55°C |
| Relative Humidity | 10% ~ 90% |
| Power Supply | 12VDC or PoE |
| Net Weight | 150g |
| Dimensions (L x W x H) | 49mm x 65mm x 43.5mm |
Package Contents
- 1 x TP1 Control Processor
- 2 x 3-Pin Pluggable Terminal Blocks
- 1 x 2-Pin Pluggable Terminal Block
- 1 x 5-Pin Pluggable Terminal Block
- 1 x User Manual
