Stoltzen SHE630 HDBaseT™ WallPlate Kit
The

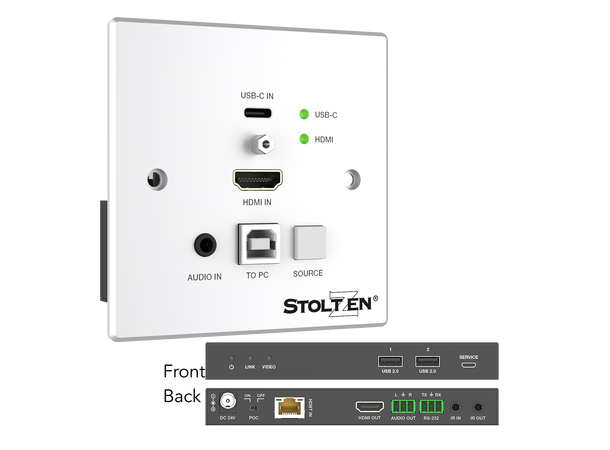

Stoltzen SHE630 HDBaseT™ WallPlate Kit is a powerful, high-performance solution that combines the versatility of the
SHE630 Receiver and the ease of use provided by the
SHE630WP Wallplate Transmitter. This kit is designed to deliver seamless 4K video, audio, and USB signal transmission for a variety of professional applications. By utilizing HDBaseT™ technology, the kit ensures reliable, long-distance connectivity, simplified installation, and enhanced user experience in environments such as conference rooms, classrooms, and meeting spaces.
Key Features
Power over Cable (PoC): Both the SHE630 Receiver and SHE630WP Wallplate Transmitter support PoC, making installation easier by allowing both units to be powered from the same end. This reduces the need for extra power cables and ensures a cleaner setup.
Automatic Switching: The SHE630WP Wallplate Transmitter includes a built-in 2x1 automatic switch, allowing users to easily switch between HDMI + USB and USB-C inputs. This feature ensures effortless transitions between devices without manual intervention.
USB Transport: The SHE630 Receiver supports the transmission of USB signals, which is ideal for video conferencing, collaboration, and interactive applications, making this kit perfect for modern workspaces.
4K Resolution: Both the receiver and wallplate transmitter support 4K resolution at 60Hz (4:4:4), providing sharp, high-quality video for various content types.

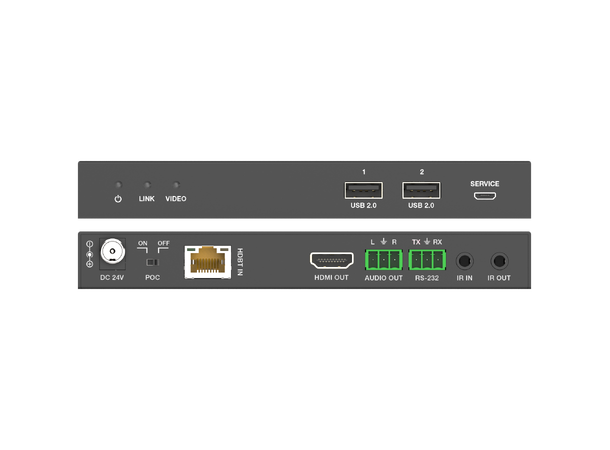

Versatile Installation: The SHE630WP Wallplate Transmitter is designed to fit seamlessly into standard wall outlets, offering a sleek, professional installation. The SHE630 Receiver is compact and easy to install, fitting into raceways and on-wall boxes.
HDBaseT™ Technology: Built on the robust HDBaseT™ platform, the system ensures high-quality signal transmission over long distances with minimal signal degradation.
Specifications
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | HDMI: 18Gbps; USB-C: 5.4Gbps |
| HDMI Video Resolution | Up to 4K2K@60Hz (4:4:4) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12 bit |
| HDMI Audio Formats | LPCM 7.1CH, Dolby True HD, DTS-HD Master (Full format) |
| Analog Audio Embedding | 48KHz |
| Transmission Distance | LRM mode: 492ft/150m (4K30/1080P) |
| STD-HBT mode: 328ft/100m (4K60/4K30/1080P) |
| ESD Protection | ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Input (SHE630WP) | 1 x HDMI IN [Type A] |
| 1 x USB-C IN [USB Type-C] |
| Input (SHE630) | 1 x HDBT IN [RJ45] |
| Output (SHE630) | 1 x HDMI OUT [Type A, 19-pin female] |
| 2 x USB 2.0 [USB Type A] |
| 1 x AUDIO OUT [3pin-3.81mm Phoenix connector] |
| Control | 1 x RS-232 [3pin-3.81mm Phoenix connector] |
| 1 x IR IN [3pin-3.81mm Phoenix connector] |
| 1 x IR OUT [2pin-3.81mm Phoenix connector] |
| 1 x SERVICE [Micro USB] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (SHE630) | 157.2mm [W] x 88mm[D] x 20mm [H] |
| Dimensions (SHE630WP) | Standard Wallplate Size (Compatible with standard outlets) |
| Weight (SHE630) | 377g |
| Weight (SHE630WP) | Approx. 200g |
| Power Supply (SHE630WP) | 24V/1A (Bidirectional PoC support) |
| Power Supply (SHE630) | 24V/1A (Bidirectional PoC support) |
| Power Consumption (SHE630) | 12.48W (Max) |
| Operating Temperature | 32°F to 104°F / 0°C to 40°C |
| Storage Temperature | -4°F to 140°F / -20°C to 60°C |
| Relative Humidity | 20% to 90% RH (Non-condensing) |
